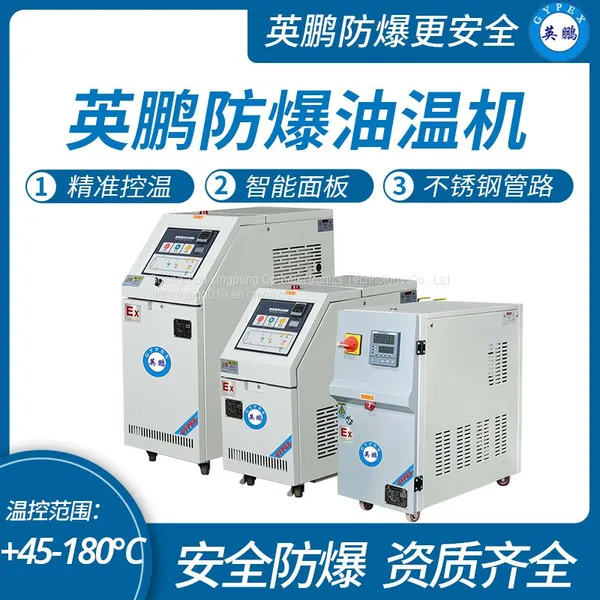

Help CenterGuangzhou Yingpeng Petrochemical Explosion-proof Oil Temperature Machine, 180 ° C Explosion-proof Mold Temperature Machine
Related Products
-
Guangzhou Yingpeng Food Processing Explosion Proof Semi-automatic Can Sealing Machine, Yingpeng Explosion Proof Capping MachineNegotiableMOQ: 1 Box -
Guangzhou Yingpeng Hand Pushing Sweeper Cleaning Efficiency: 4000m ³_ hNegotiableMOQ: 1 Box
-
Guangzhou Yingpeng Hand Pushed Floor Washing MachineNegotiableMOQ: 1 Box
-
Guangzhou Yingpeng Hand Pushed Floor Scrubber Single Brush Cleaning Efficiency: 1800 ㎡/hNegotiableMOQ: 1 Box
-
Guangzhou Yingpeng Hand Pushed Floor Scrubber Double Brush Cleaning Efficiency: 2200 ㎡/hNegotiableMOQ: 1 Box
Explosion proof mold temperature machine | Explosion proof injection mold temperature machine | Explosion proof oil mold temperature machine Detailed parameters:
Please contact sales for inquiries
Brand: Yingpeng
Model: BFM-9EX-150BYM
Temperature control range: inlet water temperature+45 ℃ -180 ℃
Temperature control accuracy: PID+1 ℃
Power supply: AC3 Å 380/400V 50HZ (3Phase+Earth)
Heat transfer medium: heat transfer oil
Cooling method: indirect cooling
Heating power: 6KW;
Motor power: 0.75/0.37KW
Circulation pump flow rate: 150L/min;
Circulation pump head: 30/22m
Alarm function: Reverse phase/oil shortage/overload/abnormal heating alarm
Maximum power consumption: 10.5KW
Cooling water piping: 1/2 inch
Circulating water piping: 3/8 * 2 Inch
Circulating water piping: DN10 * 2
Reference size: 630 * 325 * 745 MM
Explosion proof sign: ExdeIICT4Gb
Brand: Yingpeng
Model: BFM-10EX-150BYM
Temperature control range: inlet water temperature+45 ℃ -180 ℃
Temperature control accuracy: PID+1 ℃
Power supply: AC3 Å 380/400V 50HZ (3Phase+Earth)
Heat transfer medium: heat transfer oil
Cooling method: indirect cooling
Heating power: 9KW;
Motor power: 0.75KW
Circulation pump flow rate: 85/30 L/min;
Circulating pump head: 15/17 m
Alarm function: Reverse phase/oil shortage/overload/abnormal heating alarm
Maximum power consumption: 9.75 KW
Cooling water piping: 1/2 inch
Circulating water piping: 3/8 * 4 Inch
Circulating water piping: DN10 * 2
Size: 630 * 325 * 745 MM
Explosion proof sign: ExdeIICT4Gb
Brand: Yingpeng
Model: BFM-11EX-150BYM
Temperature control range: inlet water temperature+45 ℃ -180 ℃
Temperature control accuracy: PID+1 ℃
Power supply: AC3 Å 380/400V 50HZ (3Phase+Earth)
Heat transfer medium: heat transfer oil
Cooling method: indirect cooling
Heating power: 9KW;
Motor power: 1.5KW
Circulation pump flow rate: 120L/min;
Circulating pump head: 17m
Alarm function: Reverse phase/oil shortage/overload/abnormal heating alarm
Maximum power consumption: 10.5KW
Cooling water piping: 1/2 inch
Circulating water piping: 3/8 * 4 Inch
Reference size: 630 * 325 * 745 MM
Explosion proof sign: ExdeIICT4Gb
Brand: Yingpeng
Model: BFM-12EX-150BYM
Temperature control range: inlet water temperature+45 ℃ -180 ℃
Temperature control accuracy: PID+1 ℃
Power supply: AC3 Å 380/400V 50HZ (3Phase+Earth)
Heat transfer medium: heat transfer oil
Cooling method: indirect cooling
Heating power: 12KW;
Motor power: 2.2KW
Circulation pump flow rate: 150L/min;
Circulating pump head: 20m
Alarm function: Reverse phase/oil shortage/overload/abnormal heating alarm
Maximum power consumption: 10.5KW
Cooling water piping: 1/2 inch
Circulating water piping: 1/2 * 4 Inch
Reference size: 900 * 420 * 850 MM
Explosion proof sign: ExdeIICT4Gb
Yingpeng Model Temperature Machine Standard Oil Temperature Machine Series
brand
Yingpeng
model
BFM-9EX-150BYM
BFM-10EX-150BYM
BFM-11EX-150BYM
BFM-12EX-150BYM
Temperature range
45°C- 180°C
Temp Accuracy
PID+1°C
Power Supply
380V 50HZ
Heat transfer coal body
Heat transfer oil
Cooling method
Indirect cooling
Heating capacity
six
nine
nine
twelve
Motor power
0.75+0.37
zero point seven five
one point five
two point two
Circulation pump flow rate
30/22
85/30
one hundred and twenty
one hundred and fifty
Circulating pump head
17/13
15/17
seventeen
twenty
Maximum power consumption
six point three seven
nine point seven five
ten point five
fourteen point two
Alarm function
Reverse phase/oil shortage/overload/abnormal heating alarm
Cooling water piping
1/2
Circulating water configuration
3/8*2
3/8*4
3/8*4
1/2*4
Reference dimensions
620*325* 745
620*325*745
620*325*745
900*420*850
Explosion proof sign
Ex d e IIC T4 Gb
In order to better serve users in various industries, specialized heating and temperature control equipment is designed for different industries, such as rubber (plastic) machinery specialized mold temperature machines, cable extrusion specialized mold temperature machines, post press film coating specialized mold temperature machines, magnesium/aluminum alloy die-casting specialized mold temperature machines, wheel dedicated temperature control systems, RHCM high gloss seamless injection molding systems, electroplating bath temperature control machines, laminated plate oil heaters, 400 ℃ ultra-high temperature thermal oil furnaces, EX explosion-proof electric heating thermal oil furnaces Gas/oil thermal oil furnace, chemical/pharmaceutical reaction kettle temperature control TCU, semiconductor high-precision temperature control machine, high and low temperature detection dedicated machine, etc.
The main products include: standard oil temperature machine, standard water temperature machine, 180 ℃ high-temperature water temperature machine
The mold temperature machine adopts imported electronic components, adhering to Japanese precision and German technology, stable and reliable, with high cost-effectiveness, making it the best choice for users.
The mold temperature control machine is mainly used for heating, cooling, and temperature control of injection molding machines, which can accelerate the preheating speed of the mold in the early stage and ensure the cooling requirements in the later injection molding production process. This model uses heat transfer oil as the heat transfer medium, with high thermal efficiency and good stability. Adopting temperature sensors and controllers imported from Germany, the temperature control accuracy can reach ± 1 ℃. The heating power is equipped with 6-45KW, and the most suitable mold temperature control machine can be customized for customers based on their injection molding production process characteristics.
Mold temperature control machine | Circulation temperature control machine | Oil circulation temperature control machine Features:
1. Maximum operating temperature 180 ℃
2. Pipeline explosion-proof device
3. Blowing and oil return function (optional)
4. Return oil temperature display table
5. Heating power switching function
