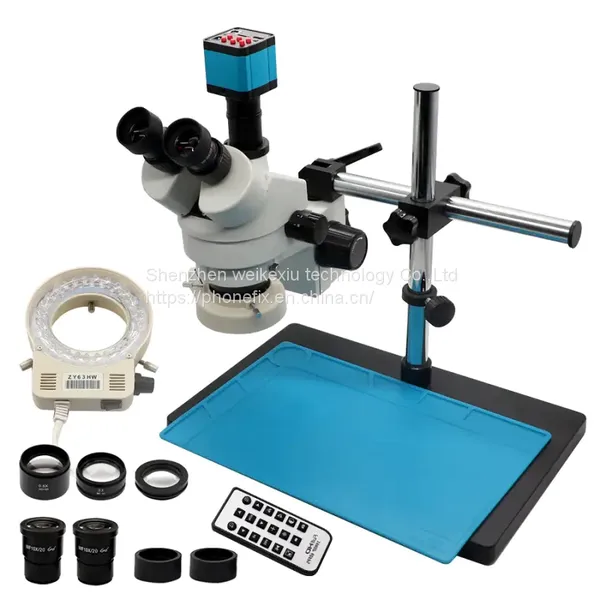

Help Center3.5X-90X Focus Trinocular Stereo Light Microscope Camera For Mobile Phone Repair
Related Products
-
AIXUN T3A JC Intelligent Soldering Station With T12/T245/936 Series Handle Soldering Iron TipsUS$ 90 - 125MOQ: 5 Pieces -
SUGON T26D Original Lead-free Soldering Station 2S Rapid Heating Soldering IronUS$ 135 - 155MOQ: 5 Pieces
-
WL Intelligent Tin Planting Layered Temperature Heating Table Soldering Station for Phone RepairUS$ 50 - 55MOQ: 5 Pieces
-
I2C 2SEN NANO Lead Free Soldering Station With 3pcs C245 Soldering Tips For Phone BGA PCB Welding RepairUS$ 95 - 250MOQ: 5 Pieces
-
SUGON T3602 JBC C115 C210 Double Station Welding Rework Station Soldering Station For Phone PCB SMD IC RepairUS$ 340 - 390MOQ: 5 Pieces
options:
- 3.5X-90X Trinocular Stereo Microscope with 38MP HDMI Camera Set
1x 7-45X Trinocular Stereo Microscope (with 10X/20 eyepieces).
1x 360°C rotatable stand with metal base and silicone pad.
1x 1X adapter.
1x 38MP HDMI camera
1x 56 LED lights.
1x 1.0X objective lens.
1x 0.5X objective lens.
1x 2.0X objective lens.
- 7-45X Trinocular Stereo Microscope Set
1x 7-45X Trinocular Stereo Microscope (with 10X/20 eyepieces).
1x 360°C rotatable stand with metal base and silicone pad.
1x 56 LED lights.
Specification:
Microscope lens: 45 tilt 360-degree rotating trinocular confocal head.
Eyepiece: 30mm super wide-angle high eye point WF10X/20mm.
Objective lens: 0.35-9.0X.
Auxiliary objective lens (optional): SZM 0.5X, SZM 2.0X.
Zoom range: 6.4:1.
Diopter adjustment: 5dp.
Interpupillary Distance: 2-3/16" - 2-15/16" (55-75mm).
Field of View: 2-1/2" (65mm) diameter.
Working Distance: 4 inches (100 mm)
Outrigger Bracket (Optional): 20" Dual Arms (Overall Length: 30"), 17" High Post, 10-1/4"x8-1/4"x2-0" Solid Cast Steel Base.
7-45X Trinocular Stereo Microscope Features:
1. 7X-45X large zoom ratio.
2. Trinocular design for high-quality photo, USB PC and CCD video imaging.
3. Erect stereoscopic sharp images over a super wide field of view.
4. Precise alignment ensures long time viewing without fatigue.
5. Clear original true color images.
6. 45 tilt trinocular super large field of view high eye point eyepiece.
7. 30mm super wide-angle eyepiece (see the picture above for the difference).
8. Two eyepiece tubes with adjustable diopters.
9. The interpupillary distance is adjustable.
10. All optical glass components.
11. Precision frosted glass lens.
12. 4" (100mm) large working distance.
13. Multifunctional cantilever support, covering a large working area.
14. Double-arm design, which can realize 3 degrees of freedom.
15. The microscope head can be placed in any direction.
16. Heavy Duty - Durable cast steel bracket coated with stain resistant enamel.
17. Sturdy solid cast steel base.
18. Includes 30mm super wide-angle eyepiece.
19. 165 mm and 30 mm working distance auxiliary objectives.
