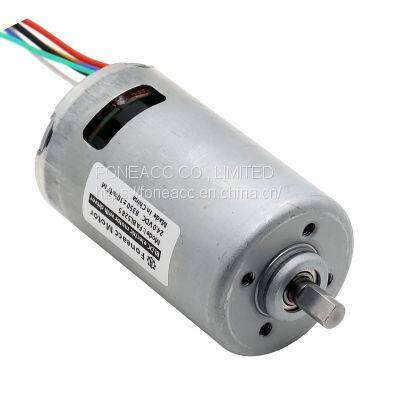

BL5285i BL5285 B5285M OD Φ 52mm mini inrunner BLDC Brushless DC Motor with internal integrated driver with hall sensor
- 10000 Piece / Pieces per Month
- T/T L/C Credit Card PayPal Cash
- 35 days
You May Like
-
GM25-370 25GA370 OD Φ 25 mm small spur gearhead dc electric motor 12v dc motor specifications datasheet
-
PG42-BL4275 12V 18V 24V high torque low rpm outer diameter 42mm compact epicyclic planetary geared brushless bldc motor
-
ig42 12V 24V planetary gear dc drive motor datasheet
-
PG22-370 12V 24V Φ 22mm diameter mini planetary geared 370 motor
-
BL4260 BL4260i B4260M OD Diameter 42mm Small Inner Rotor Brushless DC BLDC Motor
-
BL2838i B2838M 28mm inner rotor bldc brushless dc motor
Product Details
Brand Name | Foneacc Motor | Place of Origin | China | |
Model Number | BL5285I | Type | Micro Motor | |
Certification | ROHS | Torque | 1200g.cm | |
Usage | Other, Electric Bicycle, Fan, Home Appliance, electric valve, electrical actuators | Construction | Permanent Magnet | |
Efficiency | IE 2 | Voltage(V) | DC 6V, 9V, 12V, 15V, 18V, 24V, 30V | |
Output Power | 20W, 25W, 30W, 40W, 50W, 60W, 70W, 80W, 90W, 100W, 120W, 150W | Continuous Current(A) | 0.8A~10A | |
Speed(RPM) | 2000RPM ~ 8000RPM | Commutation | Brushless |
Product Description
Main features:
| - Model Number: BL5285I
| - Shell Stator Size : Φ52* L 85 mm(Φ 2.05 inch * 3.35 inch)
| - Shaft : Φ8.0mm[0.315 inch], screw lead, D shape, etc.
| - Shaft length free customization
| - Rated Output Power: 25W - 160W
| - Rated Voltage: DC 6V - 24V
| - Rated Torque: up to 1800 gf-cm(176.4 mNm)
| - Rotor: inner rotor with Nd2Fe14B strong magnet
| - Motor Structure: 3 phases, 9 slots, 12 poles, 3 hall sensors
| - Driver(Optional): built-in driver PCB with MCU
| - Construction: Permanent Magnet
| - Commutation: Brushless-PWM drive
| - Manufacturer: Foneacc Motor
| - MOQ: 500 pcs
| - PWM pulse wide speed range | - Clockwise/counter-clockwise rotation
| - FG speed feedback signal
| - Low EMC | - Low noise
| - Long lifespan: up to 20000hrs
| - Over-current protection | - Over-voltage protection | - Under-voltage protection
BL5285I dc motor data examples:
Model | Voltage | No load | At maximum efficiency | Stall | |||||||
Range | Nominal | Speed | Current | Speed | Current | Torque | P.out | Eff. | Torque | Current | |
V | R/min | A | R/min | A | gf-cm | W | % | gf-cm | A | ||
BL5285I-V1 | 8~18 | 12 | 3,000 | 0.29 | 2,629 | 2.056 | 756.5 | 20.42 | 82.8 | 6,120 | 14.58 |
BL5285I-V2 | 8~26 | 18 | 4,500 | 0.35 | 3,927 | 2.4 | 921.0 | 37.13 | 86.0 | 7,228 | 16.40 |
BL5285I-V3 | 8~26 | 24 | 6,000 | 0.42 | 5,299 | 3.173 | 1186.5 | 64.55 | 84.8 | 10,150 | 23.97 |
BL5285I-V4 | 8~26 | 24 | 7,000 | 0.65 | 6,107 | 4.445 | 1339.5 | 83.98 | 78.7 | 10,500 | 30.40 |
BL5285I-V5 | 8~26 | 24 | 8,000 | 0.74 | 6,830 | 4.32 | 1171.5 | 82.15 | 79.2 | 8,000 | 25.14 |
Dimensions and performance curves of BL5285I dc motor for reference:
Download BL5285I DC motor datasheet for clear view:
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
