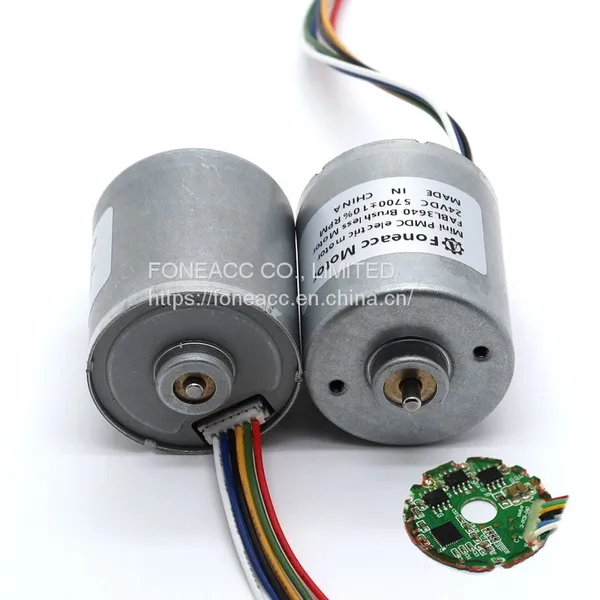

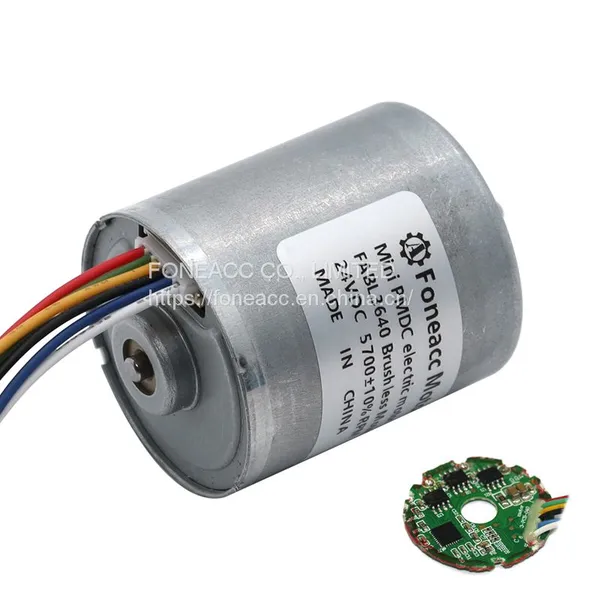

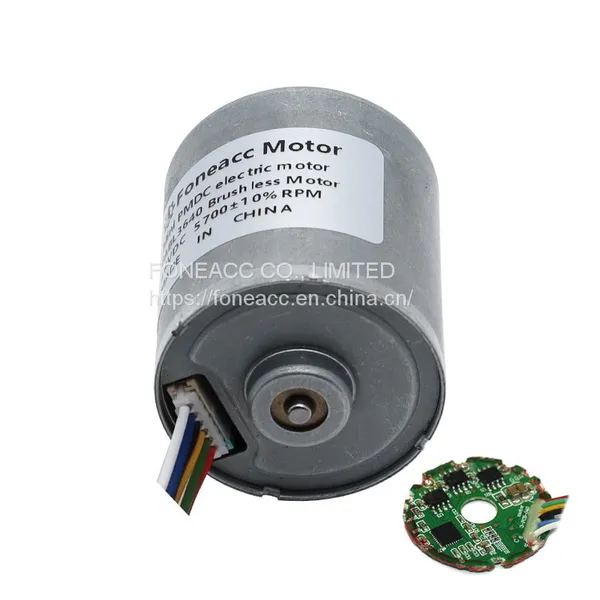

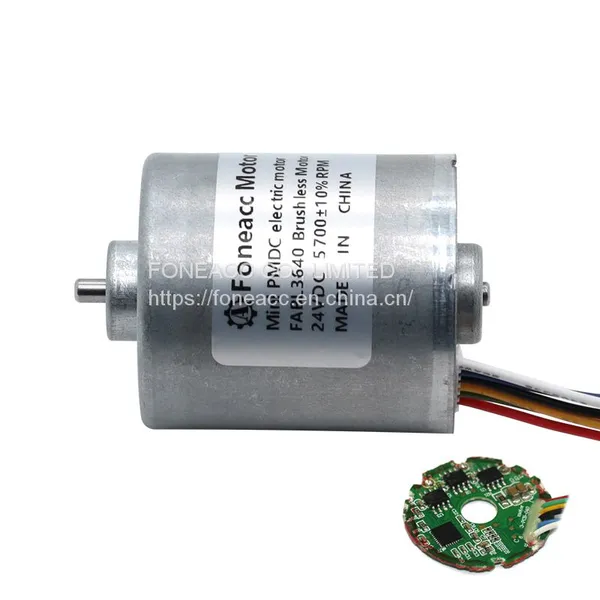

BL3640i BL3640 B3640M OD Φ 36 mm Inner Rotor Small BLDC Brushless DC Motor
US$ 0.1 - 1
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Brand Name:
Foneacc Motor
Place of Origin:
China
Model Number:
BL3640I
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
35 days
Related Products
-
BL4275i BL4275 B4275M 12V 18V 24V High Performance and Long Lifetime OD Φ 42mm Small Bldc Brushless DC MotorUS$ 0.1 - 1MOQ: 500 Pieces -
BL2832I OD 28mm Custom 6V 9V 12v 24v High Speed Low Noise Mini Brushless dc Electric Motor With Built-in Driver BoardUS$ 0.1 - 1MOQ: 500 Pieces
-
BL2832I BL2832 OD Φ 28mm Custom 6V 9V 12v 24v High Speed Low Noise Mini Brushless dc Electric Motor With Built-in Driver BoardUS$ 0.1 - 1MOQ: 500 Pieces
-
BL3626i BL3626 B3626M OD Φ 36mm Mini Inrunner BLDC Brushless DC Motor With Internal Integrated Driver With Hall SensorUS$ 0.1 - 1MOQ: 500 Pieces
-
BL3630i BL3630 B3630M OD Φ 36mm Mini Inrunner BLDC Brushless DC Motor With Internal Integrated Driver With Hall SensorUS$ 0.1 - 1MOQ: 500 Pieces
Brand Name
Foneacc Motor
Place of Origin
China
Model Number
BL3640I
Type
Micro Motor
Certification
ROHS
Torque
288.2g.cm
Usage
Other, Electric Bicycle, Fan, Home Appliance, electric valve, electrical actuators
Construction
Permanent Magnet
Efficiency
IE 2
Voltage(V)
DC 6V, 9V, 12V, 15V, 18V, 24V, 30V
Output Power
10W, 15W, 20.2W, 25W, 30W
Continuous Current(A)
0.8A~3A
Speed(RPM)
3000RPM ~ 10000RPM
Commutation
Brushless
BL3640i B3640M 36mm inner rotor Small BLDC brushless dc motor
Main features:| - Model Number: BL3640I
| - Shell Stator Size : Φ 36* L 40 mm(Φ 1.42 inch * 1.57 inch)
| - Shaft : Φ 3.175mm[0.125 inch](or Φ 4.0mm[0.157 inch]), screw lead, D shape, etc.
| - Shaft length free customization
| - Rated Output Power: 2W - 30W
| - Rated Voltage: DC 6V - 24V
| - Rated Torque: up to 320 gf-cm(31.36 mNm)
| - Rotor: Inner rotor with Nd2Fe14B strong magnet
| - Motor Structure: 3 phases, 9 slots, 6/12 poles, 3 hall sensors
| - Driver(Optional): built-in driver PCB with MCU
| - Construction: Permanent Magnet
| - Commutation: Brushless-PWM drive
| - Manufacturer: Foneacc Motor
| - MOQ: 500 pcs
|- Size: Φ 36* L 40 mm(Φ 1.42 inch * 1.57 inch)
|- Built-in driver (built-in driver controller with hall sensor)
|- PWM pulse wide speed range
|- Clockwise/counter-clockwise rotation
|- FG speed feedback signal
|- Low EMC |- Low noise
|- Long lifespan: up to 20000hrs
|- Over-current protection |- Over-voltage protection |- Under-voltage protection
BL3640I dc motor data examples:
Dimensions and performance curves of BL3640I dc motor for reference:
Main features:| - Model Number: BL3640I
| - Shell Stator Size : Φ 36* L 40 mm(Φ 1.42 inch * 1.57 inch)
| - Shaft : Φ 3.175mm[0.125 inch](or Φ 4.0mm[0.157 inch]), screw lead, D shape, etc.
| - Shaft length free customization
| - Rated Output Power: 2W - 30W
| - Rated Voltage: DC 6V - 24V
| - Rated Torque: up to 320 gf-cm(31.36 mNm)
| - Rotor: Inner rotor with Nd2Fe14B strong magnet
| - Motor Structure: 3 phases, 9 slots, 6/12 poles, 3 hall sensors
| - Driver(Optional): built-in driver PCB with MCU
| - Construction: Permanent Magnet
| - Commutation: Brushless-PWM drive
| - Manufacturer: Foneacc Motor
| - MOQ: 500 pcs
|- Size: Φ 36* L 40 mm(Φ 1.42 inch * 1.57 inch)
|- Built-in driver (built-in driver controller with hall sensor)
|- PWM pulse wide speed range
|- Clockwise/counter-clockwise rotation
|- FG speed feedback signal
|- Low EMC |- Low noise
|- Long lifespan: up to 20000hrs
|- Over-current protection |- Over-voltage protection |- Under-voltage protection
BL3640I dc motor data examples:
| Model | Voltage | No load | At maximum efficiency | Stall | |||||||
| Range | Nominal | Speed | Current | Speed | Current | Torque | P.out | Eff. | Torque | Current | |
| V | R/min | A | R/min | A | gf-cm | W | % | gf-cm | A | ||
| BL3640I-V1 | 8~26V | 12 | 4,769 | 0.16 | 4,006 | 0.818 | 146.7 | 6.03 | 61.5 | 917 | 4.27 |
| BL3640I-V2 | 8~26V | 18 | 7,068 | 0.19 | 6,008 | 1.071 | 211.93 | 13.07 | 67.8 | 1,412 | 6.07 |
| BL3640I-V3 | 8~26V | 24 | 8,235 | 0.247 | 6,835 | 1.186 | 288.2 | 20.22 | 71.1 | 1,695 | 5.77 |
| B3640M-S01 | 8~26V | 12 | 2,360 | 0.14 | 1,830 | 0.69 | 260.1 | 4.89 | 59.0 | 1,776 | 2.50 |
| B3640M-S02 | 8~26V | 12 | 7,930 | 0.56 | 6,800 | 1.89 | 200.124 | 13.97 | 61.6 | 849 | 3.00 |
| B3640M-S03 | 8~26V | 24 | 6,140 | 0.26 | 5,190 | 0.85 | 239.7 | 12.77 | 62.6 | 2,336 | 2.50 |
| B3640M-S04 | 8~26V | 24 | 7,046 | 0.28 | 5,156 | 1.8 | 571.2 | 30.24 | 70.0 | 2,130 | 2.50 |
Dimensions and performance curves of BL3640I dc motor for reference:
