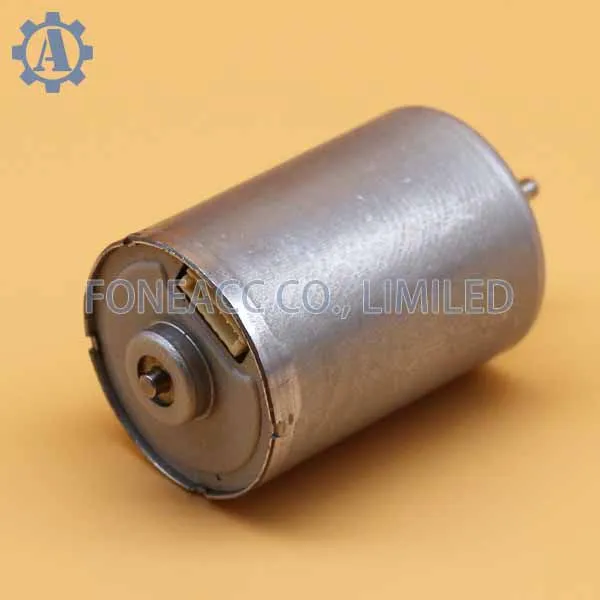

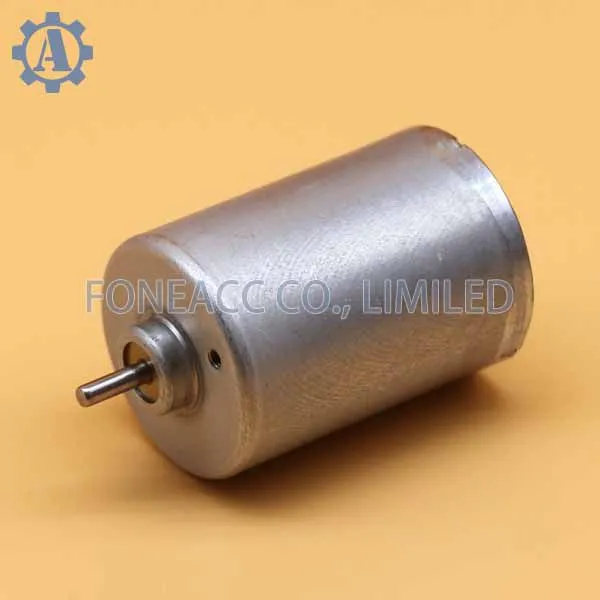

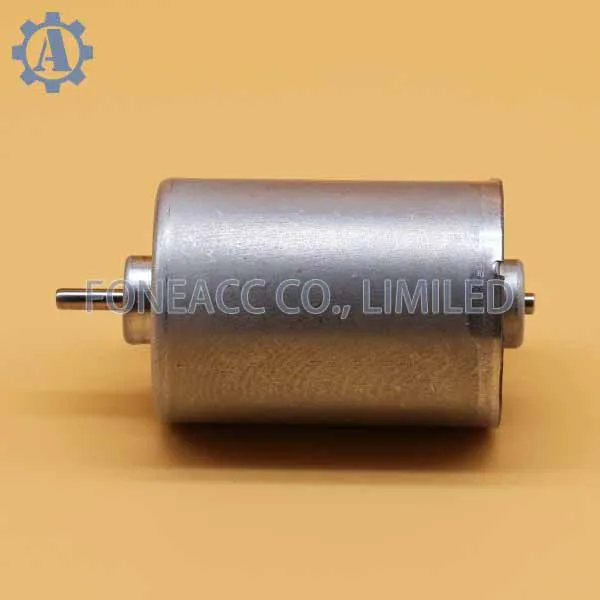

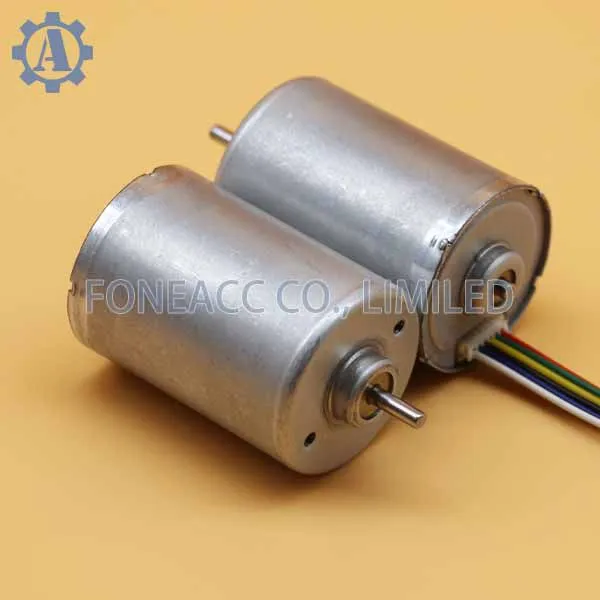

Help CenterBL3650i BL3650 B3650M OD Φ 36mm Mini Inrunner BLDC Brushless DC Motor With Internal Integrated Driver With Hall Sensor
Related Products
-
BL2418i BL2418 B2418M OD Φ 24mm Mini Inrunner BLDC Brushless DC Motor With Internal Integrated Driver With Hall SensorUS$ 0.1 - 1MOQ: 500 Pieces -
BL2430i BL2430 B2430M OD Φ 24mm Mini Inrunner BLDC Brushless DC Motor With Internal Integrated Driver With Hall SensorUS$ 0.1 - 1MOQ: 500 Pieces
-
BL2838i BL2838 B2838M OD Φ 28mm Mini Inrunner BLDC Brushless DC Motor With Internal Integrated Driver With Hall SensorUS$ 0.1 - 1MOQ: 500 Pieces
-
BL2847i BL2847 B2847M OD Φ 28mm Mini Inrunner BLDC Brushless DC Motor With Internal Integrated Driver With Hall SensorUS$ 0.1 - 1MOQ: 500 Pieces
-
BL4235i BL4235 B4235M OD Φ 42mm Mini Inrunner BLDC Brushless DC Motor With Internal Integrated Driver With Hall SensorUS$ 0.1 - 1MOQ: 500 Pieces
Main features:
| - Model Number: BL3650I
| - Shell Stator Size : Φ36* L 50 mm(Φ 1.42 inch * 1.97 inch)
| - Shaft : Φ3.175mm[0.125 inch](or 4.0mm[0.157 inch]), screw lead, D shape, etc.
| - Shaft length free customization
| - Rated Output Power: 5W - 40W
| - Rated Voltage: DC 6V - 24V
| - Rated Torque: up to 500 gf-cm(49 mNm)
| - Rotor: inner rotor with Nd2Fe14B strong magnet
| - Motor Structure: 3 phases, 9 slots, 12 poles, 3 hall sensors

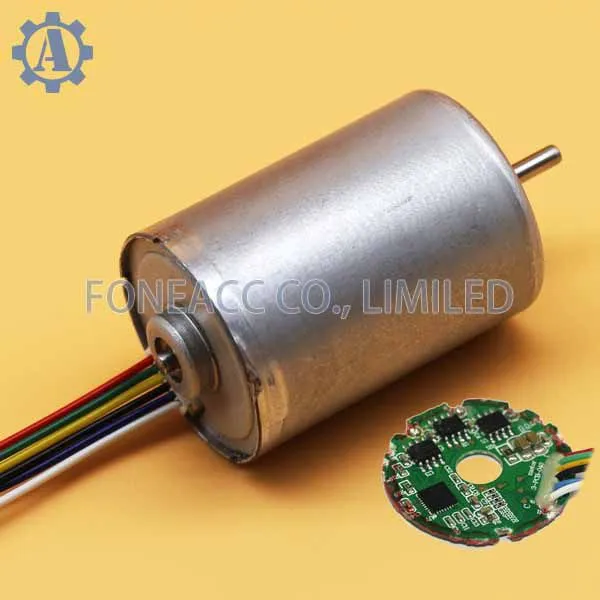

| - Driver(Optional): built-in driver PCB with MCU
| - Construction: Permanent Magnet
| - Commutation: Brushless-PWM drive
| - Manufacturer: Foneacc Motor
| - MOQ: 500 pcs
| - PWM pulse wide speed range
| - Clockwise/counter-clockwise rotation
| - FG speed feedback signal
| - Low EMC | - Low noise
| - Long lifespan: up to 20000hrs
| - Over-current protection | - Over-voltage protection | - Under-voltage protection
BL3650I dc motor data examples:
| Model | Voltage | No load | At maximum efficiency | Stall | |||||||
| Range | Nominal | Speed | Current | Speed | Current | Torque | P.out | Eff. | Torque | Current | |
| V | R/min | A | R/min | A | gf-cm | W | % | gf-cm | A | ||
| BL3650I-V1 | 8~16V | 12 | 4,304 | 0.28 | 3,486 | 1.2 | 211.2 | 7.56 | 52.5 | 1,117 | 5.10 |
| BL3650I-V2 | 8~26V | 18 | 6,693 | 0.3 | 5,555 | 1.552 | 305.9 | 17.45 | 62.4 | 1,800 | 7.54 |
| BL3650I-V3 | 8~26V | 24 | 8,458 | 0.4 | 6,851 | 1.794 | 395.2 | 27.80 | 64.6 | 2,080 | 7.63 |
| B3650M-S01 | 8~26V | 12 | 5,300 | 0.46 | 4,600 | 1.53 | 239.794 | 11.32 | 61.7 | 794 | 2.50 |
| B3650M-S02 | 8~26V | 24 | 4,327 | 0.18 | 3,714 | 1.01 | 459.18 | 17.51 | 72.2 | 3,233 | 2.50 |
Dimensions and performance curves of BL3650I dc motor for reference:
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
