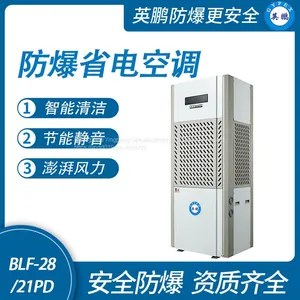

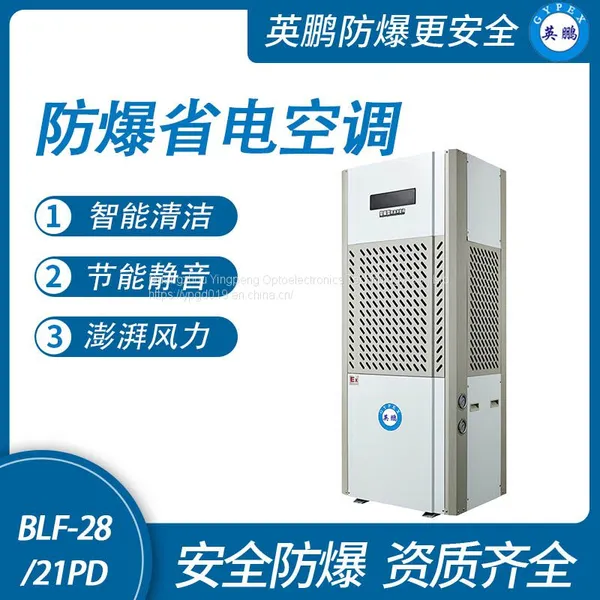

Guangzhou Yingpeng Explosion-proof Energy-saving Air Conditioner -28/21PD

Brand: Yingpeng

Model: BLF-28/21PD

Power supply: 380V 3N

Frequency: 50Hz

Nominal cooling capacity: 25KW

Circulating air output: 8000m ³/ h

Rated input power (W): 4.2KW

Rated current: 6.5A

Refrigerant/filling volume: R22/2800

Water flow rate: 4m ³/ h

Applicable area: 150-200 ㎡

Packaging size (mm): 765 × six hundred × 1770mm

Gross weight (kg): 187

Product advantages:

1. Low investment and high efficiency. The installation of the same area is 3/5 of the investment in central air conditioning

2. The air volume is large, and the air supply is far away. Fast ventilation speed and good cooling effect

3. Low power consumption, 40 to 50% more energy efficient than traditional air conditioners, and investment costs can generally be recovered from electricity bills within two years

4. Cooling and dehumidification function for places with humidity requirements

5. Strong cooling effect, with a temperature difference of 6-10 degrees at the inlet and outlet, and cold air circulation cooling

6. Convenient installation of the internal unit, PVC water pipe connection without copper pipe welding, copper pipe length limitations, and other issues

7. Intelligent control, using manual and remote control, mobile app to remotely control equipment on, off, cooling, air supply, fault alarm and other functions, improving efficiency

8. Convenient maintenance, indoor compressor maintenance, greatly avoiding the risk of outdoor high-altitude maintenance, convenient maintenance, and convenient filter cleaning

working principle:

The traditional air conditioning system adopts an air-cooled heat exchange mode with low efficiency, while the evaporative energy-saving air conditioning system utilizes a refrigerant heat exchange mode that combines water cooling as the main method and air cooling as an auxiliary. It more efficiently exchanges and transports the heat of the refrigerant, reduces the load on the compressor, improves the refrigeration efficiency, and thus increases the energy efficiency ratio to 5.3-5.8, achieving the effect of electricity saving

Product Features

1. Large air volume, far air supply, fast air change speed, and good cooling effect

2. Can be used in open or closed environments, breaking the limitations of traditional air conditioning

3. Convenient installation, overall cooling, post air supply, and central air supply

Applicable places: factory workshops, logistics warehouses, hardware, textiles, clothing, printing and dyeing, leather making, plastic processing, chemical industry, internet cafes, restaurants, bars, KTVs, supermarkets, computer rooms, kindergartens, station waiting halls, car 4S stores, gyms, hot pot shops, chess and card rooms, billiards halls, and other places.
