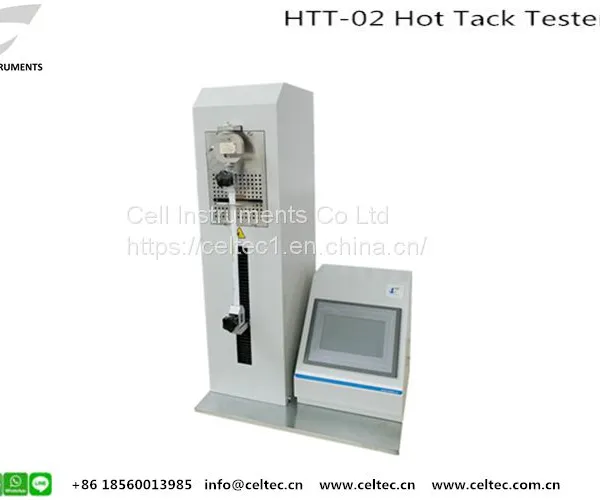

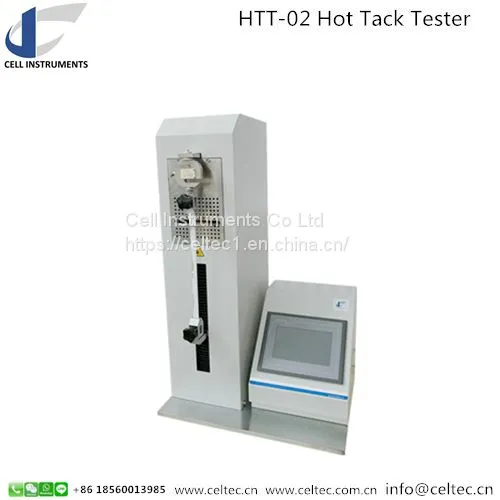

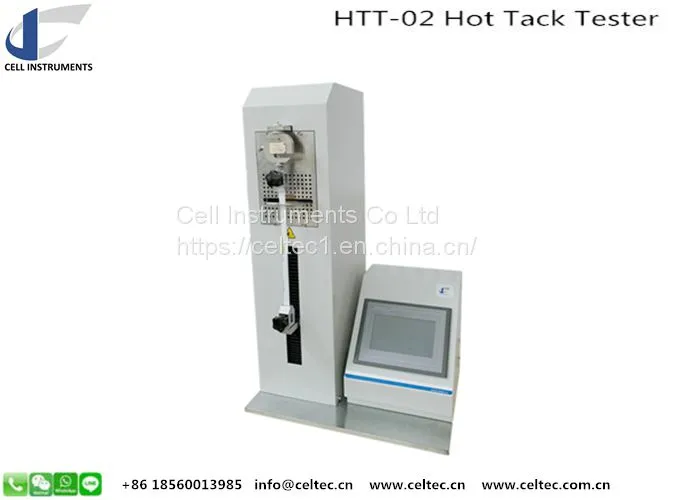

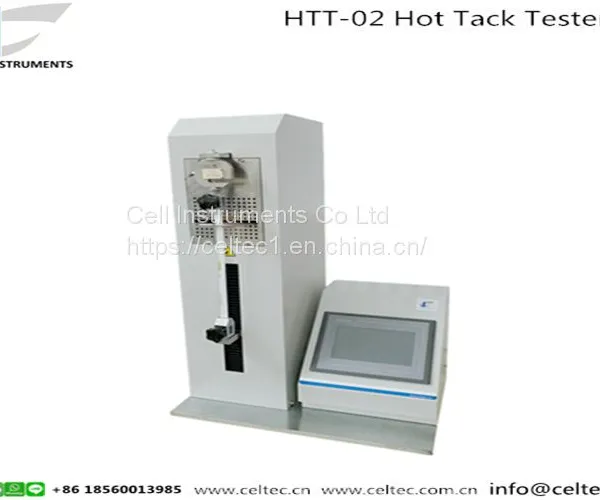

HTT-02 Celtec ASTM F1921 Hot Bond Tensile Tester

Application

HTT-01 Hot Tack Tester measures the strength of heat seals formed between thermoplastic surfaces immediately after the seal has been made and before it cools to room temperature. It also has functions of tensile and peeling.

Technical Features

1.    Hot tack, peeling and tensile test items are integrated in one instrument.

2.    Delta P.I.D. temperature controller used and PT100 temperature sensor

3.    7 inch TFT touching screen for easy operation

4.    PLC control unit inside

5.    Aluminum encapsulated sealing jaws for average heating

6.    Multi-group parameter saving

7.    Testing speed adjustable from 1~2000mm/min.

8.    Auto zeroing, overload and over travel protection

9.    RS 232 port and professional software(optional)

Standards

ASTM F1921, ASTM F2029
