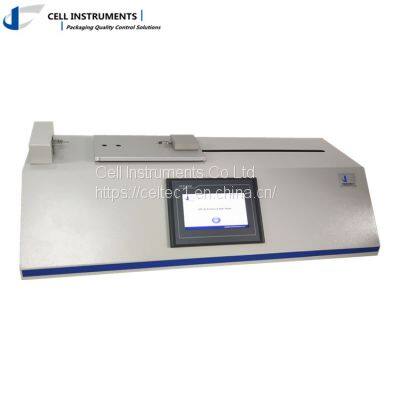

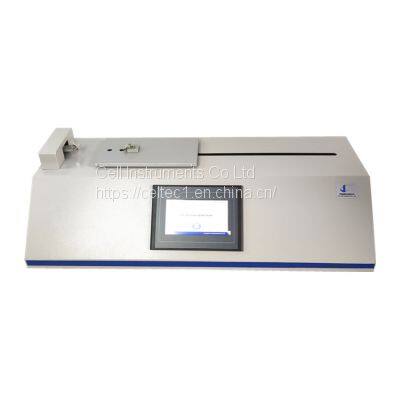

Celtec FPT-01 Material friction coefficient and peel strength testing machine

Application

 FPT-01 Friction and peel tester is a multi-purpose device used to measure both static and kinetic coefficient of friction of plastic films, sheets, rubber, paper and paper board, PP woven bags, fabrics, composite etc. It can also be used for delicate peeling force test of release paper, adhesive tape, medical adhesives, composite film, protective film, etc.

System Description

 FPT-01 Friction and peel tester has a fixed loadcell position, with a protection cover. A movable plane is installed firmly to ball lead screw. The sled is to put on sample sticking to the plane, which is then connected to loadcell, with a filament. When performing peeling test, as the force is small, the right sample clamp is stuck to plane, using double side type. Then a separation action is performed to peel the sample and force is recorded during the process.

Technical Features

It's a PLC controlled unit (industrial level stable) and HMI touch screen operated. Precision ball lead screw mechanism ensures good and steady speed and displacement control. It has two test system, which are coefficient of friction test and peeling force as well. For COF test, it has precious free speed setting, while for peeling, parameters of reducing initial and tail part that affects peeling result is considered

PLC control inside & HMI touch screen

High precision ball lead screw driving mechanism

Data auto statistics, result & curve real time display

Functions of static and kinetic COF, peeling

Multiple test standards complied

Dot matrix micro printer equipped

Professional peeling program

Main Parameters

 Force Range 5N, 10N, or 30N (or as required)

 Accuracy 0.5% F.S.

 Sled 200g (or as required)

 Stroke 500mm

 Speed 1~500mm/min

 Power AC 110~220V 50/60Hz

 Control PLC and human machine interface

 Data Output Screen, Microprinter, RS232 (optional)

Major Standards

 ISO 8295, ASTM D1894, TAPPI T816, ISO 8510-2, ASTM D4917, ASTM D3330, TAPPI T549
