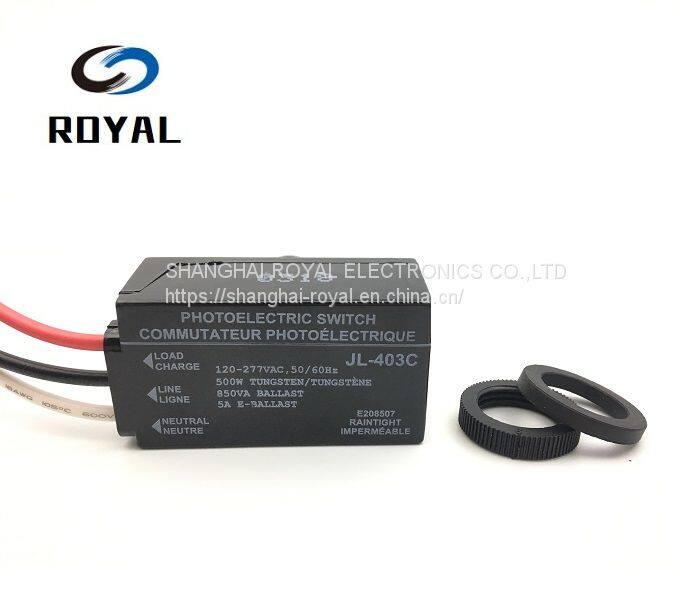

Help CenterPhotocell Control Sensor Switch Outdoor Light Controller JL-403C
Related Products
-
Swivel Photocell Control Sensor Switch Outdoor Light Controller JL-104US$ 2 - 3MOQ: 1000 Pieces -
Swivel Photocell UL Control Sensor Switch Outdoor Light Controller JL-104US$ 2 - 3MOQ: 1000 Pieces
-
Swivel Photocell UL Control Sensor Switch Outdoor Light Controller JL-404US$ 2 - 4MOQ: 1000 Pieces
-
UL773 Photoelectric Photocontrol Switch 3pin Socket ReceptacleUS$ 0.95 - 3MOQ: 1000 Pieces
-
NEMA Twist Lock Photoelectric Photocontrol Sensor Switch 3pin Socket ReceptacleUS$ 0.95 - 3MOQ: 1000 Pieces
Product Summary
The photoelectric switch JL-103 is applicable to control the street lighting, passage lighting and doorway lighting automatically in accordance with the ambient lighting level.
This product has been listed by UL Inc and is comply with the Standard for Non-industrial Photoelectric Switches for Lighting Control UL773A.
Technical Data
Model No. |
JL-103A |
JL-103B |
JL-103C |
JL-103D |
||||||
Rated Voltage |
120VAC |
240VAC |
208VAC |
277VAC |
||||||
Rated Frequency |
50/60Hz |
|||||||||
Rated Loading |
2000W |
TUNGSTEN |
||||||||
2000VA |
BALLAST |
|||||||||
Power consumption |
1.2W max. |
|||||||||
Operate Level |
10~20Lx |
On |
||||||||
30~60Lx |
Off |
|||||||||
Ambient Temperature |
-40℃ ~ +70℃ |
|||||||||
Related Humidity |
99%RH |
|||||||||
Overall Dimensions |
52.5(L) x 29(W) x 42(H)mm |
|||||||||
Leads Length |
180mm or Customer request (AWG#18) |
|||||||||
Disconnect power, remove junction box cover, place the SWITCH in knockout hole and fasten with locknut.
Wire according to the diagram in right hand.
Do not install the switch with the Photocell facing artificial or reflected light.
This will cause the unit to cycle on and off at night.
