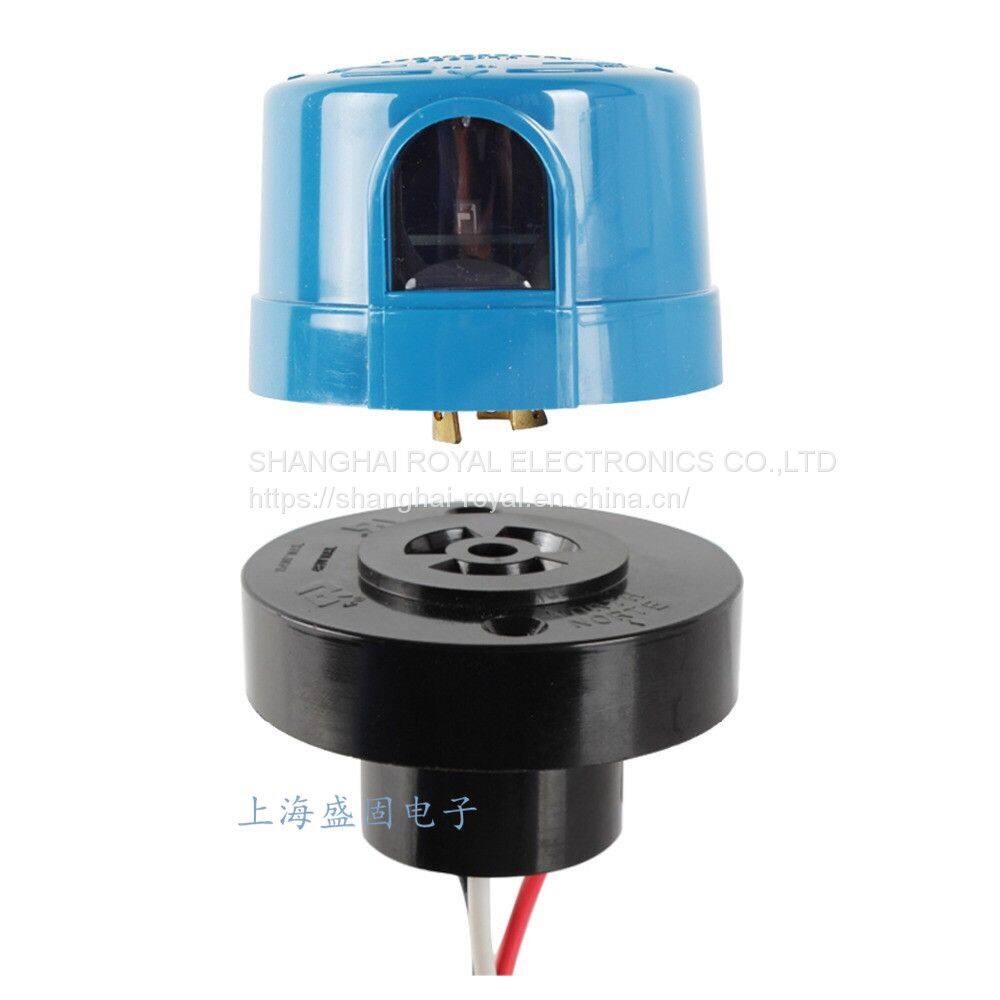

ANSI C136.10 NEMA 3pin Socket Receptacle Photocontrol Sensor Switch

ANSI C136.10 NEMA 3pin Socket Receptacle Photocontrol Sensor Switch thumbnail-1
ANSI C136.10 NEMA 3pin Socket Receptacle Photocontrol Sensor Switch thumbnail-2
ANSI C136.10 NEMA 3pin Socket Receptacle Photocontrol Sensor Switch thumbnail-3
ANSI C136.10 NEMA 3pin Socket Receptacle Photocontrol Sensor Switch thumbnail-4
ANSI C136.10 NEMA 3pin Socket Receptacle Photocontrol Sensor Switch thumbnail-5

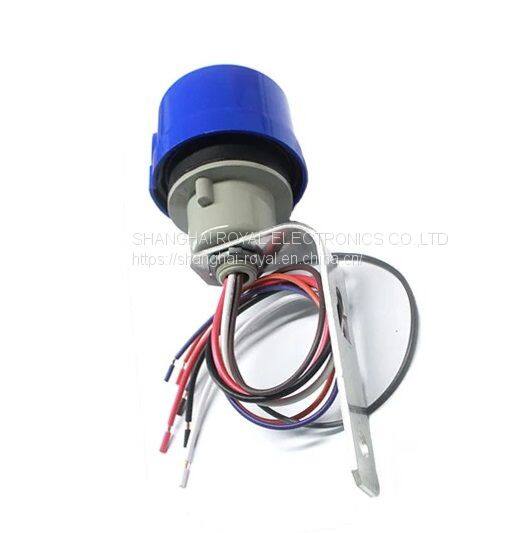

ANSI C136.10 NEMA 3pin Socket Receptacle Photocontrol Sensor Switch photo-1

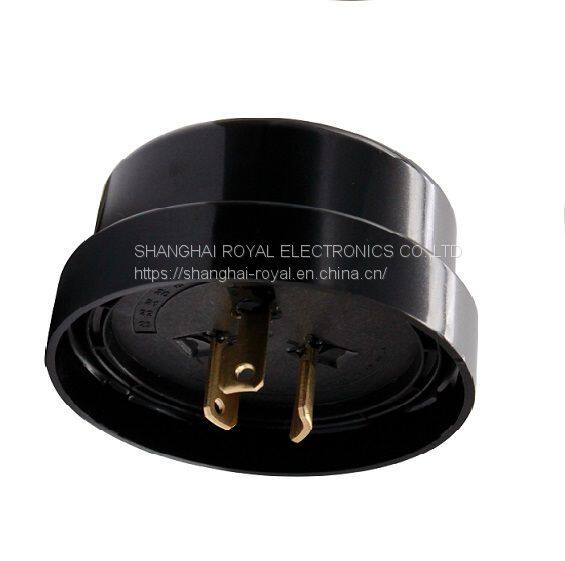

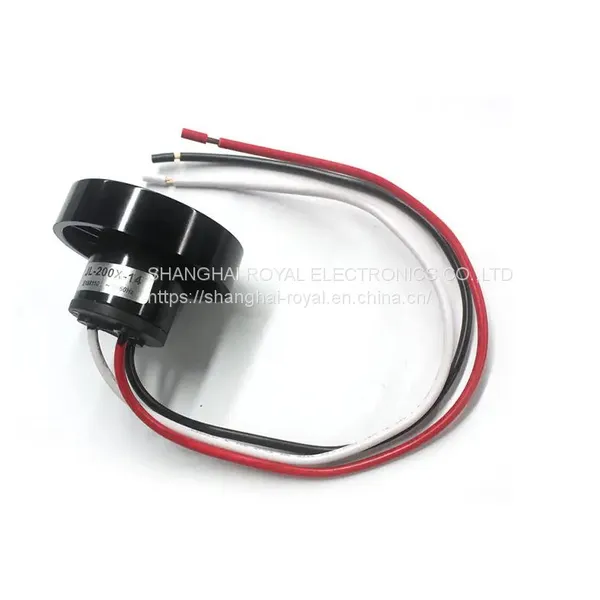

ANSI C136.10 NEMA 3pin Socket Receptacle Photocontrol Sensor Switch photo-2

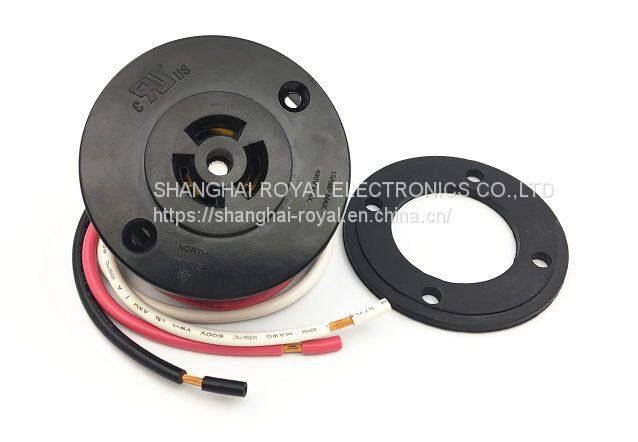

ANSI C136.10 NEMA 3pin Socket Receptacle Photocontrol Sensor Switch photo-3

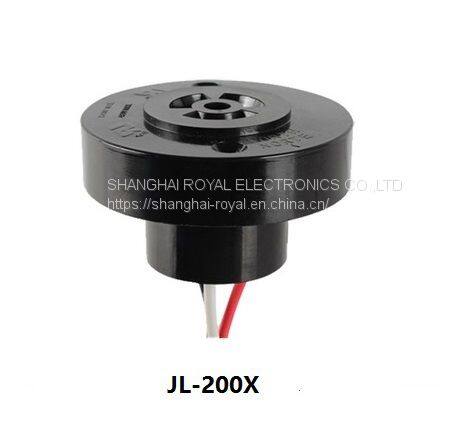

ANSI C136.10 NEMA 3pin Socket Receptacle Photocontrol Sensor Switch photo-4
ANSI C136.10 NEMA 3pin Socket Receptacle Photocontrol Sensor Switch photo-5
US$ 0.95 - 3 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
SG
Place of Origin:
China
Model Number:
200x
Contact Supplier Request Quote Chat Now
Shanghai Royal Electronics Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SG
Place of Origin China
Model Number 200x

Product Summary

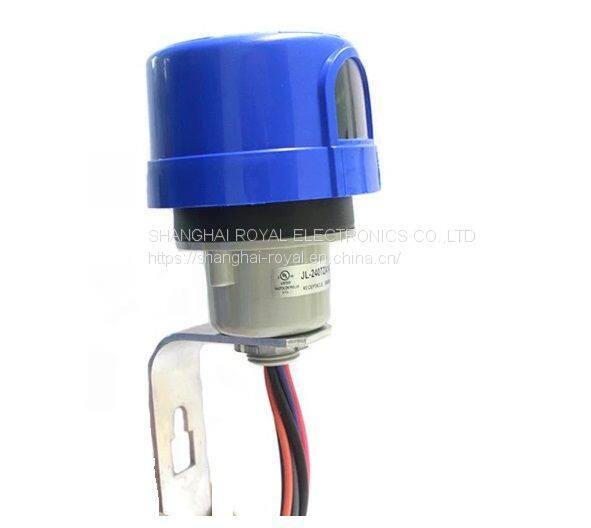

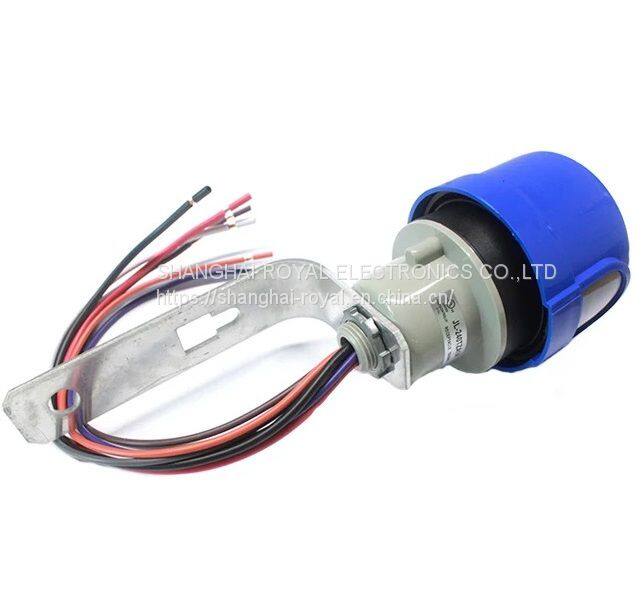

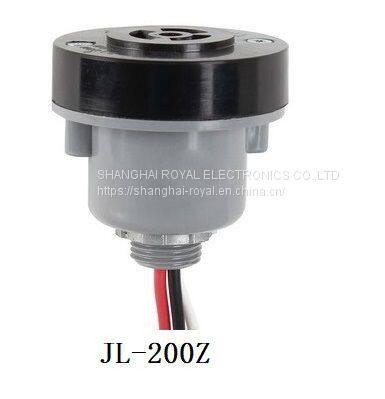

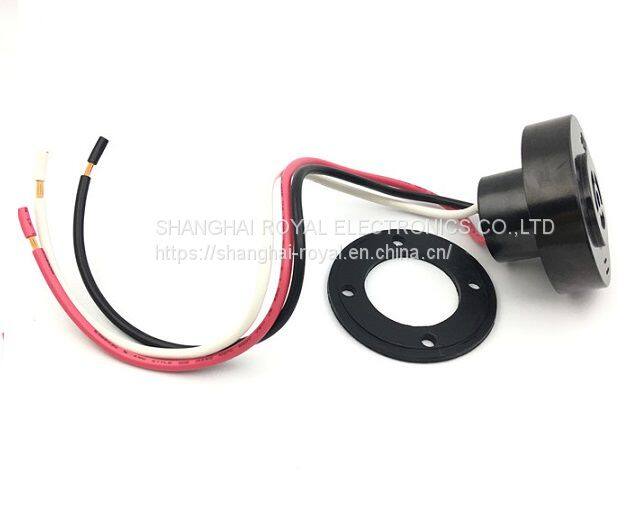

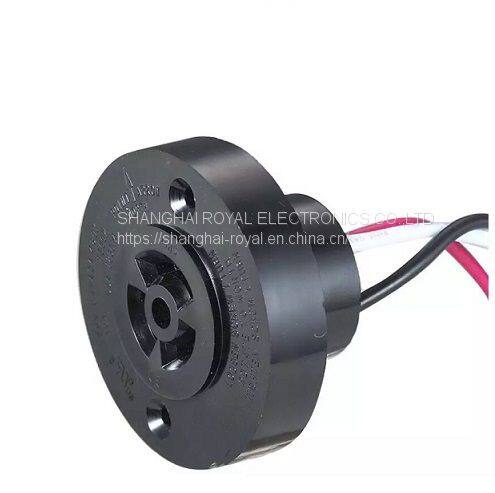

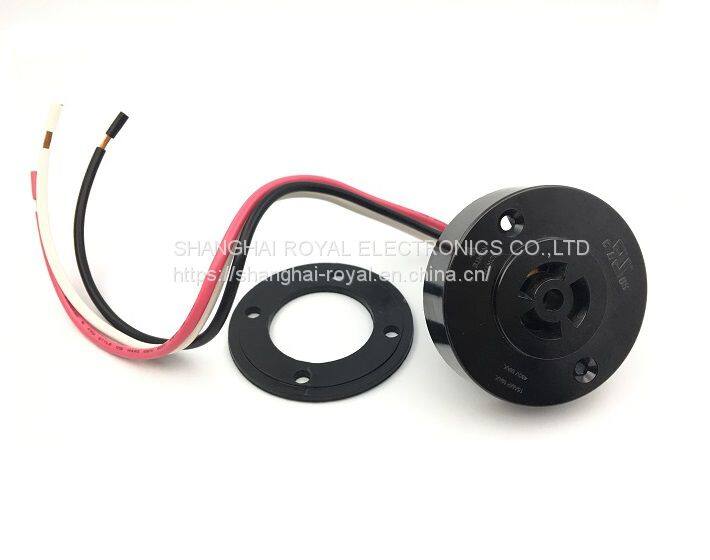

All the JL-200 series photocontrol receptacles were designed for the lanterns those without an ANSI C136.10-1996 receptacle equipped to fit a twist-lock photocontrol. Both JL-200-14 and JL-200Z14 have been listed, and JL-200X14 has been recognized by UL to applicable US and Canadian safety standards, under their file E188110, Vol.1 & Vol.2.


Technical Data

Model No. JL-200X JL-200 JL-200Z Applicable Volt Range 0~480VAC Rated Frequency 50/60Hz Suggested Loading AWG#18: 10Amp; AWG#14: 15Amp Ambient Temperature -40℃ ~ +70℃ Related Humidity 99% Overall Dimensions (mm) 65Dia.x38.5 65Dia.x65 Accessory Back/Front Cover - ● ● Zinc Alloy Lock Nut - ● ● Mounting Plate/Base - - ● 30x(70+130) Leads 6” Min. Weight Approx. 80g 105g 135g



Product Tags: photocell , NEMA base , photocontrol
