Gansu Yingpeng Oil-free Screw Air Compressor

Product parameters:

Brand: Yingpeng GYPEX

Model: YPHB-110EX (WY)

Motor power: 110kw

Exhaust volume: 22.2m ³/ min

Exhaust pressure: 0.8Mpa

Power supply voltage: 380V/50HZ

Noise: 73 ± 2 (dB)

Aspiration conditions: 2-40 ℃

Performance: explosion-proof/low noise/variable frequency

Working principle: screw compressor

Lubrication method: oil-free air compressor

Overall dimensions (length * width * height): 3000 * 1620 * 1860 (mm)

Explosion proof sign: Ex d ib mb IIC T4 Gb

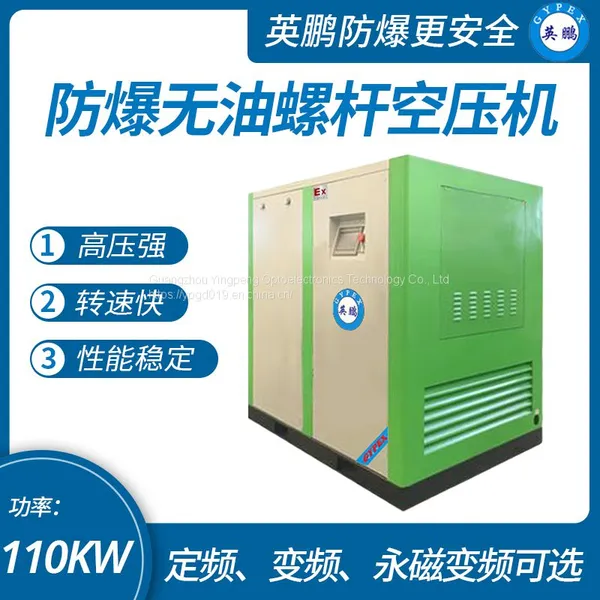

Yingpeng explosion-proof oil-free air compressor

Model (fixed frequency)

Motor power (kW)

Exhaust volume (m ³/ min）

Oil content (Ppm)

Exhaust pressure (Mpa)

Volume of air storage tank (L)

Overall dimensions (mm)

Explosion proof sign

YPHB-05EX(WY)

five point five

zero point eight six

no

zero point eight

300L/600L/1000L optional

900*700*980

ExdibmbIICT4Gb

YPHB-07EX(WY)

seven point five

one point one

900*700*980

YPHB-11EX(WY)

eleven

one point six three

850*850*1230

YPHB-15EX(WY)

fifteen

two point four

850*850*1230

YPHB-18EX(WY)

eighteen point five

three point three

1250*850*1010

YPHB-22EX(WY)

twenty-two

four point six

1250*850*1010

YPHB-30EX(WY)

thirty

five point eight

1400*890*1080

YPHB-37EX(WY)

thirty-seven

seven point six

1405*890*1180

YPHB-45EX(WY)

forty-five

nine

1500*920*1200

YPHB-55EX(WY)

fifty-five

twelve point six

2000*1250*1675

YPHB-75EX(WY)

seventy-five

fifteen point four

2000*1250*1675

YPHB-90EX(WY)

ninety

nineteen point two

2100*1450*1450

YPHB-110EX(WY)

one hundred and ten

twenty-two point two

3000*1620*1860

YPHB-132EX(WY)

one hundred and thirty-two

twenty-seven point two

3000*1620*1860

YPHB-160EX(WY)

one hundred and sixty

thirty-two point five

2800*1800*1900

YPHB-185EX(WY)

one hundred and eighty-five

thirty-six point five

3150*2100*2200

YPHB-220EX(WY)

two hundred and twenty

forty-three point three

3150*2100*2200

Power frequency/frequency conversion/permanent magnet frequency conversion/oil free. For more information, please contact us and we will be happy to serve you!

Yingpeng explosion-proof oil-free air compressor

Model (variable frequency)

Motor power (kW)

Exhaust volume (m ³/ min）

Oil content (Ppm)

Exhaust pressure (Mpa)

Volume of air storage tank (L)

Overall dimensions (mm)

Explosion proof sign

YPHB-05EX(BWY)

five point five

zero point eight six

no

zero point eight

300L/600L/1000L optional

900*700*980

ExdibmbIICT4Gb

YPHB-07EX(BWY)

seven point five

one point one

900*700*980

YPHB-11EX(BWY)

eleven

one point six three

850*850*1230

YPHB-15EX(BWY)

fifteen

two point four

850*850*1230

YPHB-18EX(BWY)

eighteen point five

three

1250*850*1010

YPHB-22EX(BWY)

twenty-two

four point six

1250*850*1010

YPHB-30EX(BWY)

thirty

five point eight

1400*890*1080

YPHB-37EX(BWY)

thirty-seven

seven point six

1405*890*1180

YPHB-45EX(BWY)

forty-five

nine

1500*920*1200

YPHB-55EX(BWY)

fifty-five

twelve point six

2000*1250*1675

YPHB-75EX(BWY)

seventy-five

fifteen point four

2000*1250*1675

YPHB-90EX(BWY)

ninety

nineteen point two

2100*1450*1450

YPHB-110EX(BWY)

one hundred and ten

twenty-two point two

3000*1620*1860

YPHB-132EX(BWY)

one hundred and thirty-two

twenty-seven point two

3000*1620*1860

YPHB-160EX(BWY)

one hundred and sixty

thirty-two point five

2800*1800*1900

YPHB-185EX(BWY)

one hundred and eighty-five

thirty-six point five

3150*2100*2200

YPHB-220EX(BWY)

two hundred and twenty

forty-three point three

3150*2100*2200

Power frequency/frequency conversion/permanent magnet frequency conversion/oil free. For more information, please contact us and we will be happy to serve you!

Yingpeng explosion-proof oil-free air compressor

Model (permanent magnet variable frequency)

Motor power (kW)

Exhaust volume (m ³/ min）

Oil content (Ppm)

Exhaust pressure (Mpa)

Volume of air storage tank (L)

Overall dimensions (mm)

Explosion proof sign

YPHB-05EX(CWY)

five point five

zero point eight six

no

zero point eight

300L/600L/1000L optional

900*700*980

ExdibmbIICT4Gb

YPHB-07EX(CWY)

seven point five

one point one

900*700*980

YPHB-11EX(CWY)

eleven

one point six three

850*850*1230

YPHB-15EX(CWY)

fifteen

two point four

850*850*1230

YPHB-18EX(CWY)

eighteen point five

three

1250*850*1010

YPHB-22EX(CWY)

twenty-two

four point six

1250*850*1010

YPHB-30EX(CWY)

thirty

five point eight

1400*890*1080

YPHB-37EX(CWY)

thirty-seven

seven point six

1405*890*1180

YPHB-45EX(CWY)

forty-five

nine

1500*920*1200

YPHB-55EX(CWY)

fifty-five

twelve point six

2000*1250*1675

YPHB-75EX(CWY)

seventy-five

fifteen point four

2000*1250*1675

YPHB-90EX(CWY)

ninety

nineteen point two

2100*1450*1450

YPHB-110EX(CWY)

one hundred and ten

twenty-two point two

3000*1620*1860

YPHB-132EX(CWY)

one hundred and thirty-two

twenty-seven point two

3000*1620*1860

YPHB-160EX(CWY)

one hundred and sixty

thirty-two point five

2800*1800*1900

YPHB-185EX(CWY)

one hundred and eighty-five

thirty-six point five

3150*2100*2200

YPHB-220EX(CWY)

two hundred and twenty

forty-three point three

3150*2100*2200

Power frequency/frequency conversion/permanent magnet frequency conversion/oil free. For more information, please contact us and we will be happy to serve you!

Product Overview:

The explosion-proof oil-free screw air compressor adopts advanced explosion-proof technology, and the enlarged wear-resistant bearing can easily bear all loads to ensure the normal operation of the host. In the sealing process, the anti gas leakage seal is made of stainless steel material, while the anti oil leakage seal adopts a durable labyrinth design. This set of seals not only prevents impurities in the lubricating oil from entering the rotor, but also prevents air leakage, ensuring a continuous supply of clean and oil-free compressed air.

Manufacturing standards for this series of equipment:

The execution standards for this series of products are as follows:

GB3836.1-2010 Explosive Atmospheres - Part 1: General Requirements for Equipment

GB3836.2-2010 Explosive Atmospheres - Part 2: Equipment Protected by Flameproof Enclosures "d"

GB3836.4-2010 Explosive Atmospheres - Part 4: Equipment Protected by Intrinsically Safe "i"

GB3836.9-2006 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulated" m "

GB3836.15-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 15: Electrical Installation in Hazardous Areas (excluding Coal Mines)"

Product advantages:

1. Adopting advanced explosion-proof technology

2. Using an oil-free screw host

3. Adopting an efficient motor, directly connected to the screw host

4. Maintenance saves money, only 10% of traditional screw air compressors
