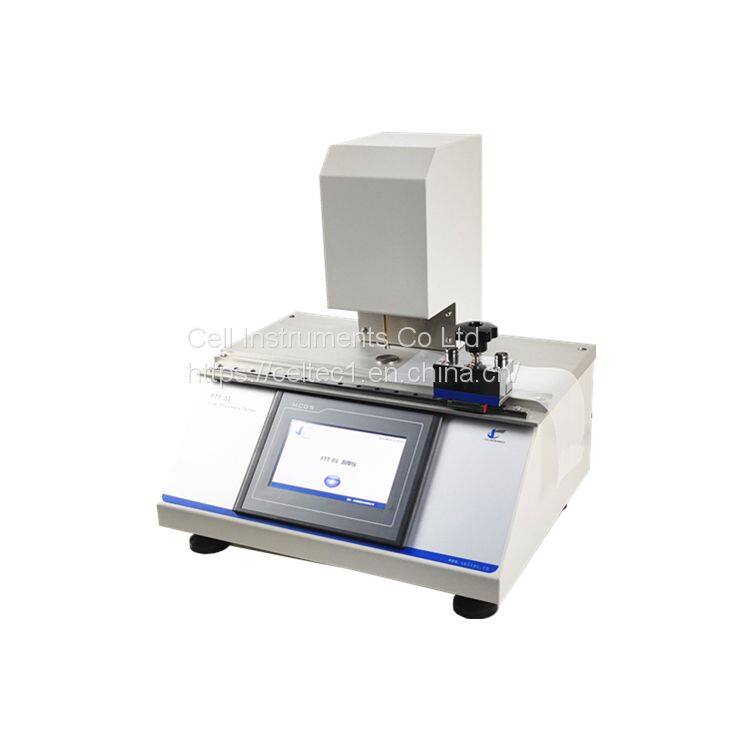

Celtec FTT-01 High Precision Thickness Test of Packaging Raw Material ISO 4593

Thickness tester employs mechanical scanning method to measure the thickness of plastic films, sheets, board, fabrics, textile, membranes, paper, foil, wafers and other materials.

Summary of test method

A specimen is placed on the base and a weighted presser foot lowered. The displacement between the base and the presser foot is measured as the thickness of the specimen.

Features

1.         PLC control and touch screen operation

2.         Contact area and pressure are standards conformed.

3.         Presser foot automatic lifting

4.         Real time display of maximum, minimum, average and standard deviation

5.         Data auto statistics, storage and micro printing

6.         RS232 port and software (Optional)

Technical data

Test Range        0~2mm(Customization available)

Resolution         0.1 μm

Standard measure head  hemispherical type

Optional measure head:

    Measuring pressure: 17.5±1 KPa (for film); 50±1 KPa (for paper, optional)(flat foot)

    Contact area: 50 mm2 (for film); 200 mm2 (for paper, optional)(flat foot)

Power     AC 110~220V

Dimensions       450mm(L)*350mm(W)*400mm(H)

It complies with the following standards:

ASTM D374-99: Standard Test Methods for Thickness of Solid Electrical Insulation

ASTM D1777: Standard Test Method for Thickness of Textile Materials

ISO 4593: Plastics; Film and sheeting; Determination of thickness by mechanical scanning

ISO 534-2011: Paper and board -- Determination of thickness, density and specific volume

ISO 3034:2011: Corrugated fibreboard -- Determination of single sheet thickness

TAPPI T411, JIS K6250, JIS K6783, JIS Z1702, BS 3983, BS 4817
