Weighing-type Filling Machine Automatic Bag Weighing Packing Machine for Partical / Powder

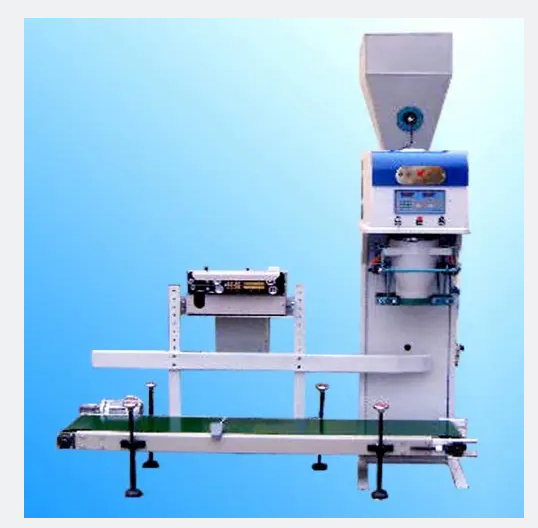

Weighing-type Filling Machine Automatic Bag Weighing Packing Machine for Partical / Powder photo-1

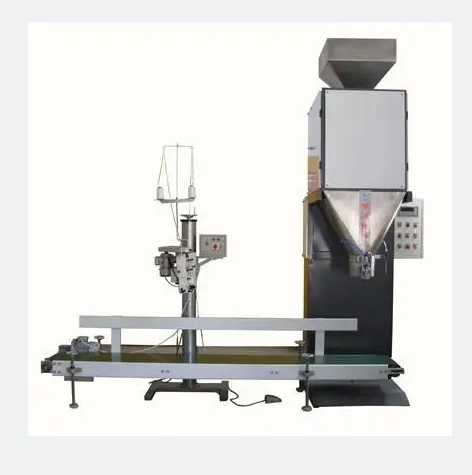

Weighing-type Filling Machine Automatic Bag Weighing Packing Machine for Partical / Powder photo-2

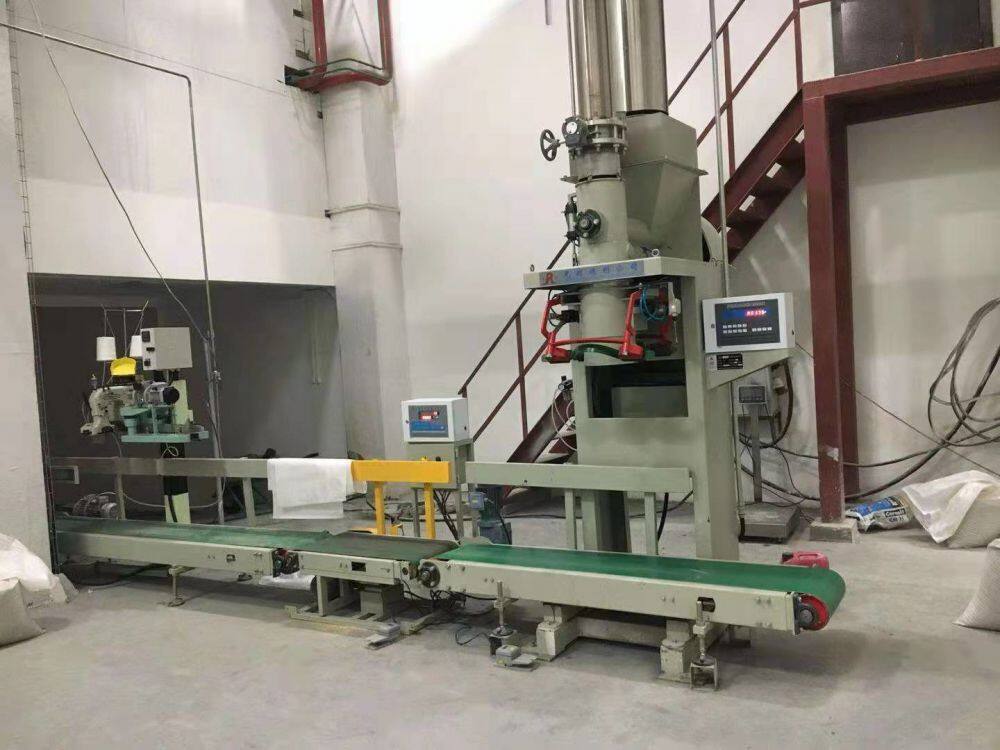

Weighing-type Filling Machine Automatic Bag Weighing Packing Machine for Partical / Powder photo-3
Weighing-type Filling Machine Automatic Bag Weighing Packing Machine for Partical / Powder photo-4
Weighing-type Filling Machine Automatic Bag Weighing Packing Machine for Partical / Powder photo-5
US$ 1 - 35000 MOQ: 1 Set
Key Specifications
Get Latest Price
Packaging:
Bag
Structure:
Rotary
Automatic Grade:
Semi-Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
40 days
Packaging Bag
Structure Rotary
Automatic Grade Semi-Automatic
Packaging Material Plastic
Filling Valve Head Single-Head
Feed Cylinder Structure Single-Room Feeding
Dosing Device Other, load cell
Filling Principle Other, by screw
Packaging Container Lifting Structure Pneumatic Lifting
Type Weighing-type Filling Machine
Material Type Powder

Weighing-type Filling Machine Automatic Bag Weighing Packing Machine for Partical / Powder


Application: Cereal, Maize, Corn, Barley, Buckwheat, Semolina, Etc. Type: Filling And Sealing Machine
Control: PLC Capacity: 300-1200 Bags/h
Reliability: High Productivity And Short Downtime Material Form: Granules
Automation Level: Full-automated Bag Volume: 10-50 Kg
High Light: open mouth bagging machine, automatic packaging machine





Product Profile



Full automatic open-mouth bag packaging machine is a complete set of machine which is composed of Weighing unit, automatic bag feeding unit and sealing & conveying unit to realize material weighing, automatic bagging, material filling and automatic sealing. This set of machine is applicable to quantitative packaging of granular and powdery materials in grain, food, feed, pharmaceutical, chemical, fertilizer, building material and many other industries.



Features of the machine



·Simple button operation panel

·Automation buzzer alarm and lock system when over weight.

·Easy to change weight values.

·Auto stop function when no material detected.

·High precision & weighing system.

·High speed sealing system.

·Long life and easy maintenance



Main Technical Data



· Measuring accuracy: ±0.2%

· Weighing range: 10kg - 50kg

· Packing speed: 300-1200 bags/h (for powder: 300-800 bags/h; for granule: 400-1200 bags/h)

  Note: The packing speed depends on properties of materials. If a higher speed is requested, we are      able to customize the machine.

· Temperature range: -15ºC~+45ºC

·  Power supply: 380V, 50Hz

·  Air supply: 0.6-0.8 Mpa

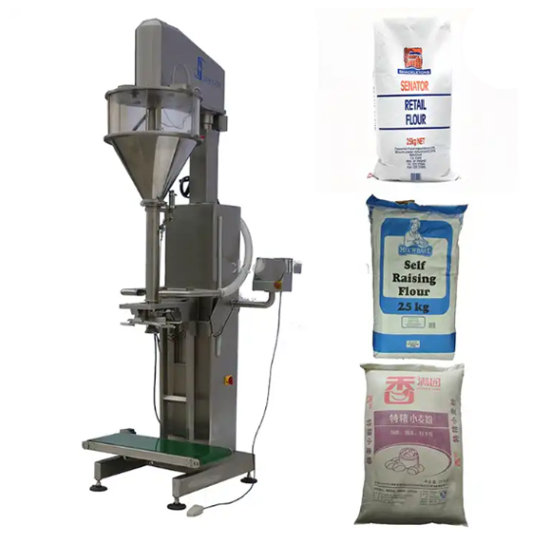

1738254631271
25kg POWDER 1.png

Open Mouth Bag Filling Automatic Bag Packing Machine for Seed / Nuts Granule



part of our customers :  BASF, LANXESS, DANISCO, BAYER, EVONIC, WACKER, ELIOKEM, LYNAS, HUBER, RHODIA ...

Tag: open mouth bagging machineautomatic packaging machineautomatic bag filling and sealing machine


web:


email: shiyan-110@163.com


whatsapp: 0086 135 0624 5149


we can manufacture according to your requirement.  so welcome your enquiry.
