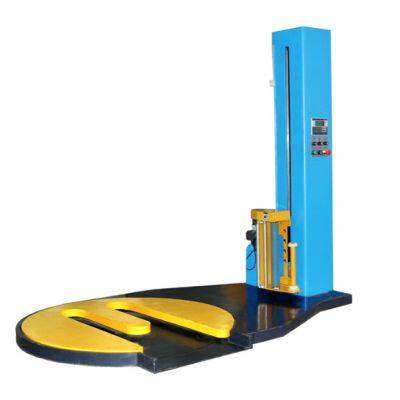

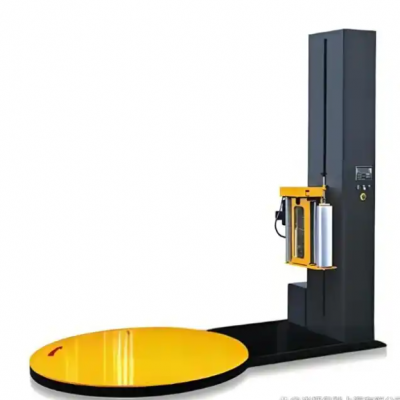

Heavy Duty PLC Control Automatic Stretch Film Pallet Wrapping Packing Machine
MACHINE APPLICATION
The pallet wrapping machine can be widely used in various industries to pack the goods on a pallet with LLDPE stretch film.
The pallet wrapper is especially suitable for large quantities of fast shipping or storage, strapping cartons, bottled items or bulky items. At the same time, it reduces labor intensity and improves packaging efficiency. It is an ideal equipment for modern enterprise product packaging.
MAIN PARAMETERS:
PLC is adopted for electrical control.
Can set special wrapping position reinforcement at random, can reset automatically.
Automatic working mode. Can also change to manual mode.
Indicator alarms automatically.
Photo electric for pallet height detecting.
Tension controlled by Magnetic controller.
Simple design, easy for operation and maintenance.
Manual operation, flexible& economical.
Can start,stop,reset freely.
Can set packing position reinforcement at random.
TECHNICAL PARAMETERS
| Itemdata | TS-B (Auto) |
| Working mode | Auto (PLC) |
| Turntable motor | 0.40KW |
| Up-down motor | 0.37KW |
| Turntable speed | 11r/min(adjustable) |
| Film carriage speed | 2.9m/min |
| Turntable diameter | 1500mm |
| Turntable height | 110mm |
| Tension control | Magnetic controller |
| Height control | Photocell sensor |
| Turntable startstop mode | Soft start & Soft stop |
| Max load weight | 1500KG |
| Max load height | 2100mm |
| Wrapping material |
Stretch film ID76mm,width:500mm |
| Power voltage | AC 380V/50HZ |
| Gross weight | About 800kg |
| Volume | About 4cbm |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
Optional parts:
1. TOP PLATEN: for extra high or very light pallets, the goods on the pallet is easy to falling down during turntable turning. The top platen is used to press the top of the pallets to fix the position and avoid falling and shifting of the goods.
2. PRE-STRETCH DEVICE: Pre-stretch means the film is pre-stretched before wrapping the objects. It can ensure the stability when used for light or high package. It can make the pallet stable during wrapping. It can also save 30～50％ film than normal.
3. ACCESS RAMP: used for convenient loading&offloading of the pallet when transport by the manual fork-lift. It’s not necessary when the loading is by an electric forklift.
