YAHANDA Fixture Eccentric locating plate for 3D/2D Welding Table
USD $18 - $22
/ Piece
1 Piece(Min.Order)
- 100 Piece / Pieces per Month
- Xiamen
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
You May Like
-
YAHANDA Magnetic Locator Clamping Tools for 3D/2D Welding Table
-
YAHANDA Welding Tool Ground Connector necessary
-
YAHANDA Welding Tool Transport Ring necessary
-
3D welding table YAHANDA Hot Product Multifunctional
-
2D welding table YAHANDA Hot Product Multifunctional
-
3D Octagonal Welding Table YAHANDA Hot Product Multifunctional
Product Details
| Brand Name | YAHANDA | Place of Origin | China | |
| Model Number | D28/D22/D16 | Certification | CE Certification | |
| After-sales Service Provided | Engineers available to service machinery overseas | Weight | 3 KG | |
| Condition | New | Usage | Welding, Welding table Supporting | |
| Dimensions | 150*150*50mm or customized |
Product Description
Description:

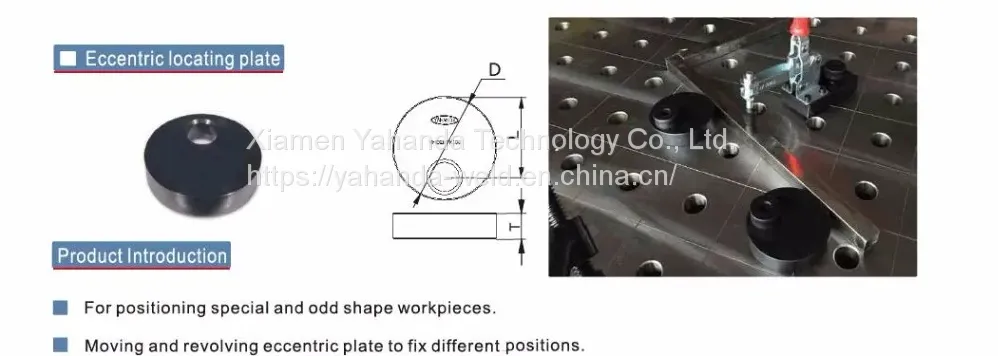

It is used for positioning specialand odd shape workpieces.Y ou can move and revolve eccentric plate to fix different positions. With multi-functions and reusability, it makes your welding, machining, assembling and inspection works get higher productivity, better work quality,reduce your project investment cost, and shorten lead time. One set welding table and clamping accessories can match freely to meet the demands of workings for all welders and give you flexibility to adapt to each different project.
Technical Parameters:
1. 3 Series:D16/D22/D28.
2. D16 tables: Hole diameter is 16mm; Hole spacing to each other is 50+0.05mm; Grid pattern 50x50mm on table top.
3. D22 tables: Hole diameter is 22mm; Hole spacing to each other is 75+0.05mm; Grid pattern 75x75mm on table top.
2. D16 tables: Hole diameter is 16mm; Hole spacing to each other is 50+0.05mm; Grid pattern 50x50mm on table top.
3. D22 tables: Hole diameter is 22mm; Hole spacing to each other is 75+0.05mm; Grid pattern 75x75mm on table top.
4. D28 tables: Hole diameter is 28mm; Hole spacing to each other is 100+0.05mm; Grid pattern 100x100mm on table top.
Features:
3. Quick fixing and clamping
Only spending a few minutes to fix and clamp workpieces from one to another
4. Ease to operate
Any worker can learn how to use it quickly
5. High price performance ratio
1 set of modular flexible fixture can replace all traditional dedicated fixtures
Saved a lot of time labor material resources and funds for enterprises
1. Modularity and flexibility
Can be connected and changed arbitrarily according to the shape of workpiece 2. High precision
The precision can reach decimillimetre for fixing and clamping3. Quick fixing and clamping
Only spending a few minutes to fix and clamp workpieces from one to another
4. Ease to operate
Any worker can learn how to use it quickly
5. High price performance ratio
1 set of modular flexible fixture can replace all traditional dedicated fixtures
Saved a lot of time labor material resources and funds for enterprises
