Product Introduction:

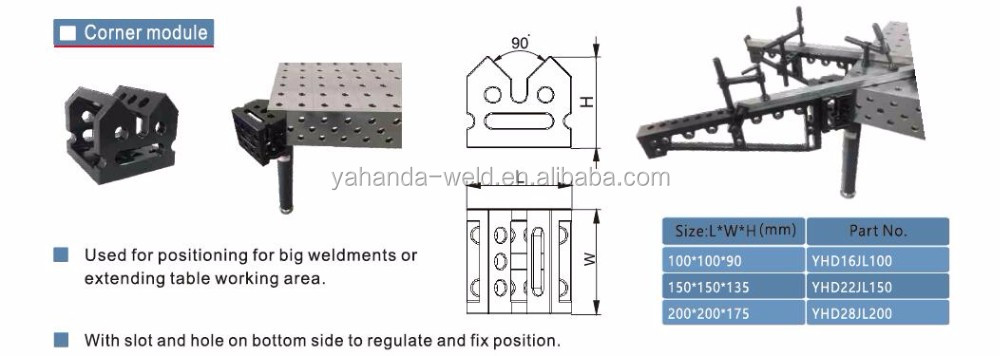

It is used for positioning for big weldmentsorextending table working area, and with slot and hole on bottom side to regulate and fix position. With multi-functions and reusability, it makes your welding, machining, assembling and inspection works get higher productivity, better work quality,reduce your project investment cost, and shorten lead time. One set welding table and clamping accessories can match freely to meet the demands of workings for all welders and give you flexibility to adapt to each different project.
Technical Parameters:
2. D16 tables: Hole diameter is 16mm; Hole spacing to each other is 50+0.05mm; Grid pattern 50x50mm on table top.
3. D22 tables: Hole diameter is 22mm; Hole spacing to each other is 75+0.05mm; Grid pattern 75x75mm on table top.
4. D28 tables: Hole diameter is 28mm; Hole spacing to each other is 100+0.05mm; Grid pattern 100x100mm on table top.
Features:
1. Modularity and flexibility
Can be connected and changed arbitrarily according to the shape of workpiece
2. High precision
The precision can reach decimillimetre for fixing and clamping3. Quick fixing and clamping
Only spending a few minutes to fix and clamp workpieces from one to another
4. Ease to operate
Any worker can learn how to use it quickly
5. High price performance ratio
1 set of modular flexible fixture can replace all traditional dedicated fixtures
Saved a lot of time labor material resources and funds for enterprises
