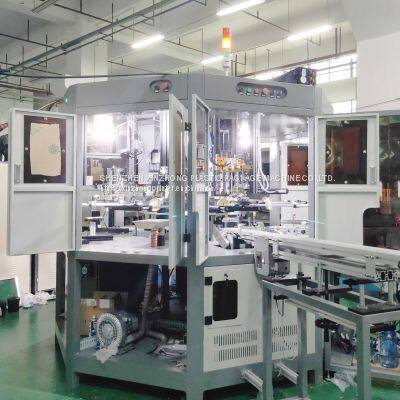

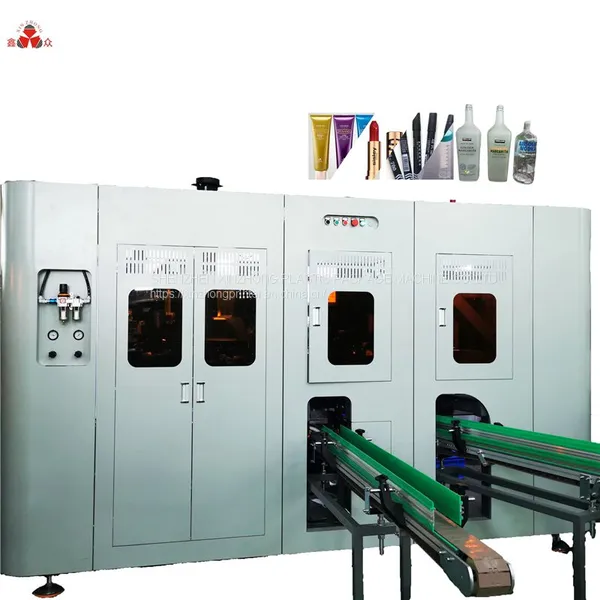

Automatic 6 color servo rotary screen printer printing machine for bottles perfume glass bottle jar packaging printing machine
- 100 Set / Sets per Month
- SHENZHEN CHINA
- T/T L/C D/P D/A
- 45 days
Product Details
Brand Name: | XINZHONG | Place of Origin: | China | Model Number: | CNC106 |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 1 year |
Weight: | 3500kgs | Voltage: | 380v/220v/440v | Usage: | Tube Printer |
Condition: | New | Automatic Grade: | Automatic | Dimensions(L*W*H): | 2300*2300*2550mm |
Gross Power: | 10kw | Color & Page: | Multicolor |
Product Description
Automatic servo 6 color rotary screen printer printing machine for bottles perfume glass bottle jar packaging printing machine
Description:
This model is our most advanced horizontal rotary servo screen printing equipment ,mainly for silkscreen printing patterns on cylindrical, conical, rectangular glass bottles and cosmetic bottles, jars, containers etc.. Optional 2-8 colors for screen
printing , hot stamping and heat transfers for different applications.
Tech data
Model | CNC106 |
Power | 380VAC 3Phase 50/60Hz |
Air consumption | 6-7 bars |
Max printing speed | 2400-3000pcs/h |
Printing diameter | 15-100mm |
Printing length | 20-320mm |
Printing size | ≤ 295 (perimeter), 200mm(width) |
Power | 35kw |
Dimension | length 3580 * width 3400 * height 300mm |
More details
1. Adopt automatic loading system with multi axis servo robot.
2. 2. Imported divider and servo system ensures best accuracy.
3. 3. Automatic printing system with all servo driven: positioning,printing motion,screen frame, rotation etc. are all driven by servo motors.
4. 4. All jigs with individual servo motor driven for rotation.
5. 5. Quick and simple changeover to save times for you. All parameters automatic setting simply in touch screen.
6. 6. Optional UV/ LED UV curing system with longer life time and energy saving.
7. 7. Automatic unloading with servo robot.
8.opitonal CCD vision system for ensure best overprinting accuracy.
