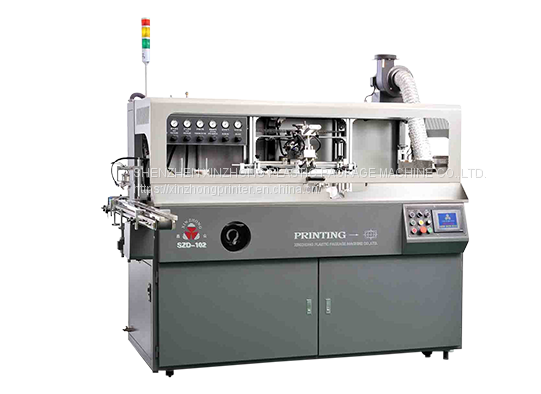

SZD-102-B Automatic 2 Colors Plastic Glass Perfume Cups Silk Screen Printing Machine on Bottles and Bottle Screen Printer

SZD-102-B Automatic 2 Colors Plastic Glass Perfume Cups Silk Screen Printing Machine on Bottles and Bottle Screen Printer thumbnail-1
SZD-102-B Automatic 2 Colors Plastic Glass Perfume Cups Silk Screen Printing Machine on Bottles and Bottle Screen Printer thumbnail-2
SZD-102-B Automatic 2 Colors Plastic Glass Perfume Cups Silk Screen Printing Machine on Bottles and Bottle Screen Printer thumbnail-3
SZD-102-B Automatic 2 Colors Plastic Glass Perfume Cups Silk Screen Printing Machine on Bottles and Bottle Screen Printer thumbnail-4
SZD-102-B Automatic 2 Colors Plastic Glass Perfume Cups Silk Screen Printing Machine on Bottles and Bottle Screen Printer thumbnail-5
SZD-102-B Automatic 2 Colors Plastic Glass Perfume Cups Silk Screen Printing Machine on Bottles and Bottle Screen Printer photo-1
SZD-102-B Automatic 2 Colors Plastic Glass Perfume Cups Silk Screen Printing Machine on Bottles and Bottle Screen Printer photo-2
SZD-102-B Automatic 2 Colors Plastic Glass Perfume Cups Silk Screen Printing Machine on Bottles and Bottle Screen Printer photo-3
SZD-102-B Automatic 2 Colors Plastic Glass Perfume Cups Silk Screen Printing Machine on Bottles and Bottle Screen Printer photo-4
SZD-102-B Automatic 2 Colors Plastic Glass Perfume Cups Silk Screen Printing Machine on Bottles and Bottle Screen Printer photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
XINZHONG
Place of Origin:
China
Model Number:
szd-102-B
Contact Supplier Request Quote Chat Now
Shenzhen Xinzhong Plastic Package Machine Co.,ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN CHINA
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name XINZHONG
Place of Origin China
Model Number szd-102-B
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Weight 1100kgs
Voltage 380v/220v/440v
Usage Tube Printer
Condition New
Automatic Grade Automatic
Dimensions(L*W*H) 2050x1220x1750mm
Gross Power 7kw
Color & Page Other, single color/multicolor

SZD-102-B automatic 2 colors plastic glass perfume cups silk screen printing machine on bottles and bottle screen printer


Application

The machine is single color screen printer with multi-function for printing round and oval/flat bottles. Each unit can work as single color printer or it’s flexible to connect with several printers to become a multi-color printer. The innovative transmission system is very steady in passing the bottles, easy to shift between different types of bottles, easy to operate. It will widely accepted by the small-medium enterprises due to its efficiency.



Key Data:

Print speed: round 4000pcs/hr Oval:5000pcs/hr

Product size: round 20-100mm  length: 25-300mm

                Oval width:25-120mm  length: 25-300mm

Compressed air: 0.6-0.8Mpa

LPG: 0.15Mpa

Volume: 1908x1000x1500mm

Power supply: 380VAC 3PH 50H

           UV: 5kw   motor: 1.5kw

Printing colors: 1-7 colors

optional curing: UV/LED

Delivery: 15-20 days

CE: yes





Product Tags: bottle sreen printing machine , plastic bottle printing , screen printing on bottles , 2 colors bottle screen printer , perfume bottle printing machine , bottle screen printer , cups silk screen printing machine , screen printing on plastic cups , cup screen prin
