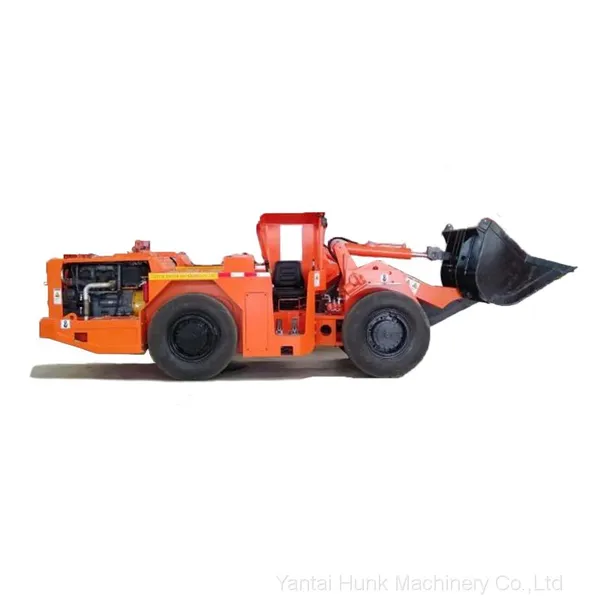

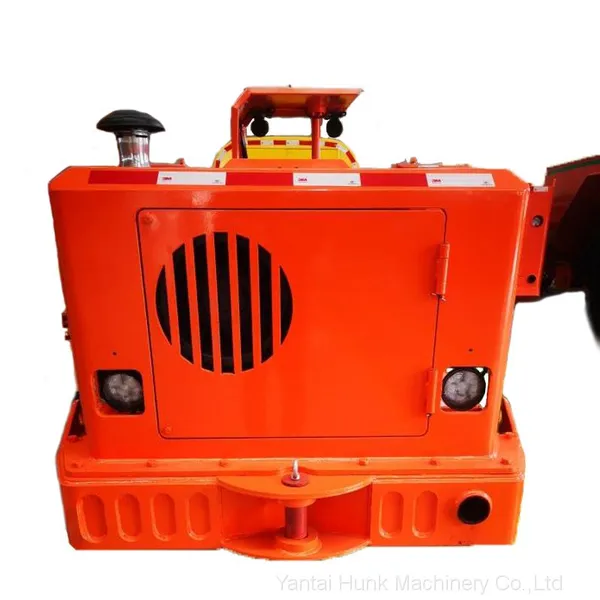

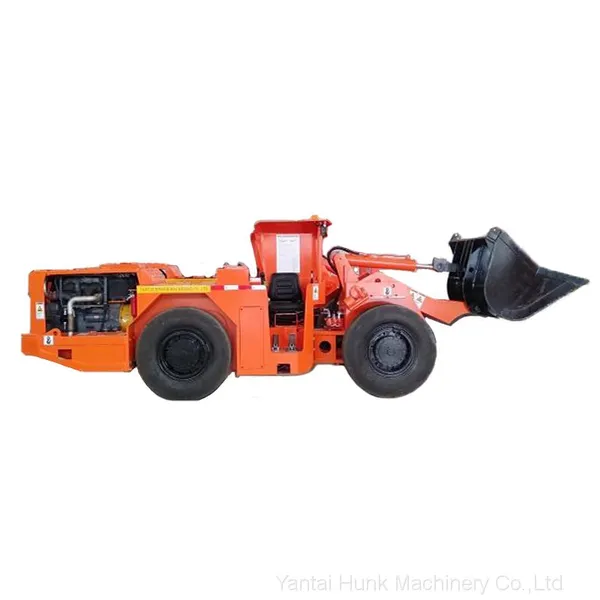

WJ-1 Lhd Underground Mining Loader Mining Equipment

Name: WJ-1 Lhd Underground Mining Loader Mining Equipment
Brand: Hunk
SKU: 171868489
Availability: InStock

US$ 52000 - 56000 MOQ: 1 Set

Key Specifications

Brand Name:

Hunk

Place of Origin:

China

Model Number:

HKWJ-1H

Yantai Hunk Machinery Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Hunk

Place of Origin China

Model Number HKWJ-1H

After-sales Service Provided Engineers available to service machinery overseas

Condition New

*Configuration*
1.Diesel Engine:
	Manufacture:	German DEUTZ Company
	Model:	BF4L914/F4L914
	Type:	66KW/ 2300 RPM 58KW/2300 RPM

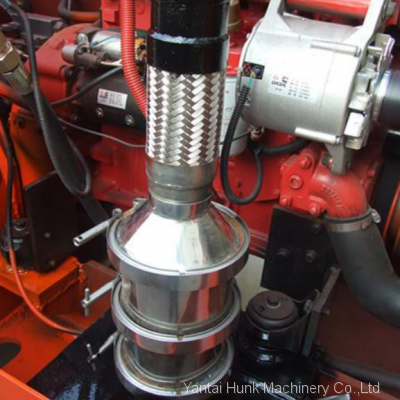

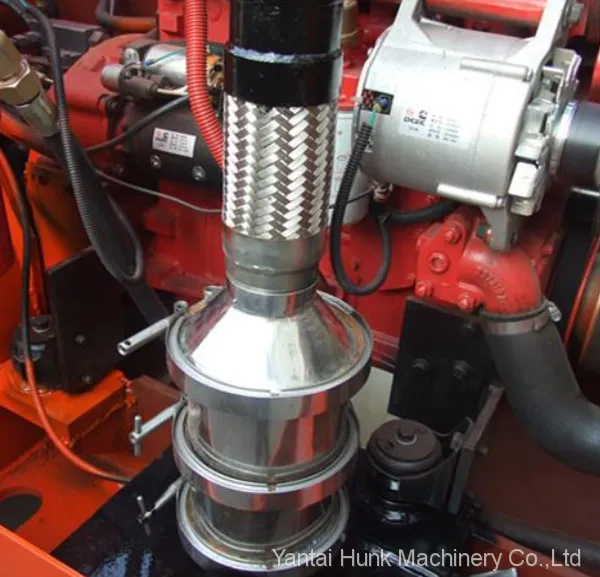

	Exhaust System:	Exhaust conditioner silencer and purifier.
2.Hydrostatic Transmission:
	Manufacture:	Import
	Model:	Axial Piston Pump: PV22 Axial Piston Motor: MV23
	Features:	Piloted control, Variable Flow, Full reversible
3.Transfer Case:
	Type:	Spiral gear sets, Integrated with parking brake
4.Drive Axle:
	Model:	PC15
5.Tires:
	Manufacture:	Advance
	Model:	10.00-20
6.Multiple Directional Valve:
	Model:	DCV110/2-0016
7.Double Stage Pump：
	Model:	CBQT-F540/F410-AFH
8.Working Group(Frame, Big Arm, Bucket)：
	Model:	2 0100
9.Hydraulic Oil Cylinder(Tipping Bucket, Lifting, Steering)
	Model:	2 0300 01/2 0300 07/2 0500 02

10.Hydraulic System：
	Component:	Working System, Driving System, Steering System, Braking System
11.Braking System：
	Component:	Working Brake, Parking brake
	Feature:	Dynamic Service Brake through the hydrostatic transmission. The parking and emergency brake is spring applied, hydraulically released, multidisc oil immersed brakes inclosed on the transfer case.
12.Electrical System
	Power Voltage:	24V

*II.Technical Date:*
1.Main Dimensions:
	Dimension (transport):	6030mm1300mm2000mm
2.Weights &Axle Loading Weight:
	Bucket Capacity (SAE Heaped):	1m³ （1.5 yard³）
	Rated Loading Capacity:	2000KG
	Machine Weight:	7200KG
3.Running Speed:		0-10 Km/h Full speed for forward or reverse
4.Service Data:
	Max. Discharging Height	1050mm
	Min. Discharging Distance:	860mm
	Min. Ground Clearance:	200mm
	Oscillation Angle:	±8°, Slewing bearing mounted on rear frame
5.Capacities:
	Max. Gradeability:	15°
	Max. Tractive Force:	56 KN
	Max. Shovel Force:	48 KN
6.Steering:
	Max. Steering Angle:	± 38 °
	Min. Steering Radius	Inner: 2540mm	Outer: 4260 mm
