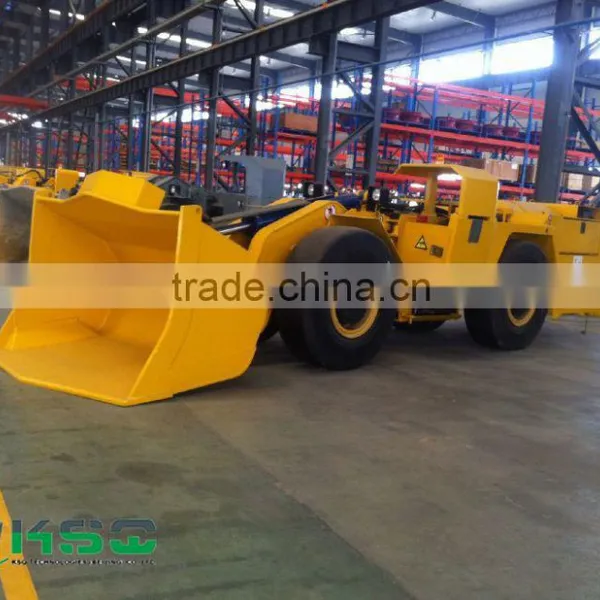

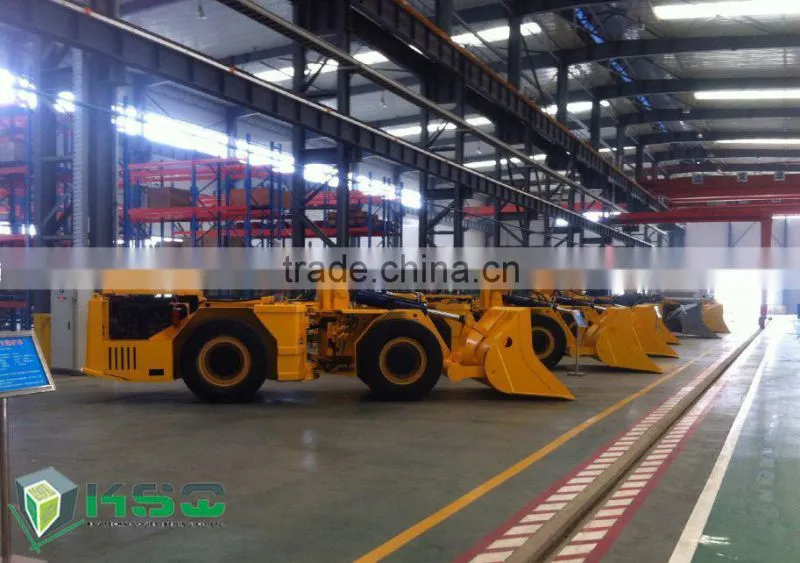

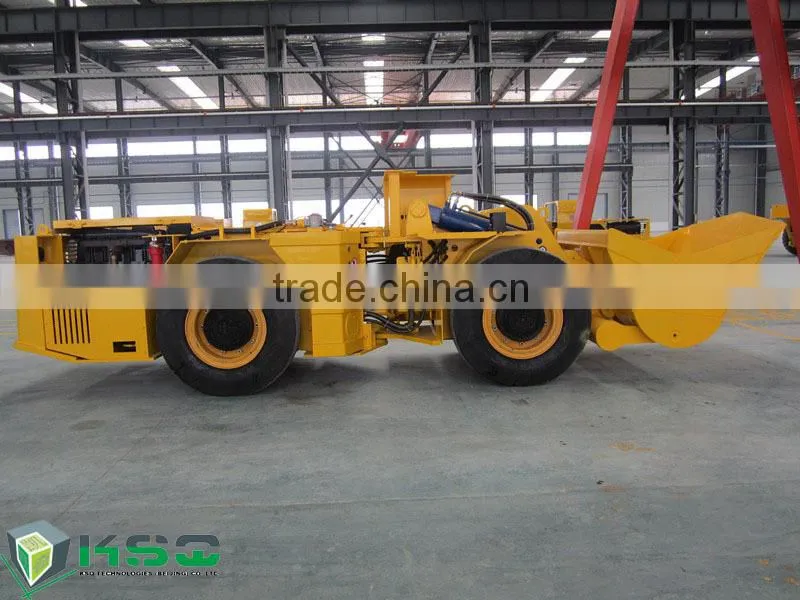

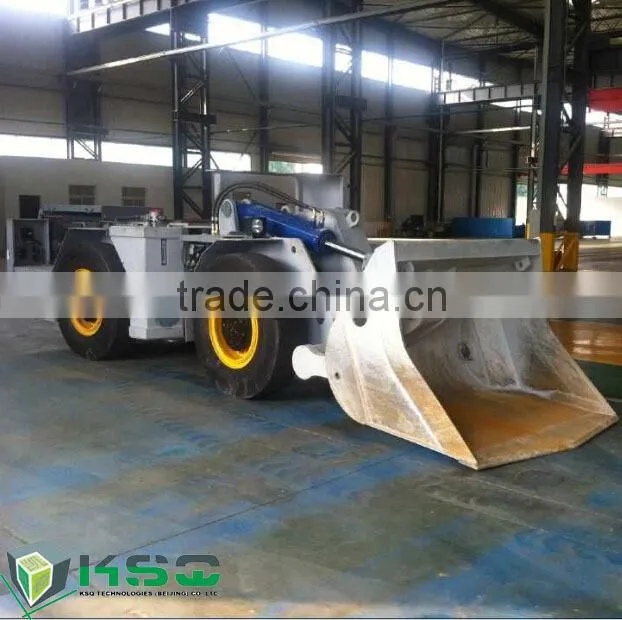

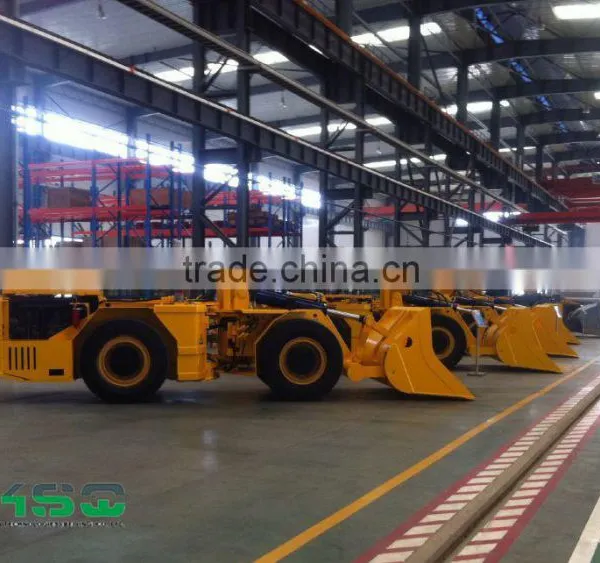

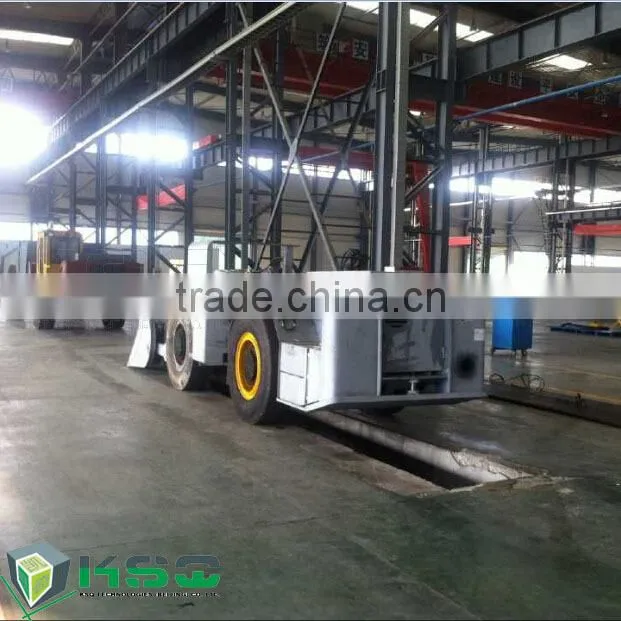

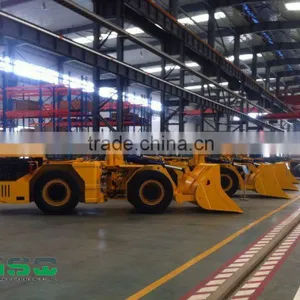

The trusted workhorse of miners and tunneling professionals, the RL-2 Load-Haul-Dump Machine is ideal for small to medium scale rock excavation operations. The RL-2 maintains the simple yet very robust design tenets of what a mining equipment should be - it has a small footprint and turning radius suitable for small envelope sizes, high proven reliability, and straight-forward mechanical components that are easy to maintain.
| Main Dimensions | Length | 6875mm(haul position) |
| Width | 1770mm | |
| Height | 1950mm | |
| Turning Radius |
Inside | 2600mm |
| Outside | 4886mm | |
| Volume Capacity | 2m3 | |
| Tramming Capacity | 4000kg | |
| Engine | DEUTZ F6L912W air cooled diesel engine | |
| Torque Converter | DANA C272 | |
| Transmission | DANA RT20000 | |
| Axles | MERITOR CY-2J | |
| Tires | 12.00-24.00 L5-S |
Weights of underground mine equipments
Deadweight: 11000 kg
Payload: 4000 kg
Front-axle load, unladen: 5625 kg
Rear-axle load, unladen: 6875 kg
Fully loaded: 14800 kg
Bucket of underground mine equipments
Type: Heavy duty rock bucket
Maximum lift height: 4000 mm
Maximum dumping height: 1800 mm
Required dumping height clearance: 950 mm
Dumping angle: 40 degree
Applications of Load Haul Dump
Underground Mining
Hydropower Tunneling
Roadway/Railway Tunneling
Specification of Load Haul Dump
| Load-Haul-Dump Machine | ||||||
| Type |
Main Dimensions (L*W*H) |
Volume Capacity |
Tramming Capacity |
Engine | Axles | Tires |
| RL-1 | 6000*1330* 2037mm |
1m3 | 2000 kg |
DEUTZ BF6L914 diesel engine |
XUZHOU-JINHE |
10.00-20.00 L5-S |
| RL-2 | 6875*1770* 1950 mm |
2m3 | 4000 kg |
DEUTZ F6L912W diesel engine |
MERITOR CY-2J |
12.00-24.00 L5-S |
| RL-3 | 8868*2112* 2275mm |
3m3 | 6000 kg |
DEUTZ BF6L914C diesel engine |
DANA 16D |
17.50-25.00 L5-S |
| RL-4 | 9690*2550* 2395mm |
4m3 | 8000 kg | CUMMINS QSL9C250 diesel engine | KESSLER D91 |
18.00-25.00 L5-S |
ROXMECH® Rock Excavation and Service/Support Equipment include:
RL-1 Load-Haul-Dump Machine
RL-2 Load-Haul-Dump Machine
RL-3 Load-Haul Dump Machine
RL-4 Load-Haul Dump Machine
RT-12 Low Profile Dump Truck
RT-15 Low Profile Dump Truck
RT-20 Low Profile Dump Truck
MT30D Low Profile Dump Truck
RS-3 Service Vehicle Series
MG-64A-SB Shotcrete Batcher
MT30M Low Profile Transmixer
ROXMECH®, by KSQ Technologies (Beijing) Co. Ltd., is a product line consisting of specialized
equipment for use in underground mining and tunneling works, such as Load-Haul-Dump
Machines (LHDs), Low Profile Trucks (LPTs), Scissors Lift Truck, Mobile Batching Equipment,
Service Vehicles, and Personnel Carriers.
ROXMECH® was developed through years of exchanges and hands-on work with mining
operations in China and some parts of the world where mining is the lifeblood of the econ-
omy. In every product we build, our reputation and experience can be seen. That’s the rea-
son to choose us if you are looking to improve your productivity and reduce costs.
