Help CenterWhite Ceramic Halogen Infrared Heat Lamp 240V 1000W Quartz Infrared Single Tube Lamp
Related Products
-
Quartz Tube Lamp 235V 1000W Replace 13168Z/98 Infrared IR LampUS$ 1 - 100MOQ: 2 Pieces -
Quartz Single Tube Lamp 235V 1000W Replace 13168Z/98 Infrared IR LampUS$ 1 - 100MOQ: 2 Pieces
-
14196Z/83 Replacement IR Lamp 400V 2500W Infrared LampUS$ 1 - 50MOQ: 2 Pieces
-
220V 900W Quartz Infrared Single Tube LampUS$ 1 - 50MOQ: 2 Pieces
-
Replacement Dr.Fischer 13565X 235V 3000W Quartz Infrared LampUS$ 1 - 50MOQ: 2 Pieces
E-DEN Infrared Lamps / Advantages
1: Can switch on and off frequently
2: 1~2 seconds fast response time to full power heating
3: Output power can be adjusted simply by voltage regulator (0V~lamp rated voltage)
4: Accurate(±1 ℃)heating temperature control with SCR regulator
5: Small installation space, flexible horizontal or vertical burning position
6: For all industrial applications, the highest working temperature up to 1000 ℃
7:Special Gold reflector (90% reflective rate) and Nano-ceramic reflector (70% reflective rate) coated on lamp quartz surface to reflect and increase the infrared radiation on heated objects
8: Different objects different matched IR radiation wavelength Short wave (1.0~1.4μm), Fast response medium wave (1.4~2.0μm), Carbon medium wave (2.0~2.5μm), Medium wave (2.2~3.2μm).
9: Higher density power output The highest surface power output of short wave lamp is 200KW/M2, Fast response medium wave lamp is 130KW/M2, Carbon medium wave lamp is 100KW/M2, Medium wave lamp is 60KW/M2.
10: We guarantee 5000 hours average working life.
Infrared heating technology radiates and conveys large amounts of energy in a short time. Infrared lamps are suitable for printing,packing,plastic processing,heating food,drying wood,auto industry and other areas what you need. Our lamps are available for large surfaces, for three dimensional shapes and for small work pieces. By matching the optimum wavelength of infrared, the lamps can save energy up to 50%. Twin tube shape is a better stable design for short wave infrared lamp with high radiation density and high power intensity.

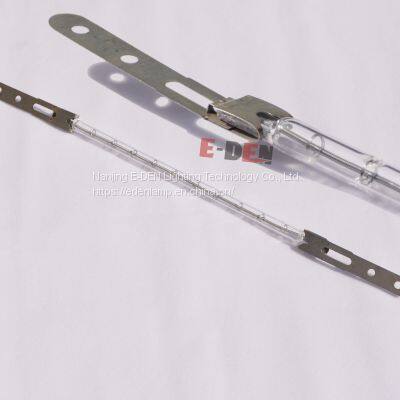

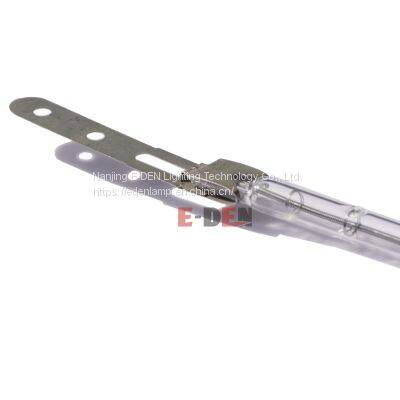

* Quartz Infrared Heat Lamp Without Reflector
Replacement: 13168X
Voltage: 235V～240V
Power: 2000W
End Cap: X Metal (No bent)
Tube diameter: 10mm～11mm
Total length: 480mm from end cap to end cap
Center length: 370mm±5mm from center of hole to the opposite center of hole
Heat length: 280mm±5mm
* Our halogen infrared heat lamps are replacement designed for original 13168X IR lamp, and the lamp matches the original
