Automatic Production Line for Photovoltaic Module

Automatic Production Line for Photovoltaic Module

High Productivity

High Stability

High Automation

Cost Advantage

Applicable Module Range

a. 1640-2600mm, 950-1500mm, 20-50mm;

standard length 1640-2600mm, width 950-1500m, height 20-50mm.

b. customizable

Applicable Module Category

a.

5 busbars, multiple busbars, back contact, through metal vias, heterojunction, N-type;

b.

full piece, half piece, imbricated tile

c.

with frame, with frame without C side, without frame

d.

regular, double-glass/double sided, lightweight module, thin-film module

intelligent logistics

machine vision

information system

Individual Demand Customization

　　Sunic powerful R&D team can make the plant design, choose the right equipment and automation level?according to

Intelligent Management System

　　Based on INDUSTRIE 4.0 and Internet of things.

　　Remote monitor and maintenance

　　Datas internet transfer.

　　Build intelligent management system with ERP, OA

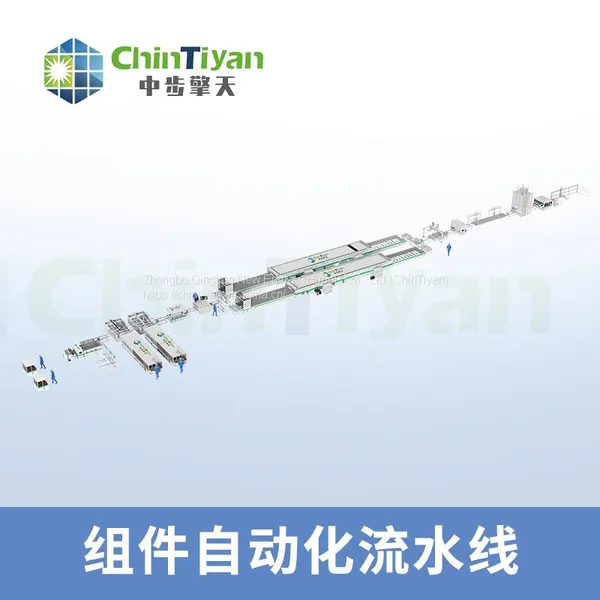

Module Manufacturing Process

1. Full Auto Soldering Bussing Machine

2. Auto Robot Layup Machine

3. Auto Robot Glass Loading Machine

4. EVA Cutting&Laying Machine

5. 90· Turning Conveyor

6. Buffer

7. Conveyor

8. Auto Template Loading Machine

9. Junction Welding

10.  EVA/TPT 2nd Cutting&Laying Machine

11. Double Glass Film Machine

12. EEL Detector

13. Horizontal Rotary Machine

14. Mixing Inlet Machine

15. Laminating Machine

16. Mixing Outlet Machine

17. Horizontal Fold Conveyor after Lamination

18. Auto Edge Trimming Machine

19. Turn-over Tester

20. Auto Gluing and Framing Integrated Machine

21. Junction Box Adhesive Installation Machine

22.Junction Box Welding Machine

23. Fully Auto Juction Box Glue Filling Machine

24. Curing Loading/Unloading Machine

25. Curing Chain Plate Machine

26. 180·Turning Machine

27. Alignment Machine

28. Insulation IV tester

29. Robot Sorting and Packing Machine
