Help Center370w Automatic pv Solar Panel Production Line
Related Products
-
50mw to 500mw Full Automatic pv Production LineNegotiableMOQ: 1 Short Ton -
20mw Automatic pv Solar Panel Production LineNegotiableMOQ: 1 Short Ton
-
20mw Automatic pv Solar Panel Production LineNegotiableMOQ: 1 Short Ton
-
10mw Semi-automatic Automatic pv Solar Panel Production LineNegotiableMOQ: 1 Bag
-
50mw Semi-automatic pv Solar Panel Production LineNegotiableMOQ: 1 Bag
Supply Turnkey Solutions
ChinTiyan New Energy provides full-line solutions and turnkey engineering services for automated photovoltaic modules
Individual Demand Customization
Sunic powerful R&D team can make the plant design, choose the right equipment and automation level?according to customer’s requirement.
Automatic Production Line for Photovoltaic Module
High Productivity
High Stability
High Automation
Cost Advantage
Applicable Module Range
a. 1640-2600mm, 950-1500mm, 20-50mm;
standard length 1640-2600mm, width 950-1500m, height 20-50mm.
b.
customizable
Applicable Module Category
a. 5 busbars, multiple busbars, back contact, through metal vias, heterojunction, N-type;
b. full piece, half piece, imbricated tile
c. with frame, with frame without C side, without frame
d.regular, double-glass/double sided, lightweight module, thin-film module
Module Manufacturing Process
1. ：Full Auto Soldering Bussing Machine

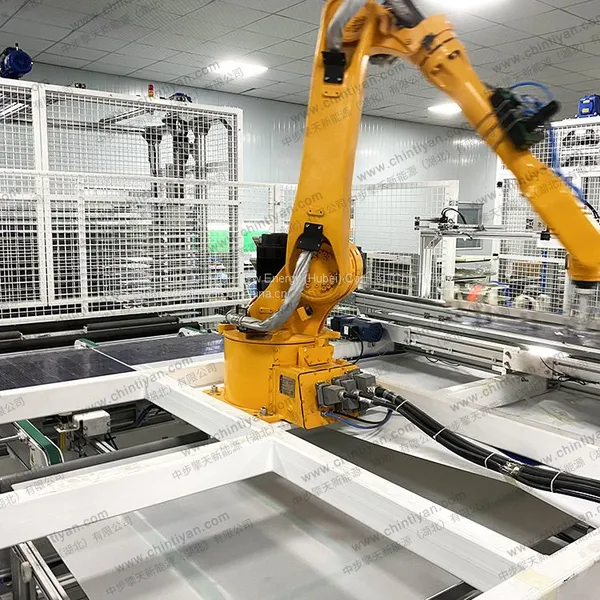

2. ：Auto Robot Layup Machine
3. ：Auto Robot Glass Loading Machine
4. ：EVA Cutting&Laying Machine
5. ：90· Turning Conveyor
6. ：Buffer

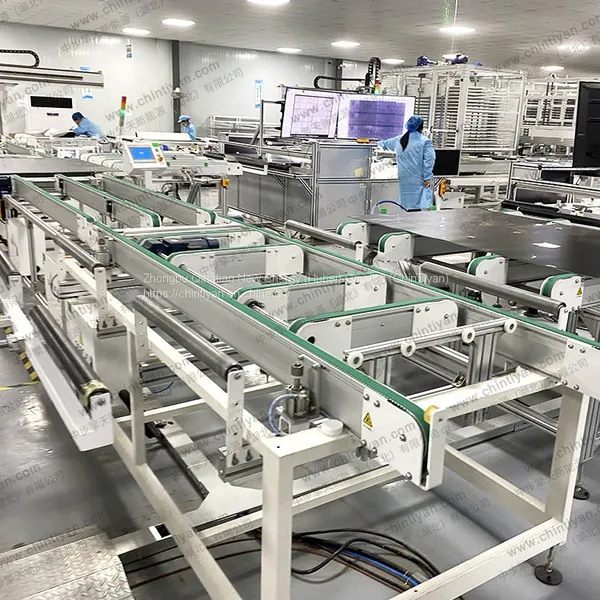

7. ：Conveyor
8. ：Auto Template Loading Machine
9. ：Junction Welding
10.: EVA/TPT 2nd Cutting&Laying Machine
11. ：Double Glass Film Machine
12. ：EL Detector
13. ：Horizontal Rotary Machine
14. ：Mixing Inlet Machine
15. ：Laminating Machine
16. ：Mixing Outlet Machine
17. ：Horizontal Fold Conveyor after Lamination
18. ：Auto Edge Trimming Machine
19. ：Turn-over Tester
20. ：Auto Gluing and Framing Integrated Machine
21. ：Junction Box Adhesive Installation Machine
22. ：Junction Box Welding Machine
23. ：Fully Auto Juction Box Glue Filling Machine
24. ：Curing Loading/Unloading Machine
25. : Curing Chain Plate Machine
26. ：180·Turning Machine
27. ：Alignment Machine
28. ：Insulation IV tester
29. ：Robot Sorting and Packing Machine
