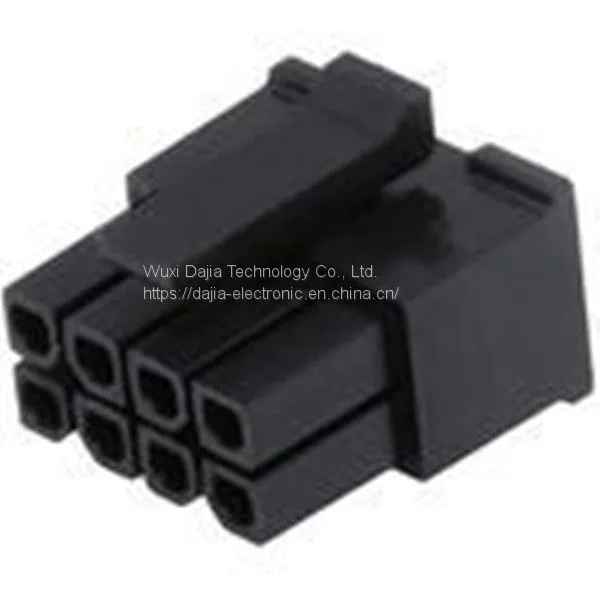

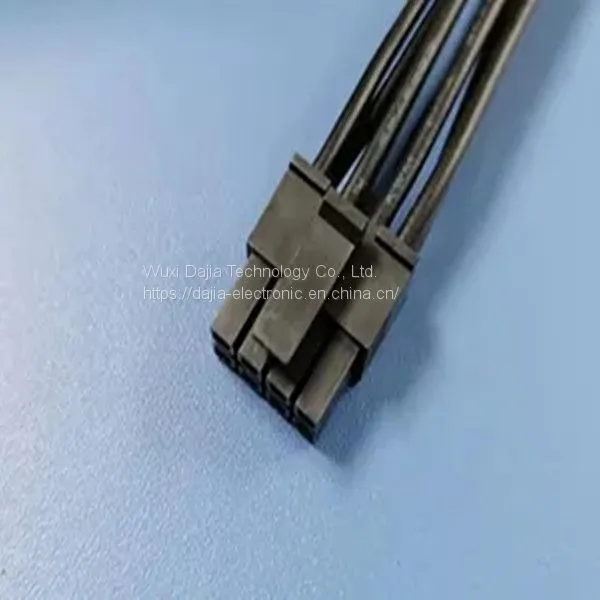

Micro-Fit 3.0 Receptacle Housing, Dual Row, 8 Circuits, UL 94V-0, Low-Halogen, Black 430250800
US$ 0.25 - 0.279
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
molex
Place of Origin:
Mexico
Model Number:
430250800
Payment & Shipping
Payment Methods:
Port of Shipment:
depend on customer
Delivery Detail:
1 days
Related Products
-
Micro-Fit 3.0 Plug Housing Dual Row 8 Circuits UL 94V-0 Panel Mount Ears Low-Halogen Black 430200800US$ 0.3 - 0.33MOQ: 100 Pieces -
Micro-Fit 3.0 Receptacle Housing, Single Row, 2 Circuits, UL 94V-0, Low-Halogen, Black 436450200US$ 0.159 - 0.167MOQ: 100 Pieces
-
Molex 22-01-3047 22013047 2.54mm Pitch Molex 4pin ConnectorUS$ 0.05 - 0.08MOQ: 100 Pieces
-
Molex 39000038 Mini-Fit Female Crimp Terminal, Tin (Sn) Over Copper (Cu) Plated Brass, 18-24, 22+22 AWG, ReelUS$ 0.028 - 0.035MOQ: 100 Pieces
-
Molex 330123001 MX150 Female Terminal for Mat-Sealed Connectors, Tin Plating, 14 and 16 AWG, Left Reel PayoffUS$ 0.05 - 0.08MOQ: 100 Pieces
Brand Name
molex
Place of Origin
Mexico
Model Number
430250800
| Physical | |
|---|---|
| Color | Black |
| Contact Material | Bronze, Tin |
| Contact Plating | Tin |
| Housing Color | Black |
| Housing Material | Polyester |
| Material | Polyester |
| Mount | Cable, Free Hanging |
| Number of Pins | 2 |
| Technical | |
| Connector Type | Power, Rectangular |
| Contact Gender | Female |
| Contact Resistance | 10 mΩ |
| Current Rating | 5 A |
| Gender | Receptacle |
| Insulation Resistance | 1 GΩ |
| Max Operating Temperature | 105 °C |
| Max Voltage Rating (AC) | 600 V |
| Max Voltage Rating (DC) | 600.6 kV |
| Min Operating Temperature | -40 °C |
| Number of Circuits | 8 |
| Number of Contacts | 8 |
| Number of Poles | 8 |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Schedule B | 8536695050 |
| Termination | Crimp |
| Voltage Rating | 250 V |
| Voltage Rating (AC) | 250 V |
| Voltage Rating (DC) | 250 V |
| Working Voltage | 250 V |
| Dimensions | |
| Depth | 14 mm |
| Length | 12.85 mm |
| Pitch | 3 mm |
| Width | 11.56 mm |
| Compliance | |
| Approvals | CSA, TUV, UL |
| Flammability Rating | UL94 V-0 |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | Unknown |
| RoHS | Compliant |
