Home > Products > Molex connector > Micro-Fit 3.0 Crimp Terminal, Female,molex,43030-0005,connector

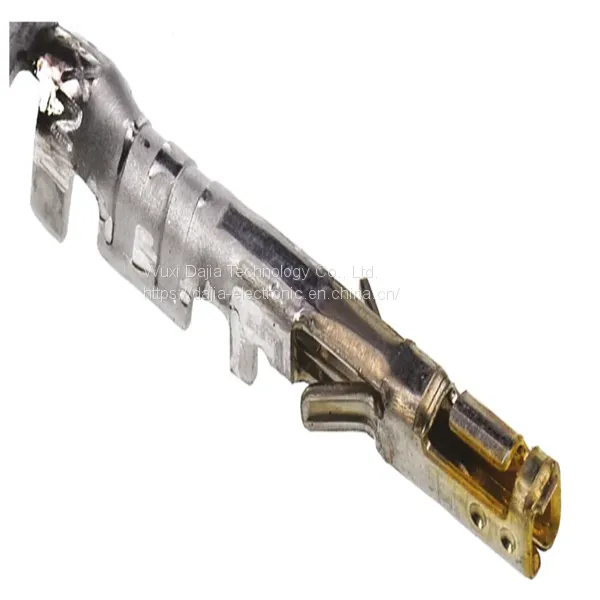

Micro-Fit 3.0 Crimp Terminal, Female,molex,43030-0005,connector
US$ 0.075 - 0.078
/ Piece
100 Pieces(Min. Order)
- depend on customer
- T/T
- 1 days
You May Like
-
Micro-Fit 3.0 Receptacle Housing, Dual Row, 8 Circuits, UL 94V-0, Low-Halogen, Black 430250800
-
Micro-Fit 3.0 Plug Housing Dual Row 8 Circuits UL 94V-0 Panel Mount Ears Low-Halogen Black 430200800
-
Micro-Fit 3.0 Receptacle Housing, Single Row, 2 Circuits, UL 94V-0, Low-Halogen, Black 436450200
-
Molex 22-01-3047 22013047 2.54mm Pitch Molex 4pin Connector
-
Molex 39000038 Mini-Fit Female Crimp Terminal, Tin (Sn) Over Copper (Cu) Plated Brass, 18-24, 22+22 AWG, Reel
-
Molex 330123001 MX150 Female Terminal for Mat-Sealed Connectors, Tin Plating, 14 And 16 AWG, Left Reel Payoff
Product Details
| Brand Name | molex | Place of Origin | Mexico | |
| Model Number | 43030-0005 |
Product Description
| Physical | |
|---|---|
| Contact Material | Brass, Bronze, Gold, Nickel, Tin |
| Contact Plating | Gold |
| Housing Color | Black |
| Housing Material | Polymer |
| Mount | Cable, Through Hole |
| Plating | Tin |
| Technical | |
| Connector Type | Connector, PCB, Power, Signal, Socket |
| Contact Gender | Female |
| Contact Resistance | 10 mΩ |
| Current Rating | 3 A |
| Gender | Female |
| Max Current Rating | 5 A |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Contacts | 1 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Cut Tape (CT) |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 250 V |
| Dimensions | |
| Depth | 2.1 mm |
| Height | 1.91 mm |
| Length | 11 mm |
| Pitch | 3 mm |
| Wire/Cable Gauge | 30 AWG |
| Wire Gauge (Max) | 26 AWG |
| Wire Gauge (Min) | 30 AWG |
| Compliance | |
| Halogen Free | Low Halogen |
| REACH SVHC | Unknown |
| RoHS | Compliant |
