Ceramic Anilox Sleeves

Ceramic Anilox Sleeves thumbnail-1
Ceramic Anilox Sleeves thumbnail-2
Ceramic Anilox Sleeves thumbnail-3

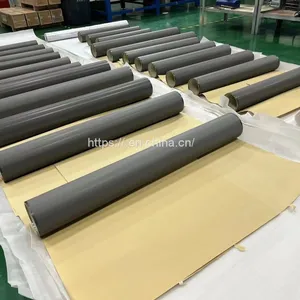

Ceramic Anilox Sleeves thumbnail-4
Ceramic Anilox Sleeves thumbnail-5
Ceramic Anilox Sleeves photo-1

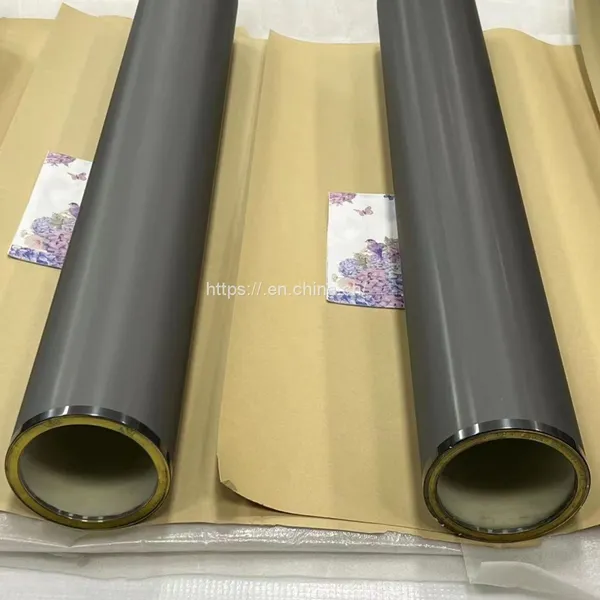

Ceramic Anilox Sleeves photo-2

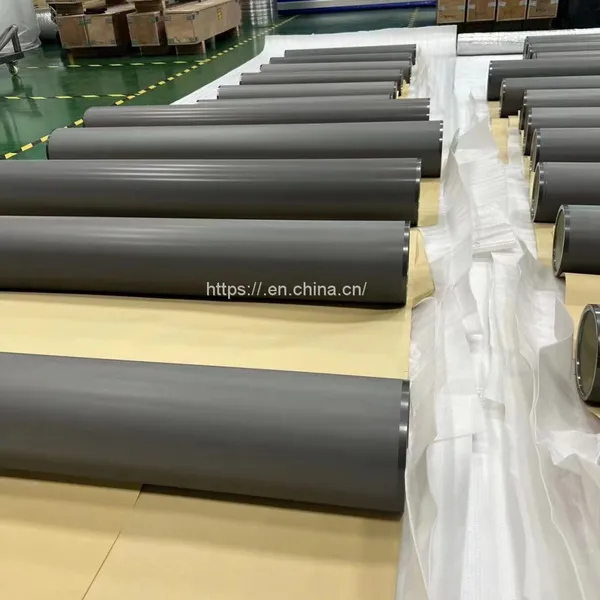

Ceramic Anilox Sleeves photo-3

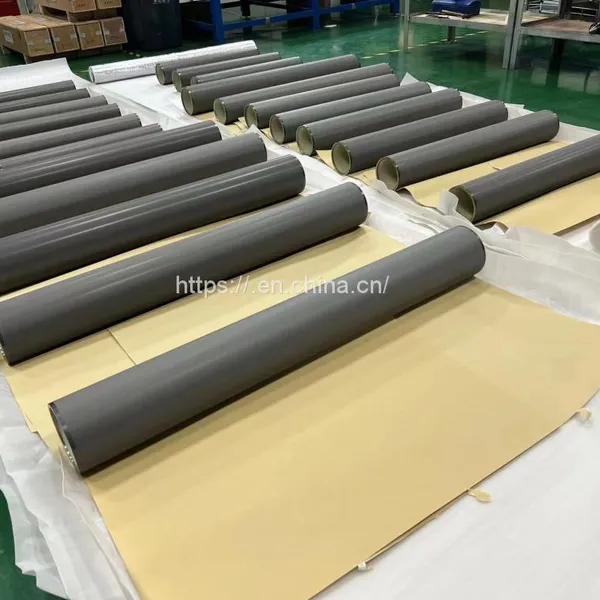

Ceramic Anilox Sleeves photo-4

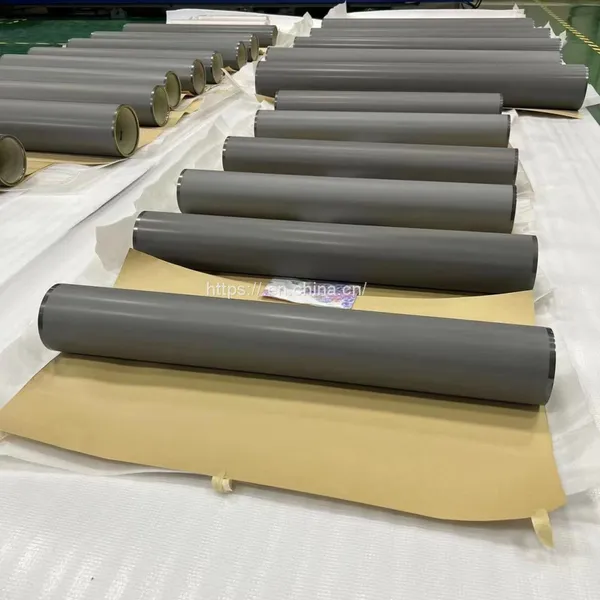

Ceramic Anilox Sleeves photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
After-sales Service Provided:
Overseas service center available
Contact Supplier Request Quote Chat Now
Herzpack(Shanghai) Machinery Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
After-sales Service Provided Overseas service center available
Overview
Essential details

  • Condition:




  • New

  • Warranty:

  • 1 Year

  • Applicable Industries:

  • Manufacturing Plant, Food & Beverage Factory

  • Weight (KG):

  • 18

  • Showroom Location:

  • Saudi Arabia, India, UAE

  • Video outgoing-inspection:

  • Provided

  • Machinery Test Report:

  • Provided

  • Marketing Type:

  • Ordinary Product

  • Place of Origin:

  • Shanghai, China

  • Brand Name:

  • Herzpack

  • Type:

  • Roller

  • Use:

  • W&H

  • Printing Type:

  • CI Flexo printing machine

  • Basic material:

  • 45# steel

  • Surface treatment:

  • thermal spraying

  • Application:

  • CI flexo printing machine

  • Delivery time:

  • 10-15 DAYS

  • After Warranty Service 1:

  • Video technical support

  • After Warranty Service 2:

  • Online support

  • After Warranty Service 3:

  • Spare parts

  • After Warranty Service 4:

  • Field maintenance and repair service

  • Local Service Location:

  • Saudi Arabia
Supply Ability

  • Supply Ability

  • 1000 Piece/Pieces per Month

Packaging & delivery

  • Packaging Details

    • wooden cases for exporting

  • Port

    • SHANGHAI

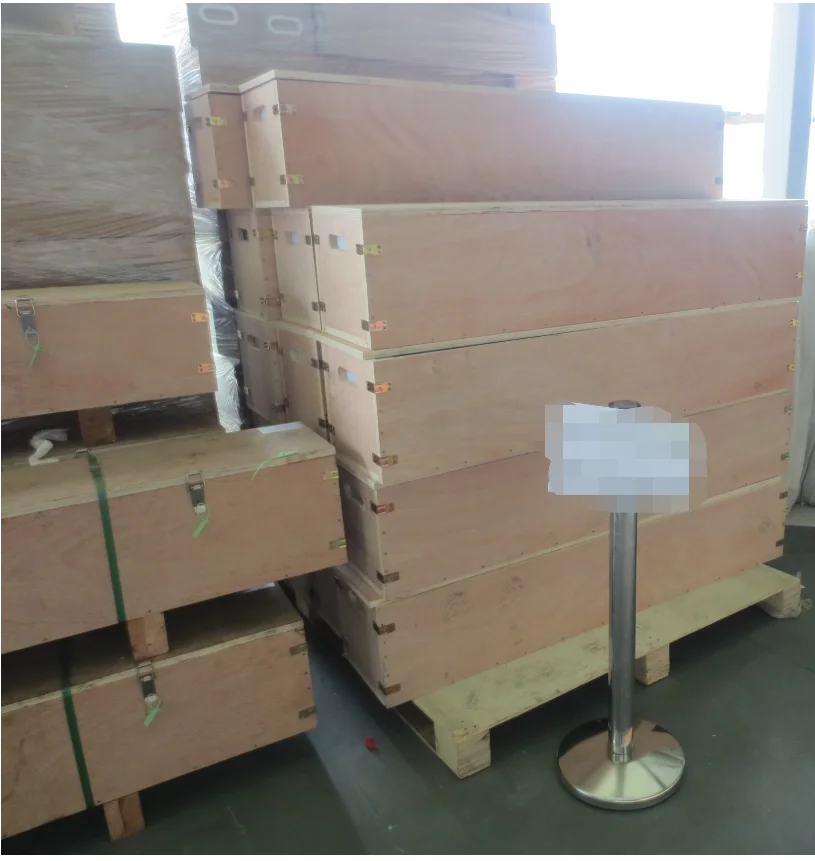

  • Picture Example:

    package-img

  • Lead time:

  • Quantity(pieces) 1 - 1 2 - 2 >2
    Lead time (days) 300 280 To be negotiated

Product Description:



Name: Ceramic anilox sleeve(Ink transfer sleeve)



Basic Material

45#Steel, aluminum alloy, Carbon fiber (or else as you required)
Surface Material Al2 O3, Cr2O3
Surface treatment Thermal spraying
Surface Thickness 0.25-0.3mm each side
Surface hardness HV1250-1300
Scereen line 30- 1500LPI
Screen Shapes 60°Hexagon,45°Helix, S shape, ART Pattern
Max roller diameter  600mm
Max roller length 4000mm surface length, 5250mm(with shaft head)
Application Label printing, paper bag printing, paper cup printing, plastic film printing, carton printing, coating, lamination etc.

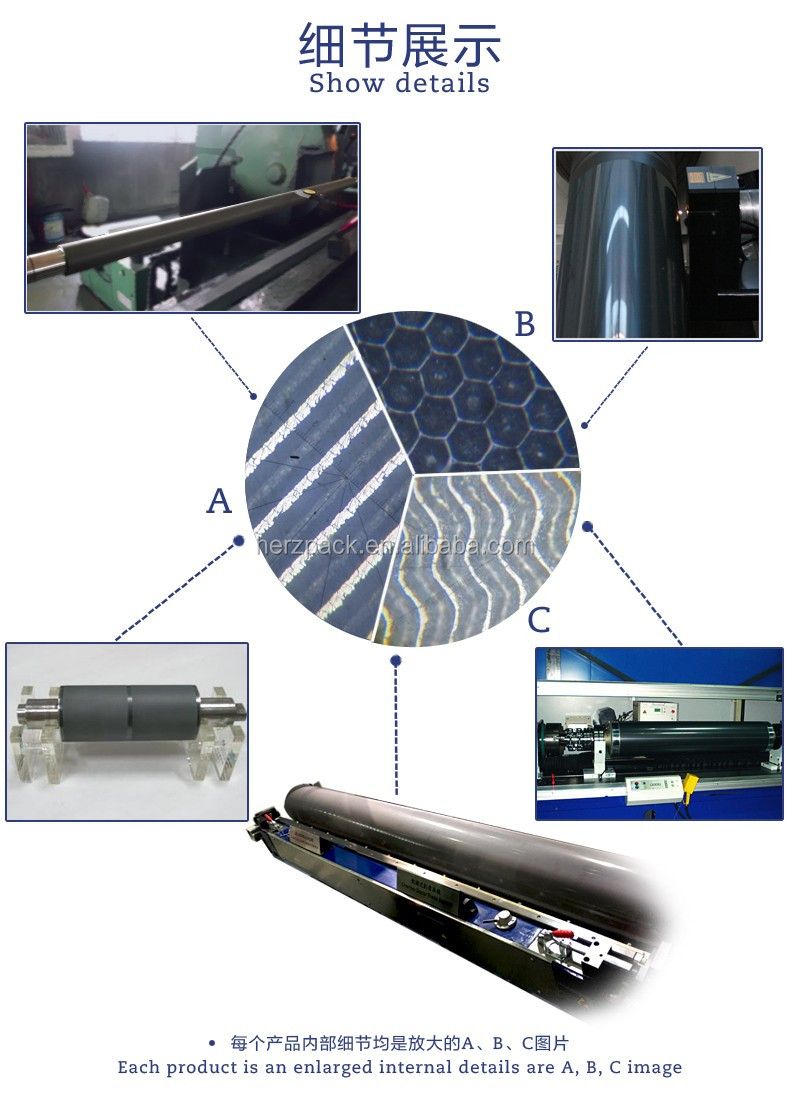

Flexo printing ceramic anilox sleeve

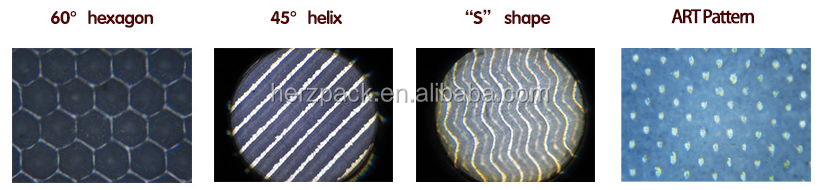

Cell Shapes:



Flexo printing ceramic anilox sleeve



Packaging &Shipping:

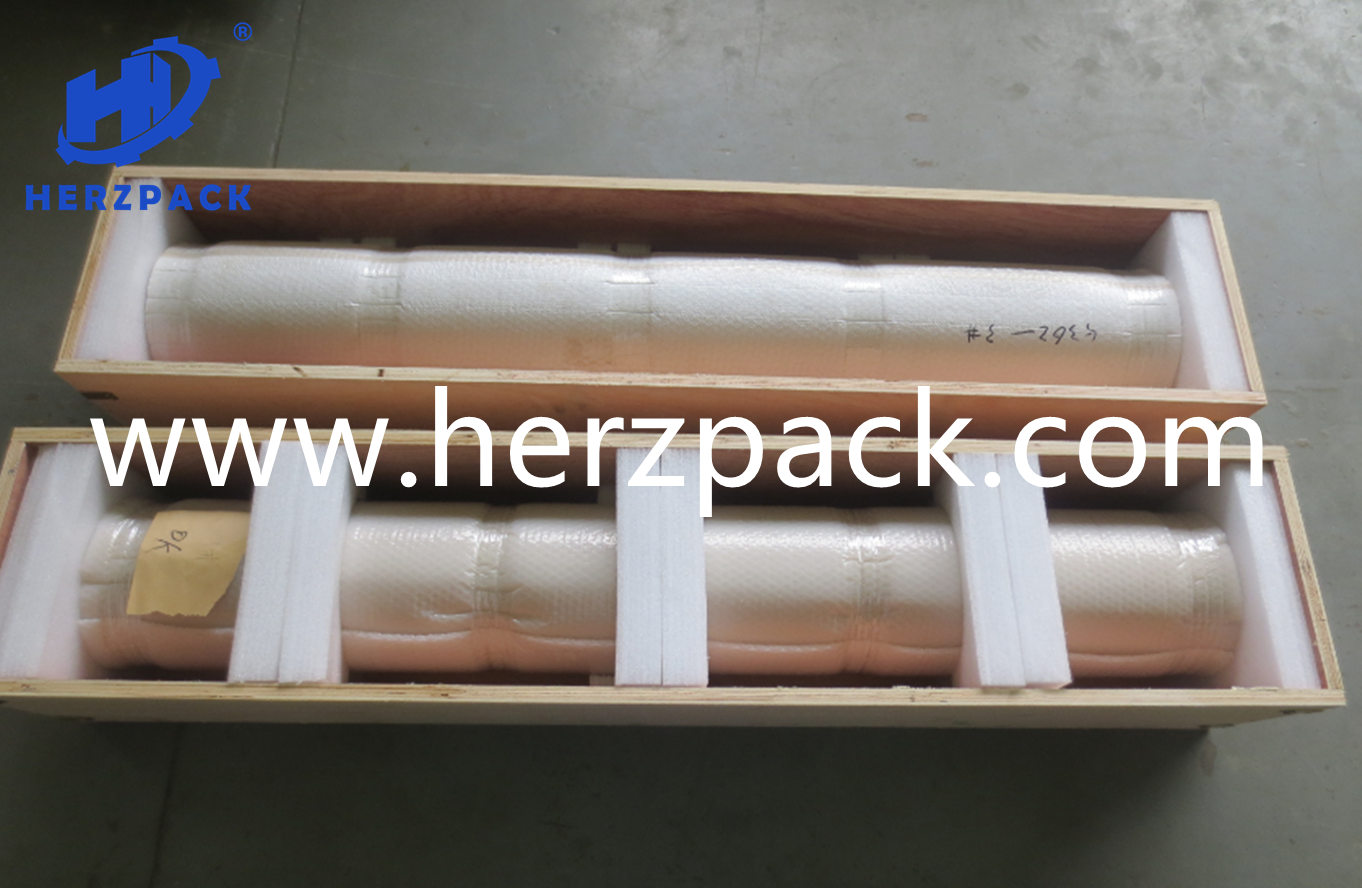

Protection anilox sleeves with export standard wooden cases

Flexo printing ceramic anilox sleeve



Shipping: By air or by sea, decided by customer



Our Service:



1. Help to make anilox drawing if you have no drawing.

 2. Help our customer choose the suitable lines according to your printing materials and performance


Product Tags: ceramic anilox sleeves , sleeves , flexo
