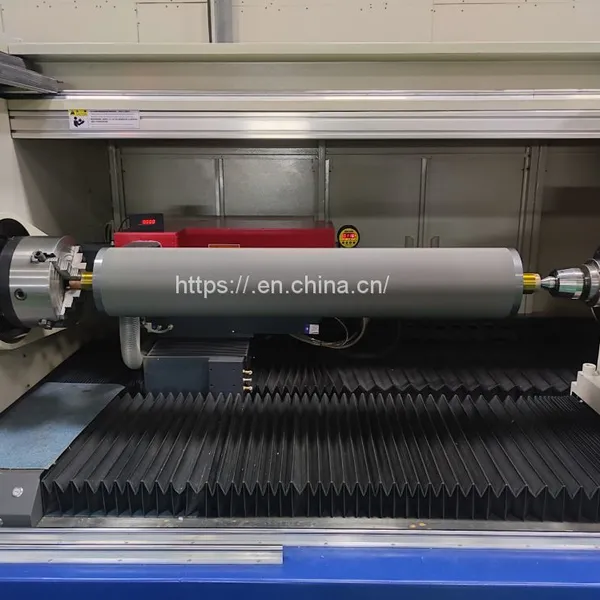

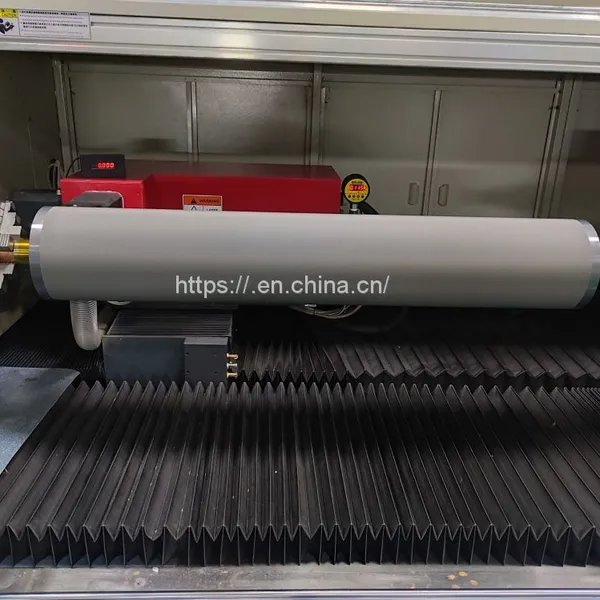

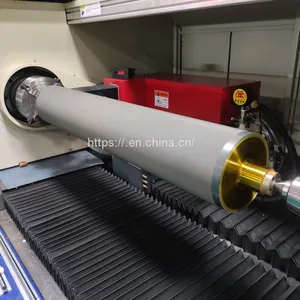

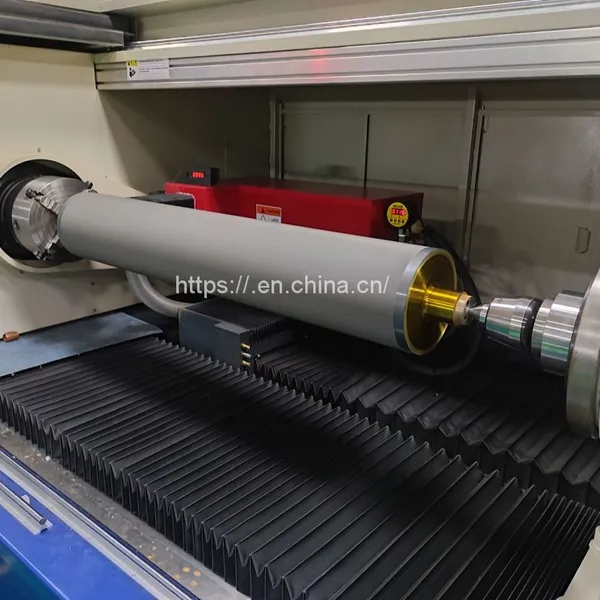

Laser Engraved Ceramic Anilox Roller

Laser Engraved Ceramic Anilox Roller thumbnail-1
Laser Engraved Ceramic Anilox Roller thumbnail-2
Laser Engraved Ceramic Anilox Roller thumbnail-3
Laser Engraved Ceramic Anilox Roller thumbnail-4
Laser Engraved Ceramic Anilox Roller photo-1
Laser Engraved Ceramic Anilox Roller photo-2
Laser Engraved Ceramic Anilox Roller photo-3
Laser Engraved Ceramic Anilox Roller photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
After-sales Service Provided:
Overseas service center available
Contact Supplier Request Quote Chat Now
Herzpack(Shanghai) Machinery Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
After-sales Service Provided Overseas service center available
Overview
Essential details

  • Place of Origin:

  • Shanghai, China

  • Brand Name:

  • Herzpack

  • Model Number:

  • Herzpack-001-0001

  • Type:

  • Roller

  • Use:

  • For Man Roland Printer

  • Printing Type:

  • Offset Printing Machine

  • Product Name:

  • ceramic anilox roller

  • Material:

  • 45# steel

  • Surface material:

  • Al2O3, Cr2O3

  • Surface Thickness:

  • 0.25-0.3mm each side

  • Surface Hardness:

  • HRC 70-72

  • Surface Treatment:

  • thermal spraying

  • Max length:

  • 5000mm

  • Cell pattern:

  • 60 degree hexagon;45 degree helix;S pattern;ART pattern

  • Screen line:

  • 80-1800LPI
Supply Ability

  • Supply Ability

  • 1000 Piece/Pieces per Month

Packaging & delivery

  • Packaging Details

    • wooden cases for exporting

  • Port

    • Shanghai

  • Lead time:

  • Shipped in 10 days after payment

Production Description:

laser engraved ceramic anilox roller



Cell Shapes:

laser engraved ceramic anilox roller

Application of Ceramic Anilox:

  • Flexographic Printing, Lithography Printing, Gravure Printing

  • Flexible Packing

  • Label, Envelope, Paper Forms, Handbag

  • Corrugated Box

  • Plastic Flim, Coated Paper Products, Glazing

  • Wallpapers, Wooden-patterned Paper, etc.

laser engraved ceramic anilox rollerlaser engraved ceramic anilox roller



laser engraved ceramic anilox roller

Adavantage:

Material Taking 45# steel,the roller is antifraying, anticorrosive, thermostability, longlife service and costsaving.
Laser Engraving Equipment Taking the most advanced ALE optical fiber laser engraving three machines, and its max power reaches 500 watt, and using "three beams"and "multi-beating" to generate cell which is deeper and smoother than that generated by the ordinary one. So it is benefit for the ink transfer.
Plasma Spraying Equipment Using Swiss-made SULZER three-negative-pole plasma spraying system, the coating quality is high and the porosity is low, and the micro-hardness may reach 1300-1450HV. After coating, we take the precision grinding-machine to process coating roller to guarantee the accuracy of it.
Cell Tester Adopting the advanced British-made tester, designed for Ceramic Anilox use, the cell tester can measure accurately the cell's volume,the cell size, the cell surface area, the cell depth,the cell cross-section angle and the cell's 3-D images.

laser engraved ceramic anilox roller   Laser Engraving Equipment





laser engraved ceramic anilox roller  Plasma Spraying Equipment





laser engraved ceramic anilox rollerCell Tester

laser engraved ceramic anilox roller

Certification and honor:

laser engraved ceramic anilox roller

laser engraved ceramic anilox rollerlaser engraved ceramic anilox roller

laser engraved ceramic anilox rollerContact us:



laser engraved ceramic anilox roller


Product Tags: ceramic anilox roller , laser engraved
