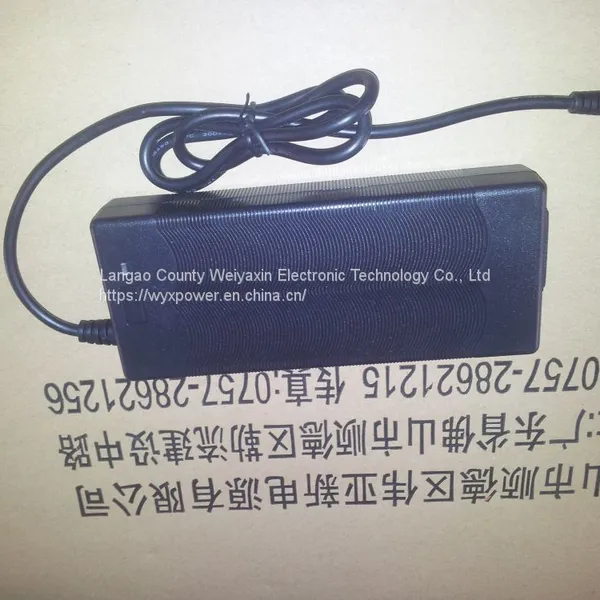

Help CenterHaanxi Ankang Manufacturer Customized 12.6V10A Lithium Battery Charger With 3 Series of High-power Lithium Battery Chargers
Related Products
-
Manufacturer Customized Production of 10 Series of 42V2A Lithium Battery ChargersUS$ 7 - 9MOQ: 100 Units -
Manufacturer Customized 16.8V5A Lithium Battery Charger and Electric Tool ChargerUS$ 7 - 9MOQ: 100 Pairs
-
12.6V3A Lithium Battery Charger Lithium Iron Phosphate Battery ChargerUS$ 5 - 7MOQ: 100 Pieces
-
Customized 29.4V4A Lithium Battery Charger, High-power ChargerUS$ 10 - 14MOQ: 10 Pieces
-
Customized 12V1A Power Adapter, Set-top Box Power Supply, Small Home Appliance Power SupplyUS$ 2.5 - 3MOQ: 100 Pieces
Wide voltage input/no-load power:
Customizable voltage/full power charging function: At the beginning of constant current charging, the LED indicator light is red
When the lamp is charged to the rated voltage, it switches to the second stage of constant voltage charging, and the current gradually decreases. When the charging current reaches
When the current is turned on, the LED indicator light turns green, and the battery is now fully charged to 90% -95%, with a very low current
Continue charging until fully charged.
Detailed introduction:

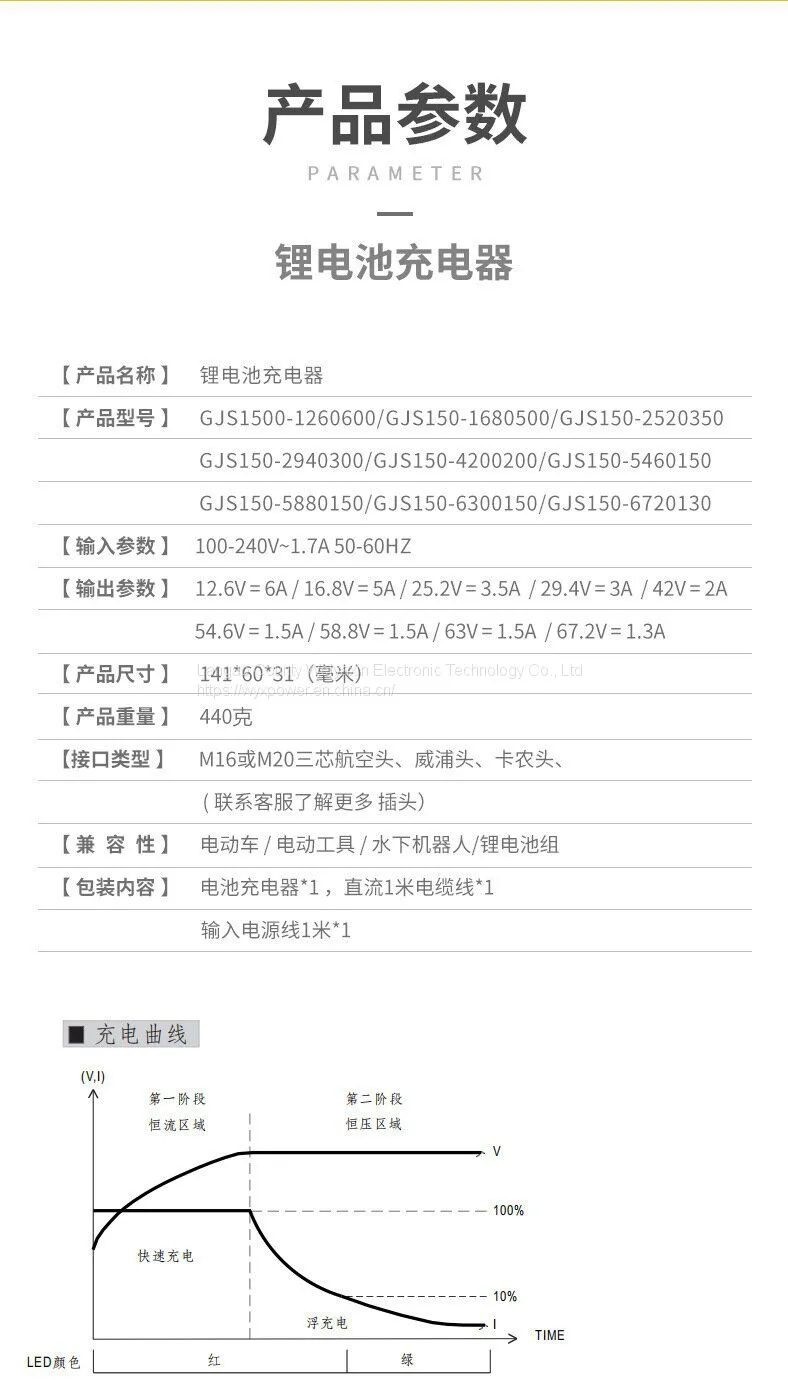

Specifications
Input voltage 100-240 VAC
Input frequency 50-60Hz (Limits: 47-63 Hz)
Input current 0.8A Max
Leakage current 0.25mA Max. @ 240VAC/50Hz
Output voltage 12.6V
Output current 3A
Output power 60W
Ripple 1%
Overvoltage protection available
Overcurrent protection is available and can be automatically restored
Short circuit protection is available, and can be automatically restored when the short circuit is released
Working temperature 0 ℃~+40 ℃
Storage temperature -40 ℃~+85 ℃
Working humidity 5% to 95% full load
Typical values of start time/hold time/rise time: 3000mS/16mS/50mS full load
Linear adjustment ± 1%
Current adjustment 5%
Insulation level input to ground with a minimum of 50 megohms
Surge current: When the output is rated load, the ambient temperature is 25 ℃, and the surge current when inputting a 240VAC cold start power supply is less than 30A
Withstand voltage 4242VDC
Service life 100000 hours
Safety standard (A) UL60950-1; CSA C22.2（B）EN60950-1； IEC60950-1
Warranty period of 3 years
Send Inquiry to This Supplier
