Home > Industrial Equipment & Components > Fastener & Fitting > Screw > Captive Screw YD-F5 Series Flush-mounted Panelflat-headPhillips

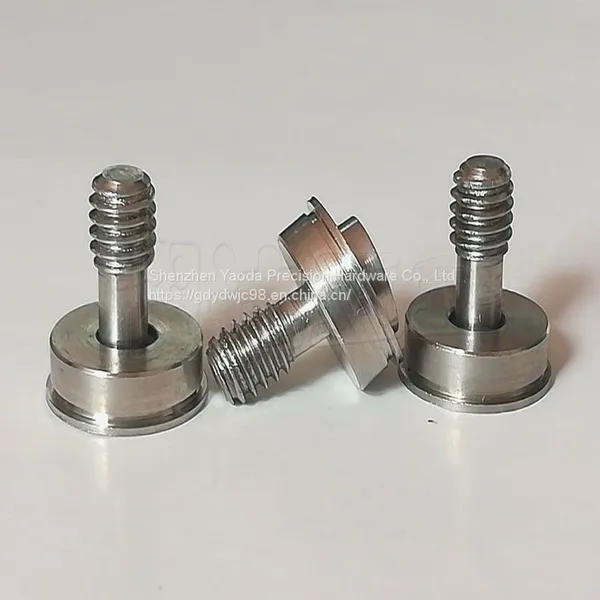

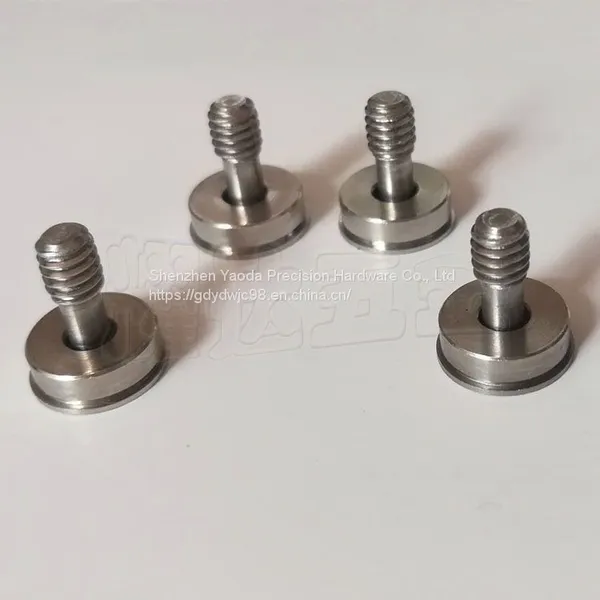

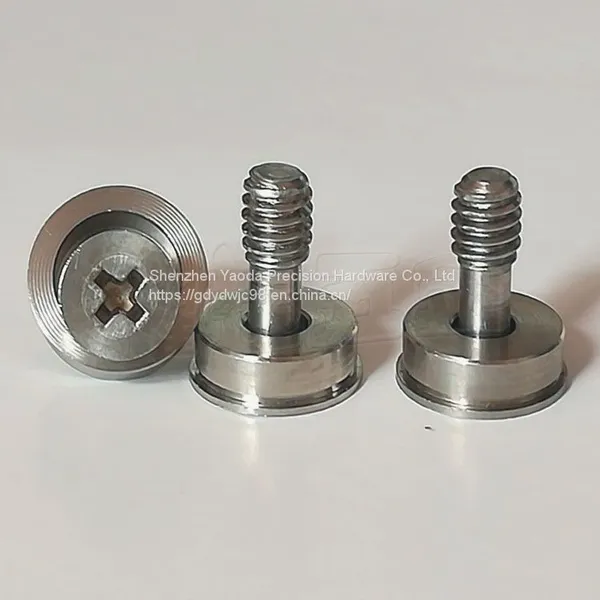

Captive Screw YD-F5 Series Flush-mounted Panelflat-headPhillips
US$ 0.1 - 0.5
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
Yaoda
Place of Origin:
China
Model Number:
YD -F5
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
7 days
Related Products
-
Captive Knurled Screw 52 Series Miniature Fastening Stainless SteelUS$ 0.7 - 1MOQ: 100 Pieces -
Knurled Nut N7 Series Bonded Stainless Steel Aluminum Knurled Nut N7US$ 0.1 - 1MOQ: 100 Pieces
-
Miniature Captive Knurled Screw 52 SeriesUS$ 0.7 - 1MOQ: 100 Pieces
-
Captive Knurled Screw YD-47/4C SeriesUS$ 0.8 - 1.2MOQ: 100 Pieces
-
Captive Screw YD-51/53/58 Series Flat-head Slotted Stainless SteelUS$ 0.1 - 1MOQ: 100 Pieces
Brand Name
Yaoda
Place of Origin
China
Model Number
YD -F5
Standard
GB
DESCRIPTION
Applications：flush-mounted panel
Head：flat-head
Drive type：Phillips
Materials：stainless steel
Other characteristics：captive, fast lead thread
Diameter：3 mm, 4 mm (0.12 in)
Length：Max.: 11.6 mm (0.46 in)；Min.: 8.4 mm (0.33 in)

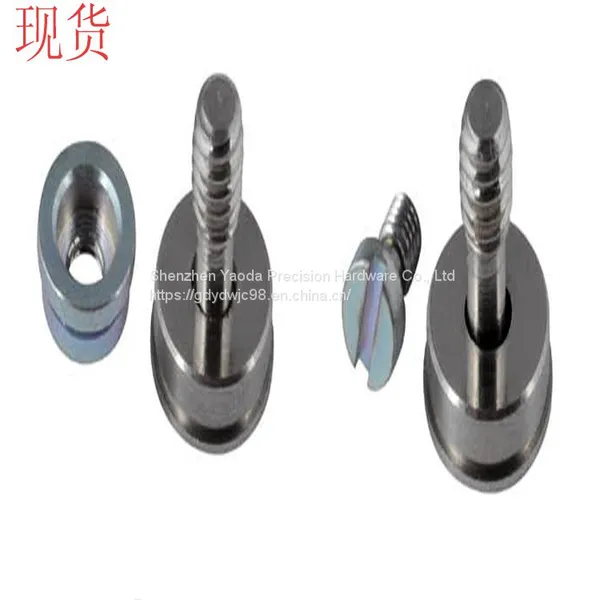

Deliver captive screw solutions for applications where there is minimal space above the face of the panel, or where a flush-mount look is desired, by using this low-profile shell and mounting screw. For use in most aluminums or in low-carbon steels that are 1/4 hard or softer. Flush mount screws install in panels as thin as 1.3 mm (.05"). Screw fastens into a threaded insert or other threaded receptacle. Flush when fastened Screw retention method prevents removal of screw from captivated shell Installs in one step as a self-clinching assembly, no secondary installation procedures required All stainless steel construction provides corrosion resistance Screws float 0.5 mm (.02") total movement to provide some play for easier alignment Available Options Available in multiple standard thread sizes and screw lengths to suit application requirements - including M3, M4, 4-40, 6-32, 8-32 Available with choice of slotted or Phillips recess actuation Industry Applications Aerospace Computers Electronic Enclosures Exhibits/Signs Food Equipment HVAC Medical Networking Telecommunications Vending Machines
