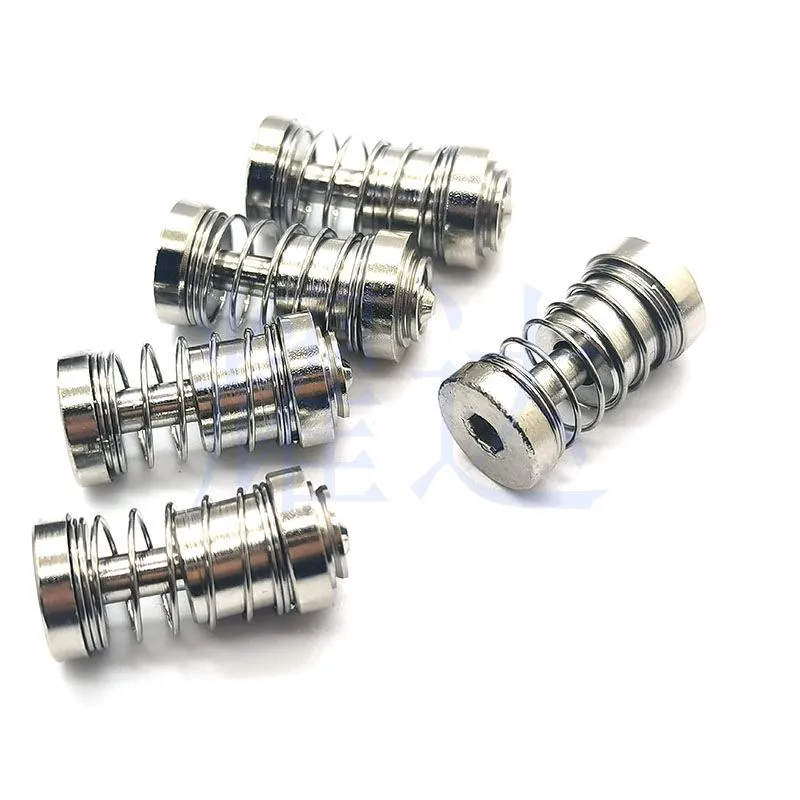

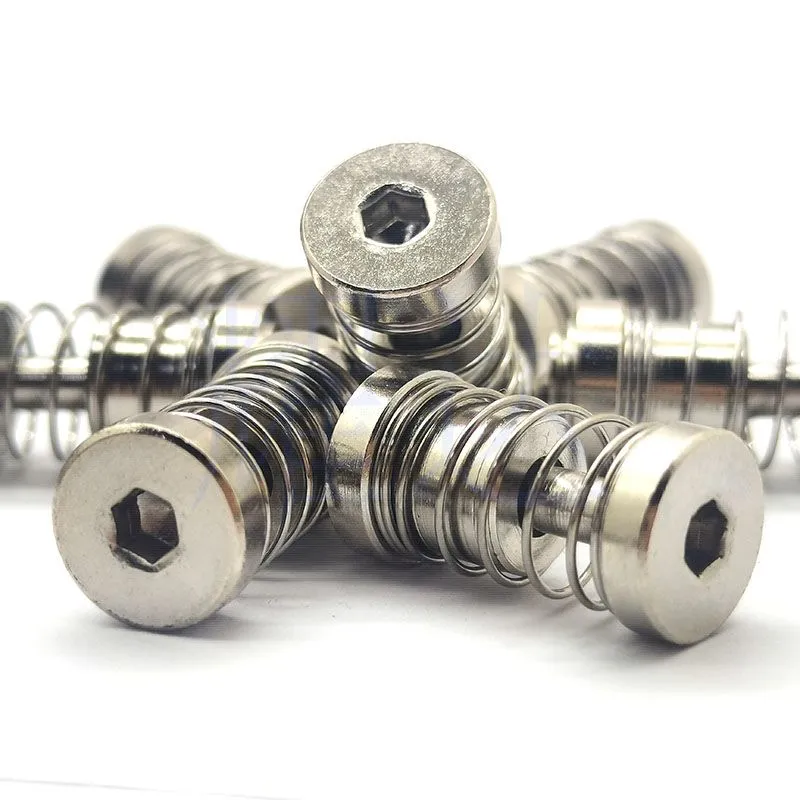

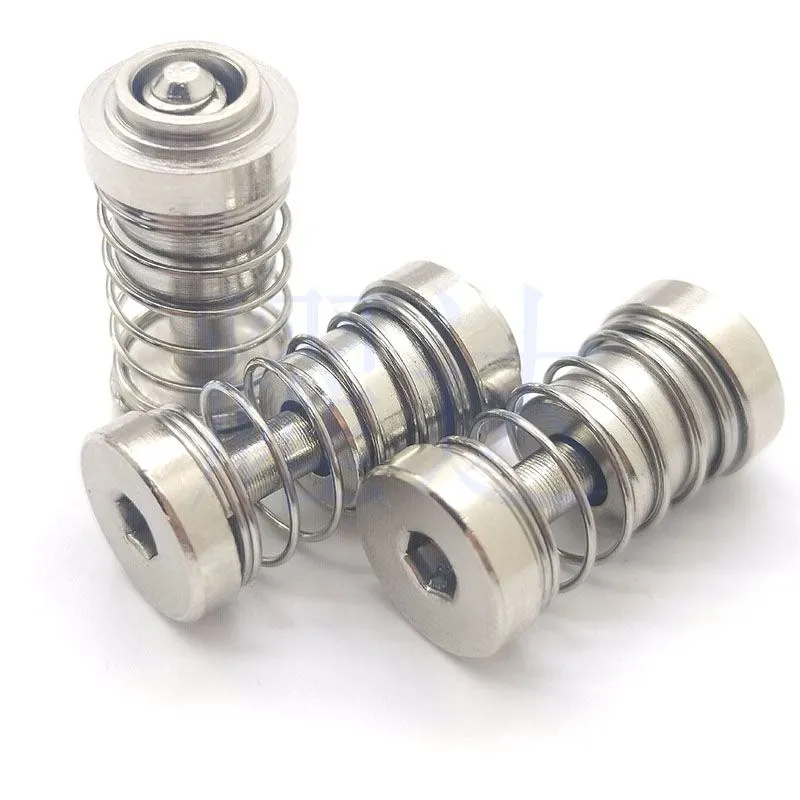

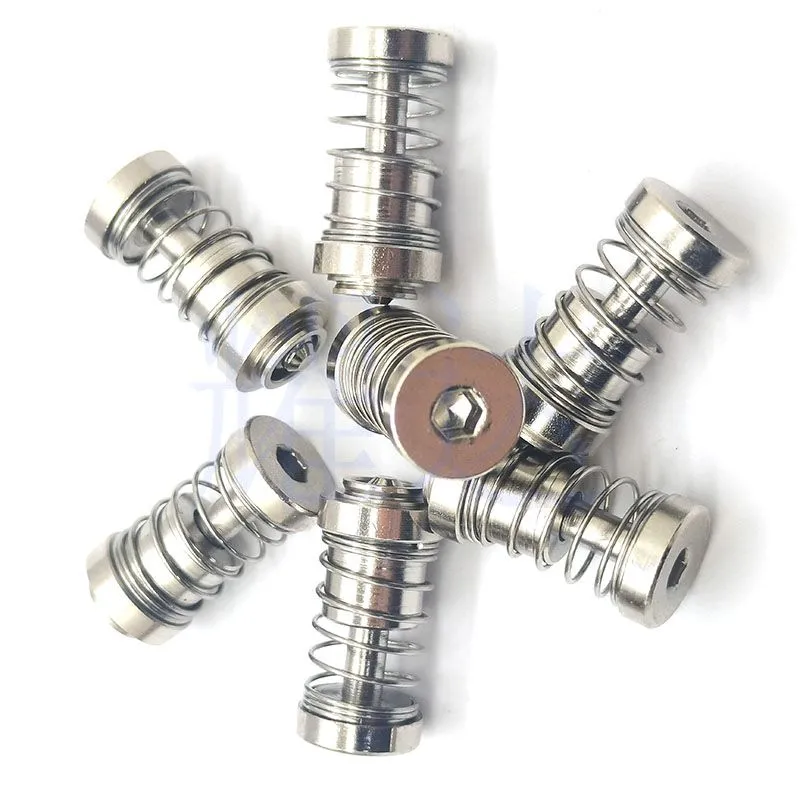

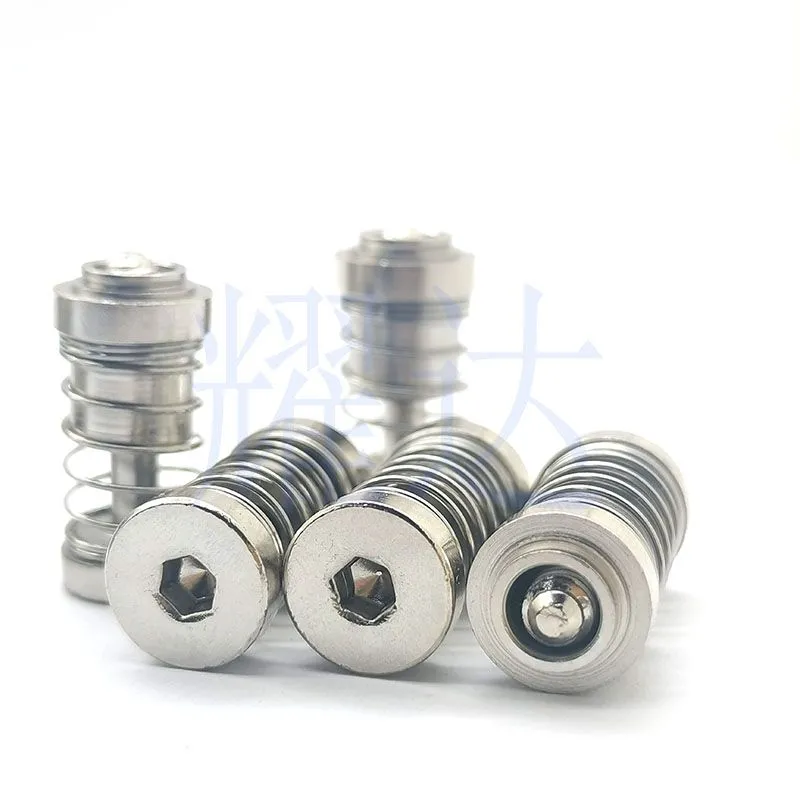

YD5T - Heat Sink Captive Screws
Maintain consistent mechanical fastening and optimize heat-transfer performance between microprocessor and heat sink assemblies. Yaoda YD5T Heat Sink Screws are designed to compensate for less-than-perfect alignment between microprocessor and circuit board and to allow for thermal expansion.
A captive spring-loaded design helps maintain a positive mechanical connection with a set preload, even under conditions of shock, vibration, and thermal expansion.
Design adjusts to minor inconsistencies or non-planar condition between top surface of chip and PC board
A positive stop sets the preload up to a maximum of 5 lbf.
Captivated spring and screw prevent lost hardware or damage to circuit boards
Flare in captivation style compatible with most heat sink materials from 1.5 mm (.058") to 3.2 mm (.126")
Available Options
Multiple thread sizes – M3；M3.5；4-40；6-32
Multiple screw lengths accommodate various standoff dimensions and PC board inserts
Special installation tools are available for flaring standoffs. Order according to thread size
Industry Applications
Electronic Assemblies
Computers
Networking
Telecommunications
