Multiple online external machine parameters
brand
Yingpeng
Yingpeng
Yingpeng
Yingpeng
Yingpeng
model
BFKG-7.5（8.0D）
BFKG-7.5（10D）
BFKG-12（12D）
BFKG-12（14D）
BFKG-12（16D）
Number of horses
4 small horses
4 horses
5 pieces
6 pieces
Big 6
Applicable area
35-60㎡
55-85㎡
65-115㎡
85-145㎡
115-165㎡
Voltage
220V50Hz
220V50Hz
220V50Hz
220V50Hz
220V50Hz
Customized cooling capacity
8.0KW
10.0KW
12.0KW
14KW
16KW
Customized heat
9.0KW
11.0KW
14.0KW
16KW
18KW
IPLV（C）
six point four
six point three
six point four five
six point three five
six point three
External machine noise
45-56dB（A）
45-56dB（A）
45-56dB（A）
45-58dB（A）
45-58dB（A）
Size (mm)
1054*994*399
1054*994*399
900*1328*345
900*1328*345
900*1328*345
Liquid tube
Φ nine point five two
Φ nine point five two
Φ nine point five two
Φ nine point five two
Φ nine point five two
Tracheal (main pipe
Φ fifteen point eight eight
Φ fifteen point eight eight
Φ fifteen point eight eight
Φ fifteen point eight eight
Φ fifteen point eight eight
Tracheal (main pipe ≥ 30m)
Φ fifteen point eight eight
Φ fifteen point eight eight
Φ nineteen point zero five
Φ nineteen point zero five
Φ nineteen point zero five
Air duct configuration
One drag two three
One drag three
One drag three four
One drag four five
One drag five six
Ceiling configuration
One drag two
One drag two
One drag two three
One drag two three
One drag three four
Multiple online external machine parameters
brand
Yingpeng
Yingpeng
Yingpeng
Yingpeng
Yingpeng
model
BFKG-16（18D）
BLF-28（22D）
BLF-28（26D）
BLF-28（28D）
BLF-28（33D）
Number of horses
7 pieces
9 pieces
10 pieces
11 pieces
12 pieces
Applicable area
140-180㎡
160-200㎡
180-220㎡
220-240㎡
240-260㎡
Voltage
380V50Hz
380V50Hz
380V50Hz
380V50Hz
380V50Hz
Customized cooling capacity
18KW
22.4KW
26KW
28KW
33.5KW
Customized heat
20KW
25KW
28.5KW
31.5KW
37.5KW
IPLV（C）
six point two five
six point five
six point one five
six point one
six point one
External machine noise
45-58dB（A）
≤58dB（A）
≤60dB（A）
≤60dB（A）
≤60dB（A）
Size (mm)
900*1328*345
1120*1549*412
1120*1549*412
1120*1549*412
1120*1549*412
Liquid tube
≥30m
≥30m
≥30m
Tracheal (main pipe
Φ fifteen point eight eight
Φ twenty-two point two
Φ twenty-two point two
Φ twenty-eight point six
Φ twenty-eight point six
Tracheal (main pipe ≥ 30m)
Φ nineteen point zero five
Φ twenty-five point four
Φ twenty-five point four
Φ twenty-eight point six
Φ twenty-eight point six
Air duct configuration
One drag five six
One drag six seven
One drag seven eight
One drag eight nine
One drag of ninety
Ceiling configuration
One drag three four
One drag three four
One drag four five
One drag four five
One drag four five
Product Introduction:

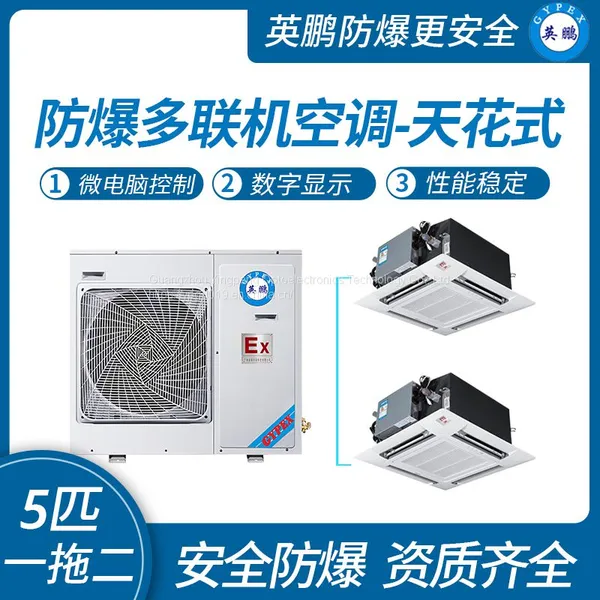

The Yingpeng explosion-proof air conditioning series models are processed and processed through explosion-proof technology, and are widely used in hazardous areas such as scientific research, petroleum, chemical, processing and manufacturing, and biology, where Class IIA and IIB combustible gases, steam, and air are mixed to form explosive atmospheres. They are temperature controlled air conditioning equipment designed for places with temperature control requirements.
The explosion-proof air conditioning series products have all passed the inspection of the explosion-proof electrical product quality supervision and testing center, and obtained the explosion-proof electrical equipment explosion-proof certificate: explosion-proof air conditioning unit CNEX12.1495/1496; It has beautiful appearance, reasonable design, and convenient installation and maintenance. The entire series of explosion-proof products are internally controlled by compressors, microcomputers, and digital displays, which have the advantages of low noise, stable performance, and easy operation. Deeply loved by customers in the special needs industry, and partially entered into designated procurement in the special needs industry.
The explosion-proof label of the entire explosion-proof air conditioning series is Exdibmb II BT4
The execution standards for this series of products are as follows:
GB3836.1-2010 Explosive Atmospheres - Part 1: General Requirements for Equipment
GB3836.2-2010 Explosive Atmospheres - Part 2: Equipment Protected by Flameproof Enclosures "d"
GB3836.4-2010 Explosive Atmospheres - Part 4: Equipment Protected by Intrinsically Safe "i"
GB3836.9-2006 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulated" m "
GB3836.15-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 15: Electrical Installation in Hazardous Areas (excluding Coal Mines)"
JB/10538-2005 "Explosion proof dehumidifiers and air conditioners"
Applicable scope:
1. This product is suitable for explosive environments such as petrochemical, metallurgical, textile, food, bioengineering, pharmaceutical, warehouse, aerospace engineering, and places with temperature control requirements;
Zone 2.1 and Zone 2 hazardous gas locations
3. Class IIA, IIB, IIC, T1-T4 explosive gas or steam environment;
4. Environmental temperature: -5 ℃~+43 ℃.
