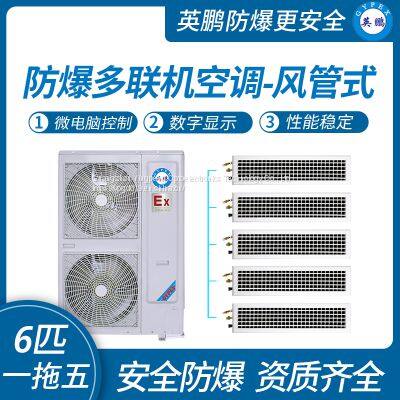

Guangzhou Yingpeng 6 horses with one trailer and three trailers

Multiple online external machine parameters

brand

Yingpeng

Yingpeng

Yingpeng

Yingpeng

Yingpeng

model

BFKG-7.5（8.0D）

BFKG-7.5（10D）

BFKG-12（12D）

BFKG-12（14D）

BFKG-12（16D）

Number of horses

4 small horses

4 horses

5 pieces

6 pieces

Big 6

Applicable area

35-60㎡

55-85㎡

65-115㎡

85-145㎡

115-165㎡

Voltage

220V50Hz

220V50Hz

220V50Hz

220V50Hz

220V50Hz

Customized cooling capacity

8.0KW

10.0KW

12.0KW

14KW

16KW

Customized heat

9.0KW

11.0KW

14.0KW

16KW

18KW

IPLV（C）

six point four

six point three

six point four five

six point three five

six point three

External machine noise

45-56dB（A）

45-56dB（A）

45-56dB（A）

45-58dB（A）

45-58dB（A）

Size (mm)

1054*994*399

1054*994*399

900*1328*345

900*1328*345

900*1328*345

Liquid tube

Φ nine point five two

Φ nine point five two

Φ nine point five two

Φ nine point five two

Φ nine point five two

Tracheal (main pipe<30m)

Φ fifteen point eight eight

Φ fifteen point eight eight

Φ fifteen point eight eight

Φ fifteen point eight eight

Φ fifteen point eight eight

Tracheal (main pipe ≥ 30m)

Φ fifteen point eight eight

Φ fifteen point eight eight

Φ nineteen point zero five

Φ nineteen point zero five

Φ nineteen point zero five

Air duct configuration

One drag two three

One drag three

One drag three four

One drag four five

One drag five six

Ceiling configuration

One drag two

One drag two

One drag two three

One drag two three

One drag three four

Multiple online external machine parameters

brand

Yingpeng

Yingpeng

Yingpeng

Yingpeng

Yingpeng

model

BFKG-16（18D）

BLF-28（22D）

BLF-28（26D）

BLF-28（28D）

BLF-28（33D）

Number of horses

7 pieces

9 pieces

10 pieces

11 pieces

12 pieces

Applicable area

140-180㎡

160-200㎡

180-220㎡

220-240㎡

240-260㎡

Voltage

380V50Hz

380V50Hz

380V50Hz

380V50Hz

380V50Hz

Customized cooling capacity

18KW

22.4KW

26KW

28KW

33.5KW

Customized heat

20KW

25KW

28.5KW

31.5KW

37.5KW

IPLV（C）

six point two five

six point five

six point one five

six point one

six point one

External machine noise

45-58dB（A）

≤58dB（A）

≤60dB（A）

≤60dB（A）

≤60dB（A）

Size (mm)

900*1328*345

1120*1549*412

1120*1549*412

1120*1549*412

1120*1549*412

Liquid tube

≥30m<30m Φ nine point five two

<30m Φ nine point five two

<30m Φ nine point five two

≥30m<30m Φ twelve point seven

≥30m<30m Φ twelve point seven

Tracheal (main pipe<30m)

Φ fifteen point eight eight

Φ twenty-two point two

Φ twenty-two point two

Φ twenty-eight point six

Φ twenty-eight point six

Tracheal (main pipe ≥ 30m)

Φ nineteen point zero five

Φ twenty-five point four

Φ twenty-five point four

Φ twenty-eight point six

Φ twenty-eight point six

Air duct configuration

One drag five six

One drag six seven

One drag seven eight

One drag eight nine

One drag of ninety

Ceiling configuration

One drag three four

One drag three four

One drag four five

One drag four five

One drag four five

Product Introduction:

The Yingpeng explosion-proof air conditioning series models are processed and processed through explosion-proof technology, and are widely used in hazardous areas such as scientific research, petroleum, chemical, processing and manufacturing, and biology, where Class IIA and IIB combustible gases, steam, and air are mixed to form explosive atmospheres. They are temperature controlled air conditioning equipment designed for places with temperature control requirements.

The explosion-proof air conditioning series products have all passed the inspection of the explosion-proof electrical product quality supervision and testing center, and obtained the explosion-proof electrical equipment explosion-proof certificate: explosion-proof air conditioning unit CNEX12.1495/1496; It has beautiful appearance, reasonable design, and convenient installation and maintenance. The entire series of explosion-proof products are internally controlled by compressors, microcomputers, and digital displays, which have the advantages of low noise, stable performance, and easy operation. Deeply loved by customers in the special needs industry, and partially entered into designated procurement in the special needs industry.

The explosion-proof label of the entire explosion-proof air conditioning series is Exdibmb II BT4

The execution standards for this series of products are as follows:

GB3836.1-2010 Explosive Atmospheres - Part 1: General Requirements for Equipment

GB3836.2-2010 Explosive Atmospheres - Part 2: Equipment Protected by Flameproof Enclosures "d"

GB3836.4-2010 Explosive Atmospheres - Part 4: Equipment Protected by Intrinsically Safe "i"

GB3836.9-2006 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulated" m "

GB3836.15-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 15: Electrical Installation in Hazardous Areas (excluding Coal Mines)"

JB/10538-2005 "Explosion proof dehumidifiers and air conditioners"

Applicable scope:

1. This product is suitable for explosive environments such as petrochemical, metallurgical, textile, food, bioengineering, pharmaceutical, warehouse, aerospace engineering, and places with temperature control requirements;

Zone 2.1 and Zone 2 hazardous gas locations

3. Class IIA, IIB, IIC, T1-T4 explosive gas or steam environment;

4. Environmental temperature: -5 ℃~+43 ℃.
