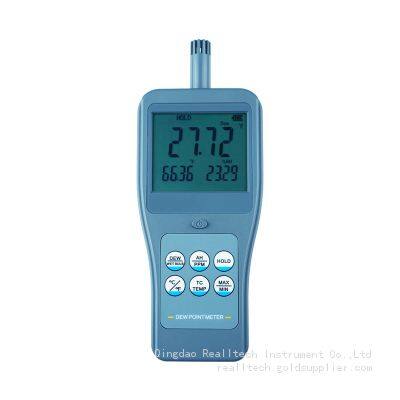

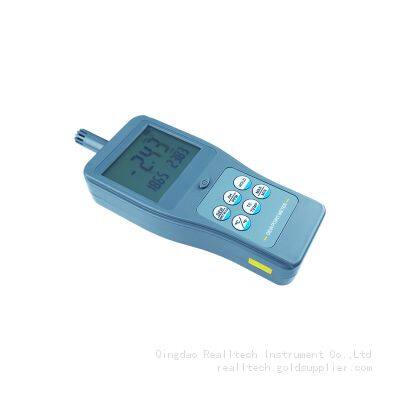

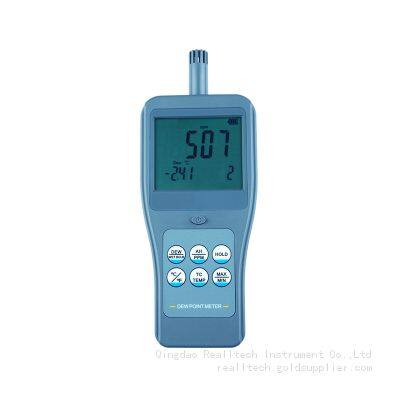

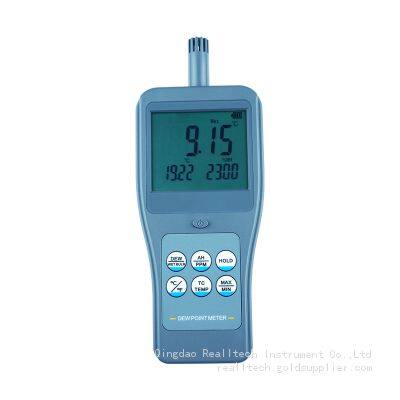

RTM-2612 Dew Point Meter and Thermocouple Surface Temperature Tester

Thermocouple Dew Point Meter RTM-2612

1.Introduction:

RTM-2612 is a high accuracy of professional dew point meter. It is able to measure Ambient Temperature, Dew Point Temperature, Wet Bulb Temperature, Relative Humidity, Absolute Humidity, PPM. It can quickly respond to temperature and humidity measurements in the industrial range. It is also capable of measuring temperature and humidity in a variety of complex environments. Widely used in laboratories, precision manufacturing, modern agriculture, meteorological measurement, chemical and pharmaceutical fields.

2.Features:

  •  Large LCD with display. It can display three values at the same time.

  •  Ambient Temperature measurement.

  •  Dew Point Temperature measurement.

  •  Wet Bulb Temperature measurement.

  •  Relative Humidity measurement.

  •  Absolute Humidity measurement.

  •  PPM measurement.

  •  Thermocouple Surface Temperature measurement.

  •  Temperature unit ( °C/°F).

  •  0.01 resolution, High accuracy.

  •  Maximum and minimum values display.

  •  With the displayed values hold function.

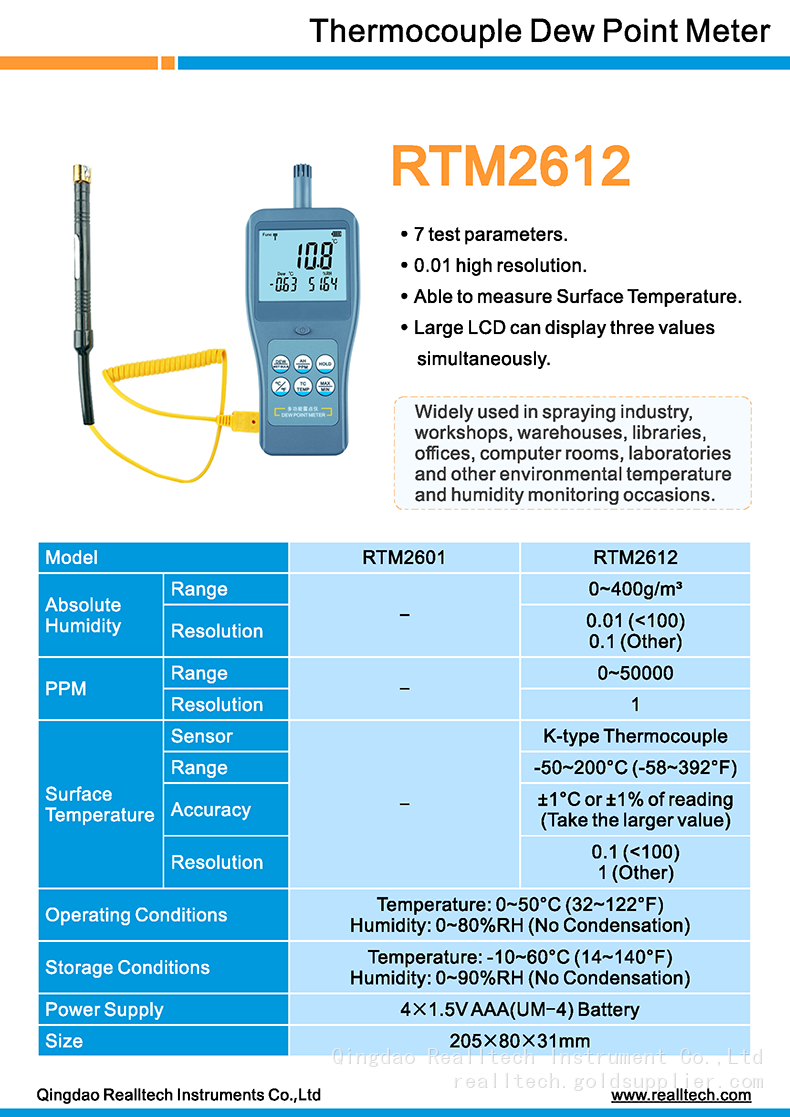

3.Specifications:

Display: Backlit LCD

Test Parameters: Ambient Temperature, Dew Point Temperature, Wet Bulb Temperature, Relative Humidity, Absolute Humidity, PPM, Thermocouple Surface Temperature

Range: Ambient Temperature: -30~120°C (-22~248°F)

            Relative Humidity: 0~100%RH

            Dew Point Temperature: -45~120°C (-49~248°F)

            Wet Bulb Temperature: -20~40°C (-4~104°F)

            Absolute Humidity: 0-400g/m³

            PPM: 0~50000

            Thermocouple Surface Temperature: -50~200°C (-58~392°F)  (-150-1372℃ can be customized)

Resolution: Ambient Temperature: 0.01, 0.1

                   Relative Humidity: 0.01

                   Dew Point Temperature: 0.01, 0.1

                   Wet Bulb Temperature: 0.01, 0.1

                   Absolute Humidity: 0.01, 0.1

                   PPM: 1

                   Thermocouple Surface Temperature: 0.1, 1

Temperature Unit: °C/°F

Operating Conditions: Temperature: 32°F~122°F (0°C~50°C); Humidity: <80%RH

Storage Conditions:Temperature: 14°F~140°F (-10°C~60°C); Humidity: <90%RH

Power: 4×1.5V AAA(UM-4) Battery

Size: 205×80×31mm

Weight: 186g (Not Including Batteries)

Standard Accessories: Main Unit ×1, TP-202 Thermocouple ×1, Manual ×1, Carrying Case ×1
