Home > Products > Resistance Thermometer > RT1561 High-precision PRTD Thermometer With Real-time Measurement Graph Display

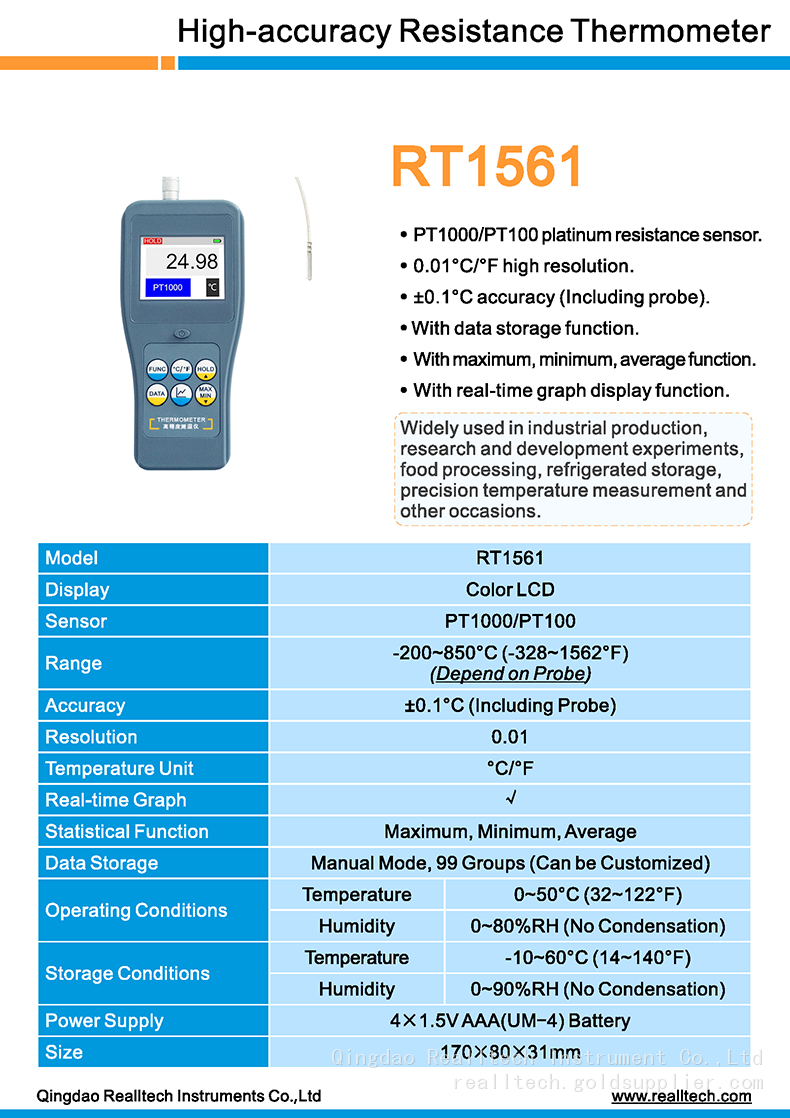

RT1561 High-precision PRTD Thermometer With Real-time Measurement Graph Display
- qingdao
- T/T
- 3 days
You May Like
-
RTM2610S Gas Dew Point Temperature Meter Digital Absolute Humidity Measuring Instrument
-
RD2680 Precision Enviromental Dew Point Meter Can Measure 10 Parameters
-
RD2680S Precision Dew Point Meter (Separate Sensor for Gas) With Real-time Graph Display
-
RD2630 High-accuracy Dew Point Temperature Tester With Data Storage Function
-
RD2630S High-accuracy Air Dew Point Meter With Separate Sensor 0.01 Resolution
-
RAW900 High-precision Water Activity Meter 0.010aw Measuring Accuracy
Product Details
| Brand Name | REALLTECH | Place of Origin | China | |
| Model Number | RT1561 | Temperature Range | -200~850°C (-328~1562°F) | |
| Usage | Industrial | Theory | Resistance Thermometer | |
| Accuracy | ±0.1°C (Including Probe) |
Product Description
Introduction
Rt1561 is a high-precision RTD thermometer that uses PT1000 /Pt100 platinum thermal resistance as a sensor to measure temperature signals. Large Color LCD display, 0.01°C high resolution, accuracy up to ±0.1°C. With real-time measurement graph display function. With data storage and view functions. Widely used in industrial production, research and development experiments, food processing, refrigerated storage, precision temperature measurement and other occasions.
Features
l Large color LCD with display.
l High-precision PT1000/PT100 platinum thermal resistance is used for temperature measurement.
l Temperature unit (°C/°F).
l 0.01 high resolution.
l Accuracy up to ±0.1°C.
l With real-time measurement graph display function.
l With data storage and view functions (99 Groups).
l With automatic statistics function of maximum, minimum and average values during the measurement period.
l With the displayed values hold function.
l With battery indication function.
l With automatic power off function.
Product Specifications
Display | Color LCD |
Type | Pt1000/PT100 Platinum Resistance |
Range | -200~850°C (-328~1562°F) (Depend on Probe) |
Accuracy | ±0.1°C (Including Probe) |
Resolution | 0.01 |
Sampling Channel | 1 Channel |
Unit | °C/°F |
Graph Display | Real-time Measurement Graph |
Data Storage Mode | Manual Mode, Data can be Viewed |
Data Storage | 99 Groups (Can be Customized) |
Statistical Functions | Maximum, Minimum, Average |
Auto Power Off | 10 Minutes (No Operation) |
Operating Conditions | Temperature: 0~50°C; Humidity: 0~90%RH (No Condensation) |
Storage Conditions | Temperature: -10~50°C; Humidity: 0~95%RH (No Condensation) |
Power Supply | 4×1.5V AAA(UM-4)Battery |
Size | 170*80*31mm |
Weight | 163g (Not Including Batteries) |
Standard Accessories
Main Unit | 1 |
PT-01A Probe | 1 |
Manual | 1 |
Carrying Case | 1 |
PT-01A Probe Specifications
Type | PT1000 |
Range | -50~200°C (-58~392°F) |
Size (φ*L) | 4*20mm |
Note：If other type of probe is needed, please specifying when placing order.
The warranty period is 12 months
