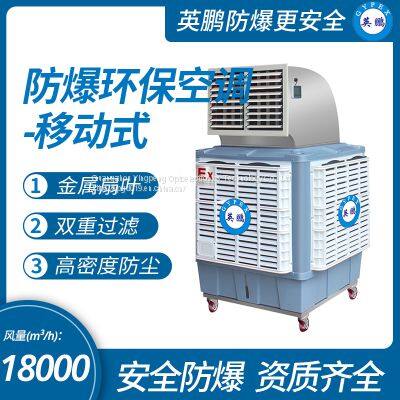

Guangzhou Yingpeng Explosion proof and Environmental Protection Air Conditioner - Mobile

Mobile explosion-proof and environmentally friendly air conditioning

Brand: Yingpeng

Type: Mobile explosion-proof and environmentally friendly air conditioning

Model: YPHB-18EX-YD

Air outlet: side air outlet, single air outlet, double air outlet

Air volume: 18000m ³/ h

Power: 1.1kw

Voltage/frequency: 380V/50HZ

Gear position: constant speed

Fan type: axial flow fan

Noise: ≤ 75dB

Storage capacity: 150L

Water consumption: 20-25 (L/H)

Air supply distance: 15-20 meters

Applicable area: 100-150 square meters

Net weight: 100kg

Explosion proof grade: ExxdibmbIICT4GB

model

YPHB-18EX

YPHB-23EX

YPHB-25EX

Air volume

18000m ³/ h

23000m ³/ h

25000m ³/ h

power

1.1KW

1.5KW

1.8kw

Voltage/Frequency

380V/50HZ

380V/50HZ

380V/50HZ

Gear position

Fixed speed

Fixed speed

Fixed speed

noise

≤75dB

≤75dB

≤78dB

Storage capacity

280L

280L

280L

water consumption

20-25（L/H）

20-25（L/H）

20-25（L/H）

Air supply distance

15-20 meters

15-20 meters

18-25 meters

Applicable area

100-150㎡

100-150㎡

100-150㎡

Gross Weight Approx

85kg

85kg

95kg

Size mm

1200*1200*1820

1200*1200*1820

1200*1200*1820

tuyere

Single outlet, side outlet, dual outlet

Single outlet, double outlet, multiple seals (six sided)

Explosion proof level

Ex d ib mb llC T4 Gb

1、 Purpose:

The YPHB series explosion-proof and environmentally friendly air conditioners (hereinafter referred to as air conditioners) produced by our company comply with the performance standards of GB/T7725 "Room Air Conditioners" and GB5956 "Safety Requirements for Electrical Equipment of Room Air Conditioners", and have passed various inspections. The explosion-proof requirements are made in accordance with the provisions of GB3836.1-2010 "Explosive Atmospheres - Part 1: General Requirements for Equipment", GB3836.2-2010 "Explosive Atmospheres - Part 2: Equipment Protected by Flameproof Enclosures", GB3836.4-2010 "Explosive Atmospheres - Part 4: Equipment Protected by Intrinsically Safe Type" i ", and GB3836.9-2006" Explosion proof Electrical Equipment for Explosive Atmospheres - Part 9: Encapsulated Type "m", The authorized quality supervision and inspection department has passed the inspection, and its explosion-proof mark is ExdibmbIIBT4 Gb. Suitable for areas in Zone 1 or Zone 2 where there is or may be Class IIA, IIB, T1 to T4 combustible gases, vapors, and air mixed in the factory. This product has passed the inspection of the explosion-proof electrical product quality supervision and inspection center and obtained an explosion-proof certificate. Explosion proof and environmentally friendly air conditioners are widely used in self enclosed indoor spaces with explosive gas mixtures in the air, such as petroleum, chemical, metallurgical, pharmaceutical, substation, scientific research, warehouse, laboratory, paint room, etc., for purifying air and regulating temperature (reducing or increasing temperature).

2、 Cooling principle:

The suction pump continuously pumps the cold water on the base to the wet curtain, using the physical characteristics of water evaporation and heat absorption to cool the air. The water curtain paper is used to increase the contact area with the air, and the air enters the machine for convective heat exchange with the water curtain and is cooled. Then, it is sent into the room through a fan.

3、 Internal structure: water storage base, thickened water curtain, dustproof filter screen, all copper motor, motor bracket, metal fan blades, water pump, drainage valve, float ball.

Pure copper core motor: The power is sufficient without adulteration, and the quality of the motor determines the service life of the machine.

Metal fan blades: resolutely do not use all plastic, high temperature resistance, safety, and larger air volume.

Thickening and densifying water curtain: a cooling tool. The water pump pulls ice water onto the wet water curtain, and hot air is sucked in through the ice curtain to turn into cold air.

High density dust screen: dual purification filtration, dual protection, and enhanced air purification.

Dual filtration water pump: Internal circulation pumping, clean water quality, and better effect.

4、 Place of use

The air conditioner can operate normally under the following environmental conditions

a. Atmospheric pressure: 80-110kPa;

b. Environmental temperature: outdoor -20 ℃~+40 ℃;

C. Relative humidity of the air: In humid months, the average monthly relative humidity shall not exceed 90%;

At the same time, the monthly average low temperature of the month is not higher than+25 ℃;
