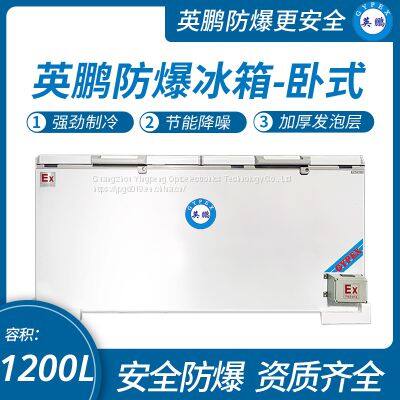

Guangzhou Yingpeng horizontal explosion-proof refrigerator 1200 liters

Detailed parameters

Model: Yingpeng BL-200WS1200L

Volume (L): 1200 (including step chamber)

Power (W): 518

Net weight (kg): 135

Power consumption (KW. h/24h): 8.30

Internal dimensions (width * depth * height): 2430 * 690 * 716mm

Overall dimensions (width * depth * height): 2575 * 930 * 945mm

Operating temperature (℃): 0 ℃ ≤ t ≤ 10 ℃ or -18 ℃ ≤ t ≤ 0 ℃

Explosion proof sign: ExdibmbIICT4Gb (explosion-proof level selected according to customer environment)

brand

Yingpeng

model

BL-200WS100L

BL-200WS200L

BL-200WS300L

BL-200WS400L

BL-200WS500L

BL-200WS680L

Power (w)

Around 200

one hundred and seventy-six

two hundred and three

two hundred and forty-six

three hundred and fifty

Effective volume (including mechanical room L)

one hundred

two hundred

three hundred

four hundred

five hundred

six hundred and eighty

refrigeration system

Direct cooling

temperature

0-10 ℃ or -25~0 ℃ (refrigerated/frozen single temperature conversion)

Appearance size (mm)

544*557*842

817*570*850

one thousand and eighty × seven hundred and forty-five × eight hundred and ninety-eight

one thousand three hundred and fifty × seven hundred and forty-five × eight hundred and ninety-eight

one thousand six hundred and twenty × seven hundred and forty-five × eight hundred and ninety-eight

one thousand eight hundred and eighty × seven hundred and forty-five × eight hundred and ninety-eight

Net weight (kg)

twenty-two

twenty-eight

fifty-one

sixty-two

seventy

seventy-nine

cryogen

R600a

R290

Explosion proof sign

Ex d ib mb IIC T4 Gb

brand

Yingpeng

model

BL-200WS800L

BL-200WS1000L

BL-200WS1580L

BL-200WS1800L

BL-200WS2400L

Power (w)

four hundred

four hundred and sixty

five hundred

six hundred

seven hundred

Effective volume (including mechanical room L)

eight hundred

one thousand

one thousand five hundred and eighty

one thousand and eight hundred

two thousand and four hundred

refrigeration system

Direct cooling

temperature

0-10 ℃ or -25~0 ℃ (refrigerated/frozen single temperature conversion)

Appearance size (mm)

two thousand two hundred and twenty × eight hundred and fifteen × nine hundred and ninety

two thousand six hundred and eighty × eight hundred and fifteen × nine hundred and ninety

two thousand four hundred and fifty × eight hundred and fifteen × one thousand and forty-five

two thousand nine hundred and ten × nine hundred and ninety × one thousand and forty-five

3680*990*1045

Net weight (kg)

one hundred and four

one hundred and fifteen

one hundred and fifty

one hundred and eighty

two hundred and thirty

cryogen

R290

Explosion proof sign

Ex d ib mb IIC T4 Gb

Advantages of Yingpeng horizontal explosion-proof refrigerator:

1. Large capacity refrigeration conversion: full refrigeration, full refrigeration switching mode, one space with two modes

2. Thickened foam box: The box is thickened all day long, resulting in denser foam and longer cold lock

3. Adopting branded compressors: fast cooling, low energy consumption, low noise, three-year warranty

4. Inner wall embossed aluminum plate: Inner buckle splicing technology is tightly sealed, and the aluminum plate is corrosion-resistant and durable

5. Mechanical thermostat: The higher the gear position, the lower the temperature, and the less likely the mechanical thermostat to be damaged, resulting in a longer lifespan

6. Balanced hinge: It is effortless to open and close the door, and multiple hinges balance the brake according to the safety requirements of Wu'an

7. Energy saving and power saving: Low power optimization, from the number of starts, cooling temperature, standby, insulation, layer by layer optimization, achieving low energy consumption and rational use of resources

Suitable for hazardous areas within Zone 1 (or Zone 2) of explosive gas mixtures with a temperature group of T4 and a Class IIC rating in petroleum, chemical, pharmaceutical, aerospace, laboratory, storage, and other departments. The BL series industrial grade integrated explosion-proof refrigerator is a Class IIC explosion-proof refrigeration system manufactured using integrated explosion-proof technology according to industrial environmental requirements.

The electronic temperature control system is adopted, and the electronic temperature controlled explosion-proof refrigerator is the second generation new product after the mechanical temperature controlled explosion-proof refrigerator. The main difference between electronic temperature controlled explosion-proof refrigerators and mechanical temperature controlled explosion-proof refrigerators lies in the temperature controller and its electrical circuit structure. The box structure and refrigeration working principle are roughly the same as mechanical temperature controlled refrigerators, and will not be repeated here.

Electronic temperature controlled stainless steel explosion-proof refrigerators are available in both direct and intercooled types, with a variety of control functions. In addition to controlling the start and stop of the compressor based on the temperature of the refrigeration and freezer, it can automatically display the temperature of the refrigeration and freezer. It also has functions such as automatic defrosting based on the thickness of the frost layer and the working time of the compressor, overvoltage protection, automatic deodorization, and language prompts. Generally speaking, electronic temperature control is more complex than mechanical temperature control. Both electronic and computer-controlled explosion-proof refrigerators are the latest applications of fuzzy control systems, solving the control problem of multifunctional explosion-proof refrigerators. However, due to the complexity of control, it also brings many inconveniences to maintenance personnel.

Most electronic temperature controllers use thermistor type temperature controllers (temperature sensors) because their temperature sensing probes have a smaller resistance as the temperature increases and a larger resistance as the temperature decreases. By utilizing this feature, the compressor can be started and stopped, thereby achieving circuit control.

The entire machine adopts internationally leading ultra-weak current technology to isolate intrinsically safe circuits. It has undergone special manufacturing processes and explosion-proof treatment. The design and manufacturing of the product strictly follow the relevant national standards:

GB 3836.1-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 1: General Requirements"

GB 3836.2-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 2: Flameproof Type" d "

GB 3836.3-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 3: Increased Safety" e "

GB 3836.4-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Intrinsically Safe" i "

GB 3836.9-2006 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulated" m "

The product surface adopts maximum surface temperature limit protection technology and comprehensive anti-static technology, as well as various safety protection technologies;

Voltage: 220V/50Hz;

Internal explosion-proof sign: Exdmib II-CT4.

If non-standard, various specifications and usage temperatures can be designed and produced according to user requirements.

This series also has 150 liters, 200 liters, 240 liters, 300 liters, 400 liters, 500 liters, 680 liters, 800 liters, 1000 liters, 1200 liters, 1580 liters, and 1800 liters;
