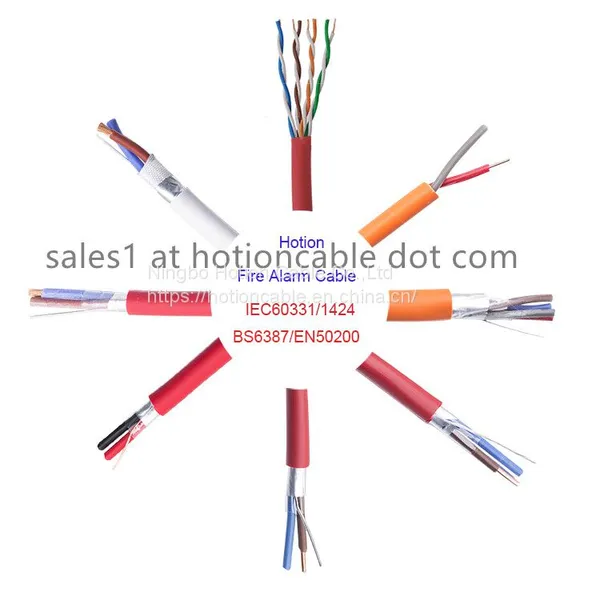

FIRE ALARM CABLE
Fire Resistant Type
Stranded Conductor BS6387 EN50200 PH30
KEY APPLICATIONS
Fire detection and fire alarm systems for buildings.
Voice alarm systems and emergency voice communication.
Emergency and escape lighting.
Control circuits for fire safety and fire fighting systems.
TECHNICAL DESCRIPTION
Operating Voltage 300/500V
Test Voltage(50Hz) 2.0kV
Conductor Stranded Bare Copper
Insulation Material Silicone Rubber
Jacket Material LSZH
STANDARDS
BS EN 50200 - PH30 Fire Resistant Test - Flame & Shock - 30 Minutes
BS EN 50200 - PH60 Fire Resistant Test - Flame & Shock - 60 Minutes
BS EN 50200 - PH120 Fire Resistant Test - Flame & Shock - 120 Minutes
BS 6387 Category CWZ Fire Resistant Test
TECHNICAL DATA
Number of cores |
Nominal cross section conductor [mm² |
Nominal jacket outer diameter [mm] |
Cable weight [kg/km] |
Conductor resistance at 20° C [Ohm/km] |
2 |
0.8 |
5.7 |
47.5 |
23.8 |
2 |
1.0 |
6.1 |
52 |
19.5 |
2 |
1.5 |
7.1 |
70 |
13.3 |
2 |
2.5 |
8.3 |
98.5 |
7.98 |
4 |
0.8 |
6.7 |
76.5 |
23.8 |
4 |
1.0 |
7.2 |
85.6 |
19.5 |
4 |
1.5 |
8.1 |
116 |
13.3 |
4 |
2.5 |
10.4 |
185 |
7.89 |
