Negative Pressure Method Leak Tester ASTM F2054

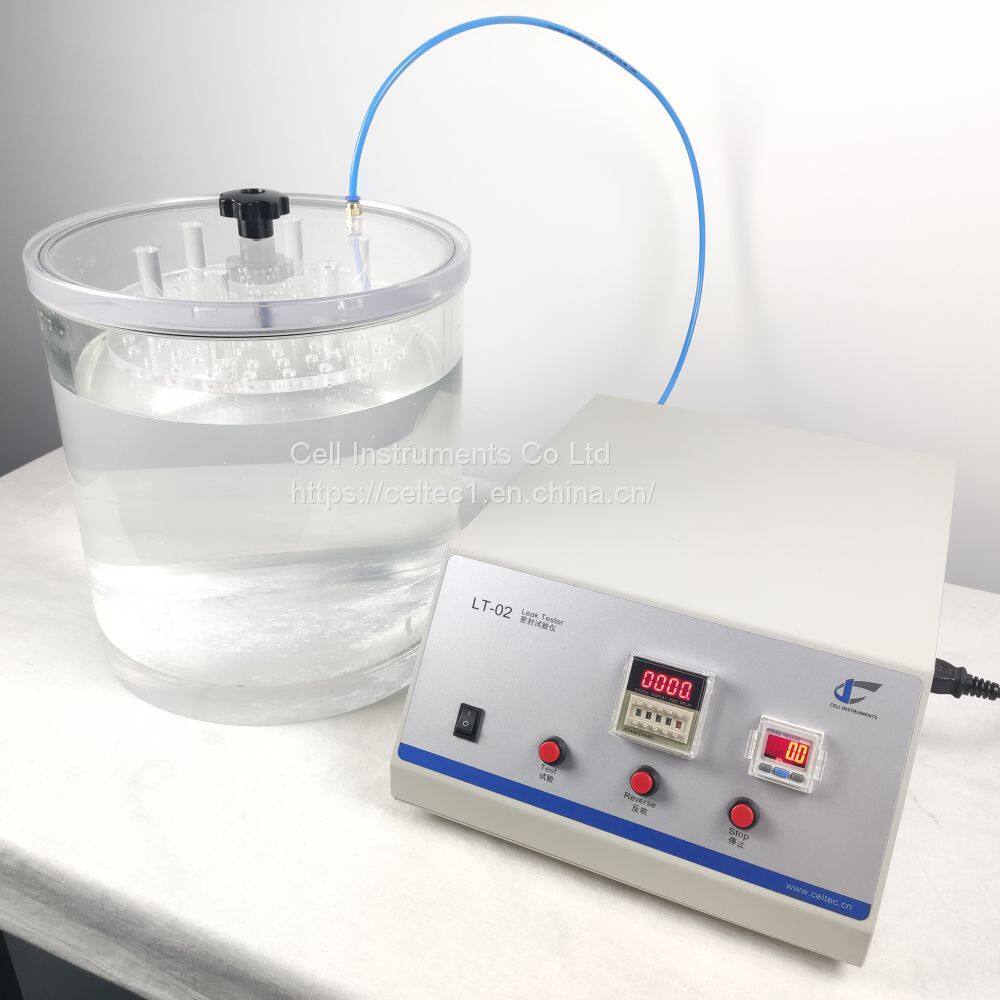

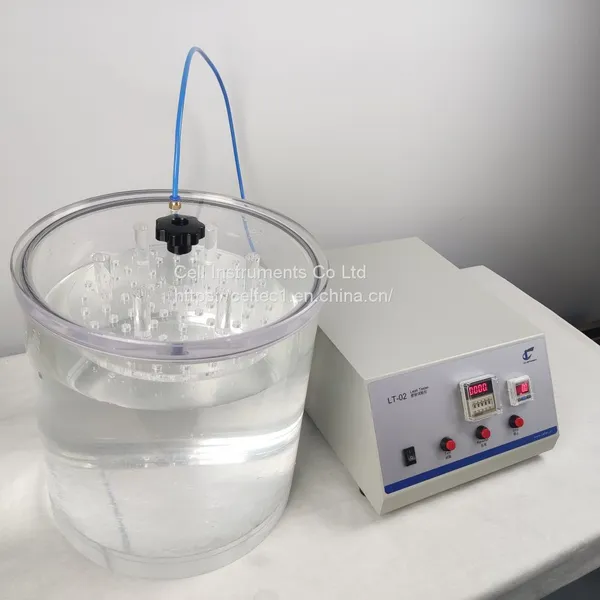

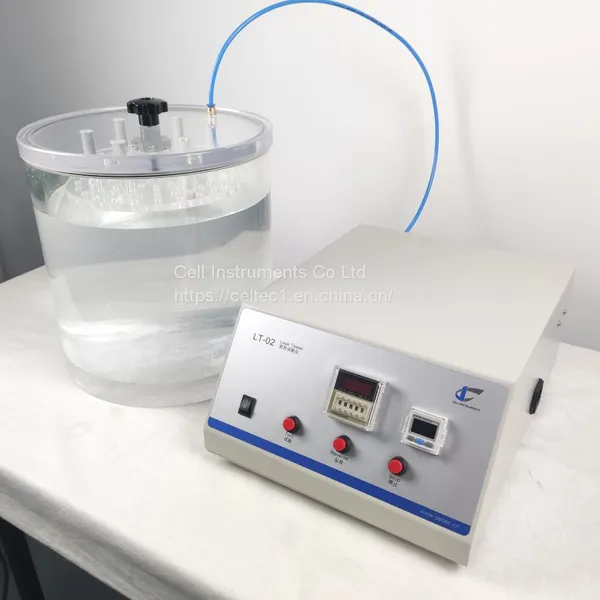

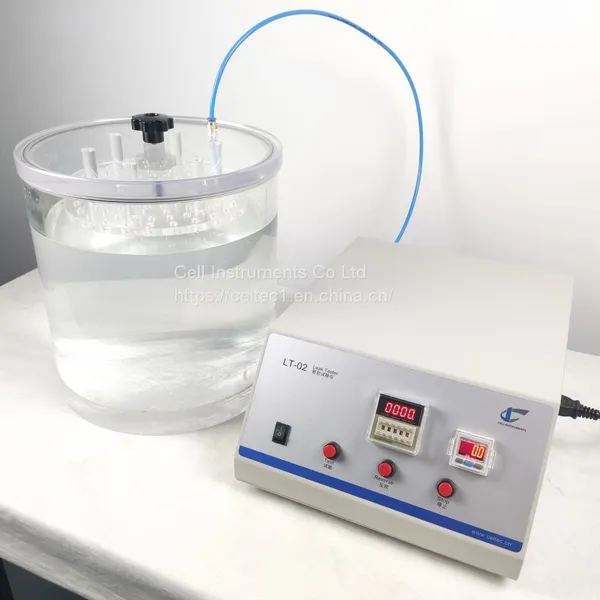

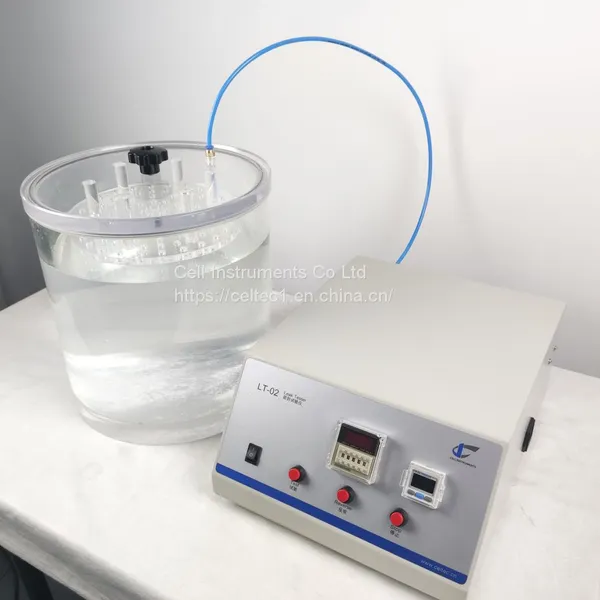

LT-02 Leak Tester

Application

Testing the integrity of package seals helps ensure that the packaging provides required product protection. Sustainable packaging alternatives, lower cost packaging, and variations in production line sealing parameters are frequently assessed with seal integrity tests. Maintaining the reliability of package seals is critical for product quality and safety.

Test Description

A sample is placed into the chamber filled with water. After the lid is put back. the control unit start to extract the air inside chamber out, until the preset vacuum is achieved. Because of the pressure difference between inside and outside of sample, air in it will escape if there is a small leak. The leak is shown by a stream of bubbles from the leak area.

Technical Features

LT-02 leak tester is the first-generation automatic vacuum tester introduced by Cell Instruments. The ASTM D3078 is the standard test method for determination of gross leaks in flexible packaging containing a headspace gas by bubble emission. The test is conducted by submerging the test specimen in the immersion fluid within the confines of a vacuum chamber.

To achieve stable vacuum and considering the fact that compressed air is easier to be obtained at user facility, we use Venturi tube for a high level of vacuum up to –90KPa.

Precious and long test time setting.

SMC branded vacuum pressure switch.

Strong and clear chamber provided, and different sizes and shapes could be customized

It could be modified to work with vacuum pump, to achieve higher vacuum (for ASTM D4991)

Main Parameters

Test Range 0~-90 KPa

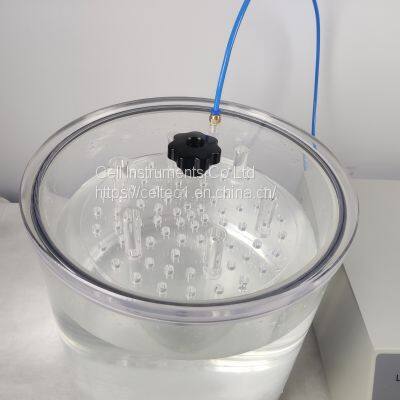

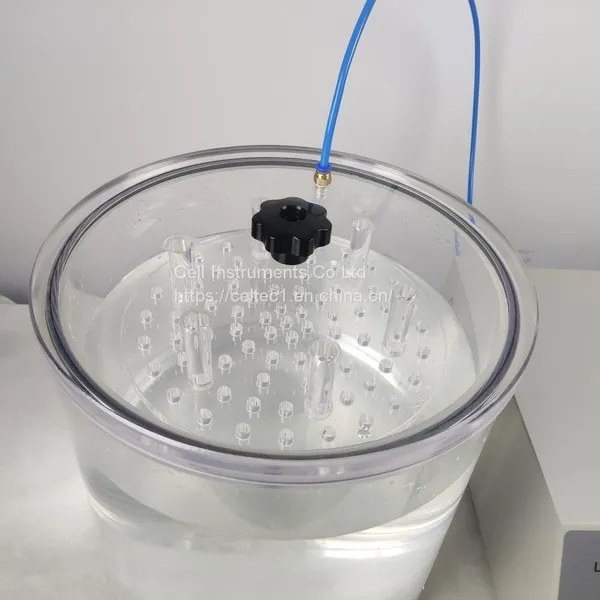

Chamber Acrylic cylinder shape

Test Space Φ270*H210mm (internal usable)

Compressed Air 0.7MPa (Prepared by user)

Power 220V 50/60H
