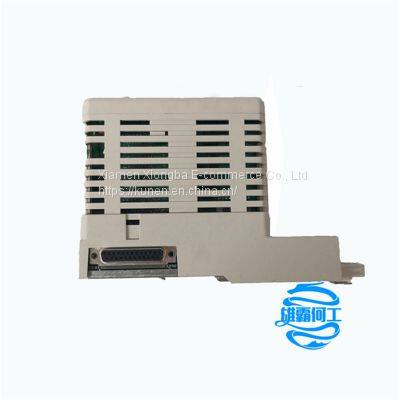

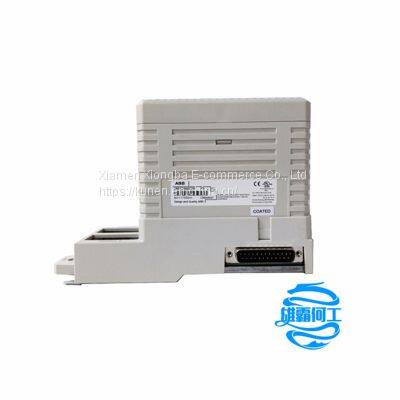

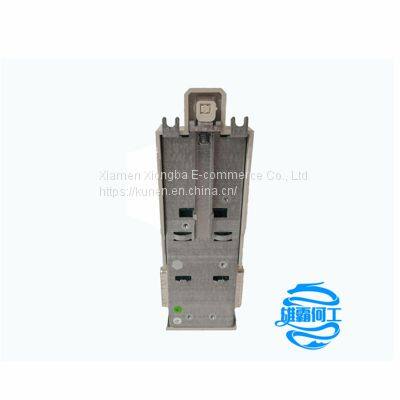

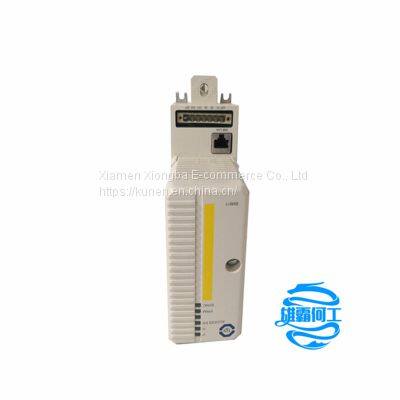

ABB CI861 Input Output Module

Only applicable for DARA 1001 and DARA 1010.

Set parameters 05.21 - 05.24 to 1 if a motor's rotor is connected to it, and it is desired to monitor the rotor.

In case the speed feedback is made with tachometer or pulse encoder, a rotor is supervised in case the

corresponding parameter is set to 1. Each time the motion is started, the "next" rotor is selected for supervision.

Example: 05.21 = 1, 05.22 = 0, 05.23 = 1, 05.24 = 0. At first start rotor of motor 1 is supervised, at second start rotor of motor 3 is supervised, at third start rotor of motor 1 is supervised .... In case the pointed out rotor fails, the motion continues.

In case the feedback is the rotor frequency, parameters 05.21 - 05.24 only the same rotor as used for

the speed feedback can be used for supervision. The other must be off. In case the pointed out rotor

fails, the motion stops.

Example: 05.25 = 2. 05.21 must be 0, 05.22 can be 0 or 1, 05.23 must be 0, 05.24 must be 0.

Set parameter 05.25 to define which of the motors that is active as speed feedback for Rotor feedback. 1

for first input to DATX 130, 2 for second, 3 for third and 4 for fourth input to DATX 130. Value has no importance if other speed feedback is used.

4.5.1.7. Thermistor action

PTC inputs PTC3 and PTC4 can be used for trip (normal setting) or warning while PTC1 and PTC2 are only

for trip.

With parameter 05.26 = 0, a high resistance value for PTC3 or PTC4 only gives a flashing indication. With

parameter 05.26 = 1, a high resistance value for PTC3 or PTC4 gives a trip (same result as for PTC1 or

PTC2).

4.5.1.8. Different parameter sets

It is only allowed to change parameter sets under the conditions given by parameter 01.03, MACROMODE.

Basically there is a selection between two parameter sets with DI no.4 of the process I/O, but it can be extended to four parameter sets with a parameter 05.27 (STA2_PA2).

CEX-Bus haberleşme modülleri

CI851: PROFIBUS-DP & DP-V0

CI852: FOUNDATION Fieldbus H1

CI853: RS232C/Modbus RTU vb

System 800xA

AC800M kontrolörün haberleşme seçenekleri

CI854: PROFIBUS-DP & DP-V1

CI855: MasterBus 300

CI856: S100 I/O

CI857: INSUM

CI858: DriveBus

CI861: TCP/IP VIP Protocol

CI862: Trio I/O

CI864: IEC60870-5-104 – RTU Connectivity

CI865: Satt I/O

*CI867: ModBus TCP

*CI868: Electrical Integration IEC61850-8 – Relay Connectivity

 CI869: AF100

*CI871: PROFINET IO

*CI873: DeviceNet and Ethernet I/P
