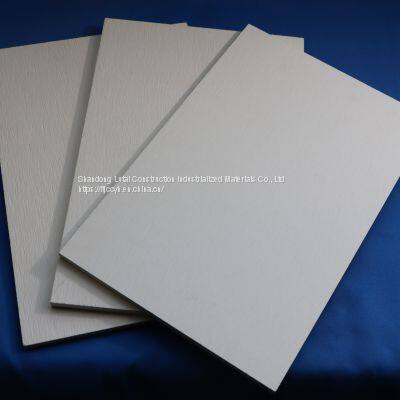

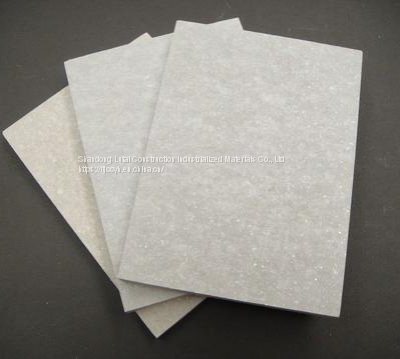

Calcium Silicate Board 100% Asbestos Free for Building Interior Wall Decoration Panel

Shandong Lutai Construction Industrialized Materials Co., Ltd Business license
Calcium Silicate Board 100% Asbestos Free for Building Interior Wall Decoration Panel thumbnail-1
Calcium Silicate Board 100% Asbestos Free for Building Interior Wall Decoration Panel thumbnail-2
Calcium Silicate Board 100% Asbestos Free for Building Interior Wall Decoration Panel thumbnail-3
Calcium Silicate Board 100% Asbestos Free for Building Interior Wall Decoration Panel thumbnail-4
Calcium Silicate Board 100% Asbestos Free for Building Interior Wall Decoration Panel thumbnail-5
Calcium Silicate Board 100% Asbestos Free for Building Interior Wall Decoration Panel photo-1
Calcium Silicate Board 100% Asbestos Free for Building Interior Wall Decoration Panel photo-2
Calcium Silicate Board 100% Asbestos Free for Building Interior Wall Decoration Panel photo-3
Calcium Silicate Board 100% Asbestos Free for Building Interior Wall Decoration Panel photo-4
Calcium Silicate Board 100% Asbestos Free for Building Interior Wall Decoration Panel photo-5
US$ 5.6 - 42 MOQ: 1000 Square Meters
Key Specifications
Get Latest Price
Brand Name:
lutai
Place of Origin:
China
Model Number:
1220*2440，other size as you need
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name lutai
Place of Origin China
Model Number 1220*2440，other size as you need

Product Name
100% Non-asbestos Calcium Siliacate Board
Raw Materials
Imported wood pulp, quartz sand, cement
Standard Size
1220*2440mm,1200*2400mm
1200*3000mm,1220*3000mm
other size as you need
Thickness
5mm-30mm
Density
1.2-1.4g/cm3
Fire-proof Rate
A1 class incombustible(GB8624-2012)
Anti-bending Strength
≥16Mpa
Incombustibility
240minutes (GB/T9978-2008)
Frost Resistance
Do not appear cracking and delamination after 25 cycles of freezing and thawing

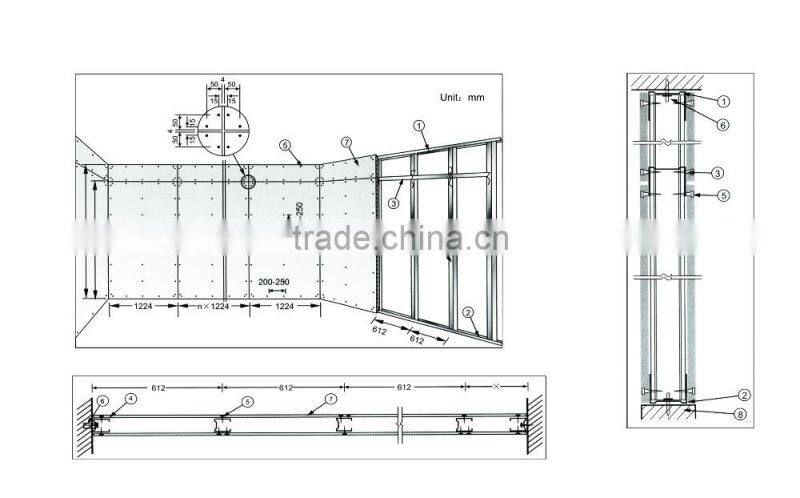

Install Example
Step 1
Mark the accurate location of ceiling keel ,floor keel ,door & window,sanitary fixture and pipes according to design drawing. The vertical keels should be arranged in turn in the same direction and make sure them upright, the distance between centers is 400mm~600mm.


Step 2

The boards should be longitudinal laid if the wall needs a higher fireproof rate and the joints staggered

Step 3

The distance between boards is 4~5mm, between board and floor is 5mm. the center distance of tapping screws is 200~300mm, between tapping screw and board edge is 15mm, between the head tapping screw and corner is 50mm, drive the tapping screw into board for 1mm.

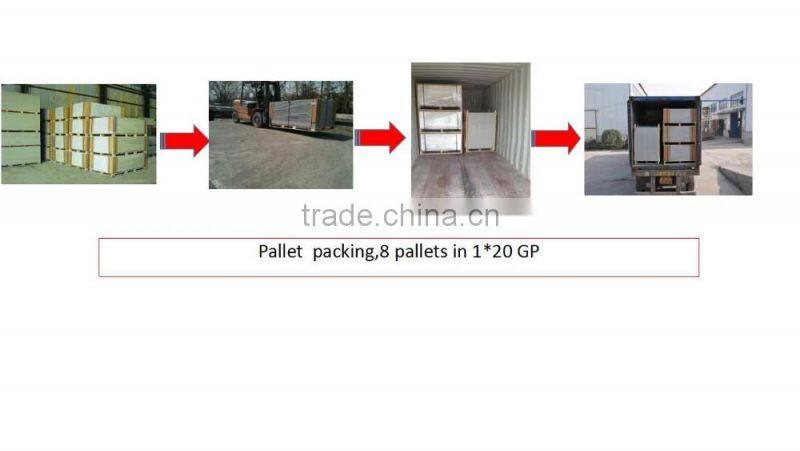

Packing & Delivery
Product Tags: Calcium silicate Board , building interior wall decoration panel , 100% asbestos free
