- 2024 Aluminum Alloy, Aluminium AA2024 2024T3, 2024T351, 2024T4
Aluminum 2024 is one of the highest strength 2xxx alloys, the copper and magnesium are the main elements in this alloy. The most commonly used temper designs include 2024T3, 2024T351, 2024T4, 2024 T6 and 2024T4. The corrosion resistance of 2xxx series alloys is not as good as most other aluminum alloys, and intergranular corrosion may occur under certain conditions. Therefore, these sheet alloys are usually clad with high-purity alloys or 6xxx series magnesium-silicon alloys to provide galvanic protection for the core material, thereby greatly improving corrosion resistance.
2024 aluminium alloy is widely used in the aircraft industry, such as aircraft skin sheet, automotive panels, bulletproof armor, and forged and machined parts.
Alclad 2024 aluminum alloy combines the high strength of Al2024 with the corrosion resistance of a commercial pure cladding. Used in truck wheels, many structural aircraft applications, mechanical gears, screw mechanical products, auto parts, cylinders and pistons, fasteners, mechanical parts, ordnance, entertainment equipment, screws and rivets, etc.
- 2024 Aluminum Properties
The tables below list 2024 aluminum properties and specifications including chemical composition, physical and mechanical properties, modulus of elasticity, etc.
- Chemical Composition
Al 2024 chemical composition is given in the table below.
Aluminum 2024 Chemical Composition, % Alloy (UNS) Si, ≤ Fe, ≤ Cu Mn Mg Cr Zn, ≤ Ti Other Elements, Each (Total), ≤ Al 2024 (UNS A92024) 0.50 0.50 3.8-4.9 0.30-0.9 1.2-1.8 0.10 0.25 0.15 0.05 (0.15) Remainder - AA 2024 Physical Properties
AA2024 physical properties are listed in the following tables, including aluminum density, melting point, coefficient of thermal expansion, elastic modulus (modulus of elasticity), thermal conductivity, specific heat capacity, electrical conductivity, and electrical resistance.
Notes:
10-6·K-1 = 10-6/K = 1 μm/m·°C
1 Ω·mm²/m = 1 μΩ·m
1 g/cm3 = 1 kg/dm3 = 1000 kg/m3
1 GPa = 1 kN/mm2
1 MPa = 1 N/mm2
MS/m = 0.58⋅% IACS
1 cal/(g.C) = 1 Btu/(lb. F)
Aluminium 2024-T3 Physical Properties Alloy and Temper Density, g/cm3 (lb/in.3) Specific gravity Melting point, °C (°F) Coefficient of thermal expansion, 10-6/K (μin./in. ·°F) Specific heat capacity, J/kg·K (Btu/lb ·°F) Thermal conductivity, W/m·°C (Btu∙in/h∙ft2∙°F), at 25 °C (77 °F) Electrical conductivity, Equal volume (Equal weight), % IACS, at 20 °C (68 °F) Electrical conductivity, Equal volume (Equal weight), MS/m, at 20 °C (68 °F) Electrical resistivity, Ω·mm2/m (Ω·circ mil/ft), at 20 °C (68 °F) 2024-O 2.78 (0.101) 2.78 500-638 (935-1180) 23.2 (12.9) at 20-100 °C (68-212 °F) 875 (0.209) at 20 °C (68 °F) 193 (1340) 50 (160) 29 (93) 0.035 (21) 2024-T3, T4, T361 121 (840) 30 (96) 17 (56) 0.058 (35) 2024-T6, T81 , T861 151 (1050) 38 (122) 22 (71) 0.045 (27) 1000 Series
Industrial Pure Aluminum(1050,1060 ,1070, 1100)
2000 Series
Aluminum-copper alloys(2024(2A12), LY12, LY11, 2A11, 2A14(LD10), 2017, 2A17)
3000 Series
Aluminum-manganese alloys(3A21, 3003, 3103, 3004, 3005, 3105)
4000 Series
Al-Si alloys(4A03, 4A11, 4A13, 4A17, 4004, 4032, 4043, 4043A, 4047, 4047A)
5000 Series
Al-Mg alloys(5052, 5083, 5754, 5005, 5086,5182)
6000 Series
Aluminum Magnesium Silicon Alloys(6063, 6061, 6060, 6351, 6070, 6181, 6082, 6A02)
7000 Series
Aluminum, Zinc, Magnesium and Copper Alloys(7075, 7A04, 7A09, 7A52, 7A05)

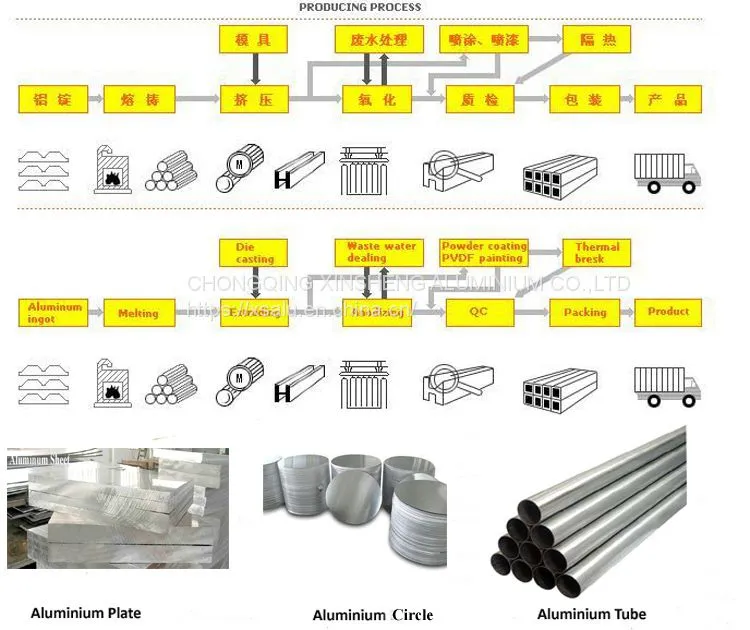

Producing Process:

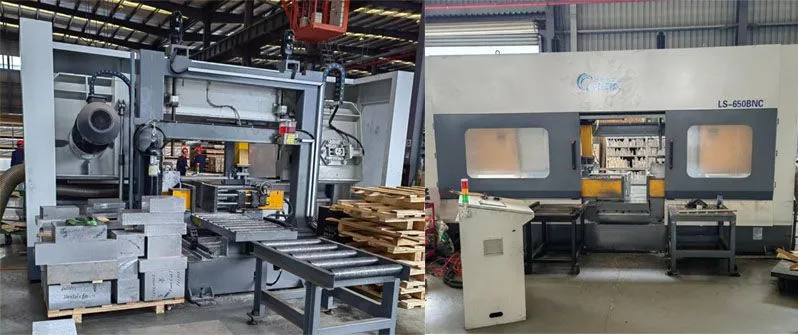

Cutting service is provided:
Aplications:

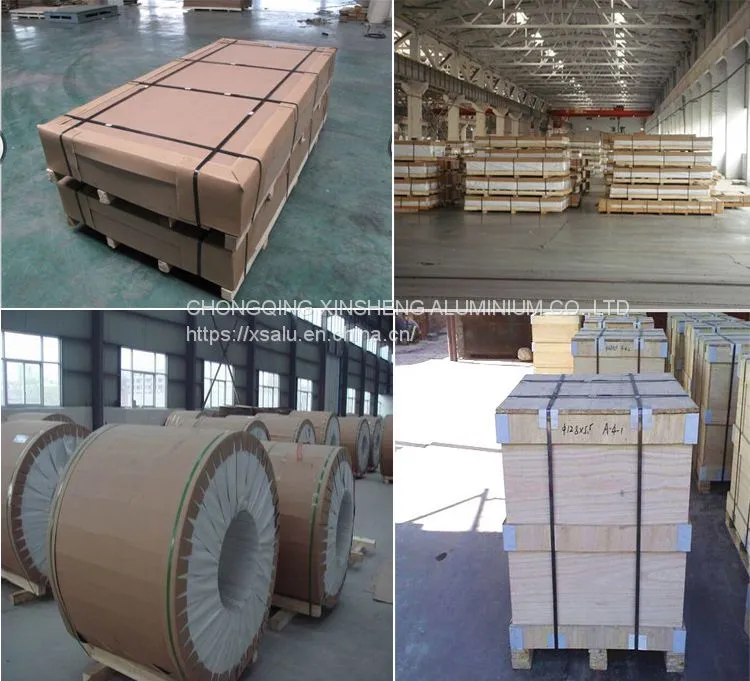

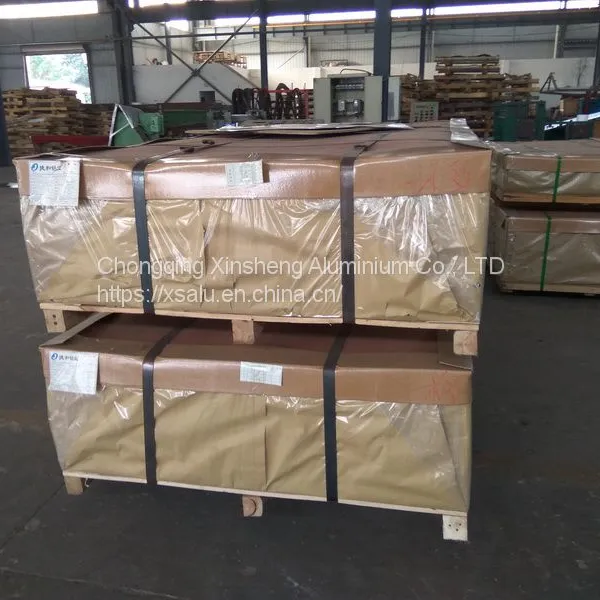

Package:
Wooden tray, iron wrapper, waterproof paper.
Shipping:
FAQ:
Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.
Q:What product information do I need to provide?
A:You need to provide the grade/temper, width, thickness, surface treatment and the number of tons you need to purchase.
Q:What are the shipping ports?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.
Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw metal materials.
Q:What are the certifications for your products?
A:We have ISO 9001, SGS, EWC and other certifications.
Q:How long does your delivery time take?
A:In general, for stock business we delivery in about 7-10days, for production our delivery time is within 25-45 days, and may be delayed if the demand is extremely large or special circumstances occur.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.
Q:How to pack the products?
A:The inner layer has a waterproof paper outer layer with iron packaging and is fixed with standard export wooden pallet. It can effectively protect products from corrosion during ocean transportation.
Q:What is your working time?
A:In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry during the next working day.
