5083 Aluminum Properties, Alloy 5083 H116 H111 H321

5083 Aluminum Properties, Alloy 5083 H116 H111 H321 thumbnail-1
5083 Aluminum Properties, Alloy 5083 H116 H111 H321 thumbnail-2
5083 Aluminum Properties, Alloy 5083 H116 H111 H321 thumbnail-3
5083 Aluminum Properties, Alloy 5083 H116 H111 H321 thumbnail-4
5083 Aluminum Properties, Alloy 5083 H116 H111 H321 thumbnail-5
5083 Aluminum Properties, Alloy 5083 H116 H111 H321 photo-1
5083 Aluminum Properties, Alloy 5083 H116 H111 H321 photo-2
5083 Aluminum Properties, Alloy 5083 H116 H111 H321 photo-3
5083 Aluminum Properties, Alloy 5083 H116 H111 H321 photo-4
5083 Aluminum Properties, Alloy 5083 H116 H111 H321 photo-5
US$ 3700 - 4100 MOQ: 1 Ton
Key Specifications
Get Latest Price
Brand Name:
XinshengAlu
Place of Origin:
China
Model Number:
5083 H116 H111 H321
Contact Supplier Request Quote Chat Now
Chongqing Xinsheng Aluminium Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name XinshengAlu
Place of Origin China
Model Number 5083 H116 H111 H321
Thickness 3-30mm
Type Plate
Width 1000-2500mm
Application aircraft structures, piping systems, mobile equipment and high-pressure hydraulics, blow molds, ultrasonic plastic welding molds, shoe molds, paper molds, foam molds, dewaxing molds, jigs, mold machining, high-end aluminum alloy bicycle frames, etc .
Surface Treatment Other, Mill Finish
Alloy Or Not Is Alloy
Grade 6000 Series
Temper T351-T851
  1. 5083 Aluminum Alloy – Al 5083 H116 H111 H321


  3. 5083 aluminum is essentially a non-heat treatable alloy containing 4-4.9% Mg and 0.4-1.0% Mn. It is a relatively inexpensive alloy with moderate strength, excellent cold forming, welding and spot welding properties, and good corrosion resistance. Aluminum alloy 5083 can be processed to moderate superplasticity, this attractive combination of properties has led to the increasing use of its superplastic forming for a range of parts in non-structural applications that do not involve substantial forming strains. Commonly used temper conditions of the alloy include 5083-H116, H321, H111, H112, etc.

  4. 5083 Aluminum Properties

  5. The following tables summarize 5083 aluminum properties including chemical composition, physical and mechanical properties, etc.

  6. Chemical Composition

  7. The chemical composition of 5083 aluminum alloy is given in the data sheet below.

  8. Chemical Composition, %
    Aluminum Si, ≤ Fe, ≤ Cu, ≤ Mn Mg Cr Zn, ≤ Ti, ≤ Other Elements, Each (Total), ≤ Al
    5083 0,40 0,40 0,10 0,40-1,00 4,0-4,9 0,05-0,25 0,25 0,15 0.05 (0.15) Rest
  9. 5083 Aluminum Alloy Physical Properties

  10. Aluminum 5083 physical properties are listed in the data sheet below, including the aluminum density, melting point, coefficient of thermal expansion, Young’s modulus, thermal conductivity, specific heat, electrical conductivity, and electrical resistivity, etc.

  11. Note:

  12. 10-6·K-1 = 10-6/K = 1 μm/m·°C

  13. 1 Ω·mm²/m = 1 μΩ·m

  14. 1 g/cm3 = 1 kg/dm3 = 1000 kg/m3

  15. 1 GPa = 1 kN/mm2

  16. 1 MPa = 1 N/mm2

  17. MS/m = 0,58 %IACS

  18. 1 cal/(g.C) = 1 Btu/(lb⋅F)

  19. 5083-O Aluminum Physical Properties
    Density, g/cm3 (lb/in.3) 2.66 (0.096)
    Melting point, °C (°F) 580-640 (1095-1180)
    Specific heat capacity, J/kg·K (Btu/lb ·°F) 899 (0.215)
    Coefficient of thermal expansion, 10-6/K (μin./in. ·°F) 23.8 (13.2) at 20-100 ℃ (68-212 °F)
    Thermal conductivity at 25 °C (77 °F),
    W/m·°C (BTU∙in/h∙ft²∙°F)    		 117 (810)
    Electrical conductivity at 20 °C (68 °F), MS/m
    Equal volume (Equal weight)    		 17 (57)
    Electrical conductivity at 20 °C (68 °F), % IACS
    Equal volume (Equal weight)    		 29 (98)
    Electrical resistivity at 20 °C (68 °F).
    Ω·mm2/m (Ω· circ mil/ft)    		 0.059 (36)
  20. 5083 Aluminum Mechanical Properties

  21. Aluminum 5083 mechanical properties are listed in the table below, including tensile strength, yield strength, elongation, hardness, etc.

  22. ASTM B209/B209M

  23. 5083 aluminum sheet and plate mechanical properties according to ASTM B209/B209M

  24. Aluminium 5083 Mechanical Properties – Plate and Sheet
    Standard Aluminum Alloy and Temper Specified Thickness (over-through), in. (mm) Tensile Strength, ksi (MPa) Yield Strength (0.2 % offset), ksi (MPa) Elongation in 2 in. (5mm) or 4xDiameter, ≥, %
    ASTM B209/B209M 5083-O 0.05-1.5  (1.2-40) 40-51 (276-352) 18-29 (124-200) 16
    1.5-3.0 (40-80) 39-50 (270-345) 17-29 (117-100) 16
    3.0-4.0 (80-100) 40-80 (276-550) ≥16 (110) 16
    4.0-5.0 (100-120) ≥38 (262) ≥16 (110) 14
    5.0-7.0 (120-180) ≥37 (255) ≥15 (103) 14
    7.0-8.0 (180-200) ≥36 (248) ≥14 (97) 12
    5083-H32 0.125-0.187 (3.2-5.0) 44-56 (303-386) ≥31 (214) 10
    0.188-1.500 (5-40) 44-56 (303-386) ≥31 (214) 12
    1.5-3.0 (40-80) 41-56 (283-386) ≥29 (200) 12
    5083-H112 0.25-1.50 (6.35-38) ≥40 (276) ≥18 (124) 12
    1.5-3.0 (30-80) ≥39 (269) ≥17 (117) 12
    5083 F 0.25-8 (6.35-203) – – –


  26. 1000 Series

    Industrial Pure Aluminum(1050,1060 ,1070, 1100)

    2000 Series

    Aluminum-copper alloys(2024(2A12), LY12, LY11, 2A11, 2A14(LD10), 2017, 2A17)

    3000 Series

    Aluminum-manganese alloys(3A21, 3003, 3103, 3004, 3005, 3105)

    4000 Series

    Al-Si alloys(4A03, 4A11, 4A13, 4A17, 4004, 4032, 4043, 4043A, 4047, 4047A)

    5000 Series

    Al-Mg alloys(5052, 5083, 5754, 5005, 5086,5182)

    6000 Series

    Aluminum Magnesium Silicon Alloys(6063, 6061, 6060, 6351, 6070, 6181, 6082, 6A02)

    7000 Series

    Aluminum, Zinc, Magnesium and Copper Alloys(7075, 7A04, 7A09, 7A52, 7A05)


  28. Producing Process:


  31. Cutting service is provided:


  34. Aplications:

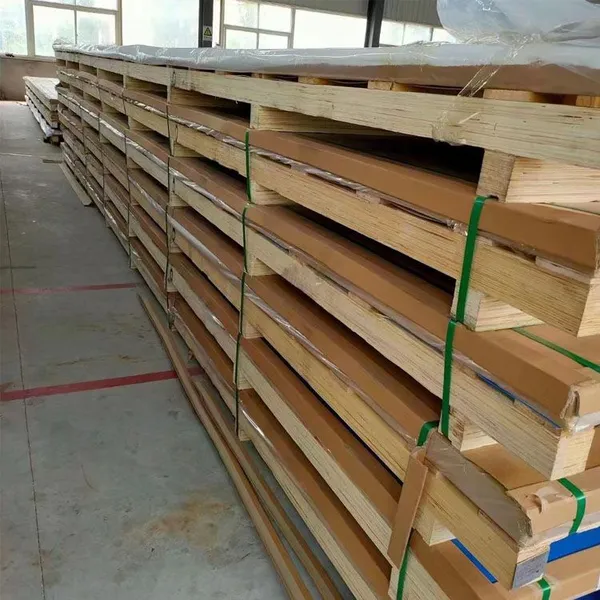

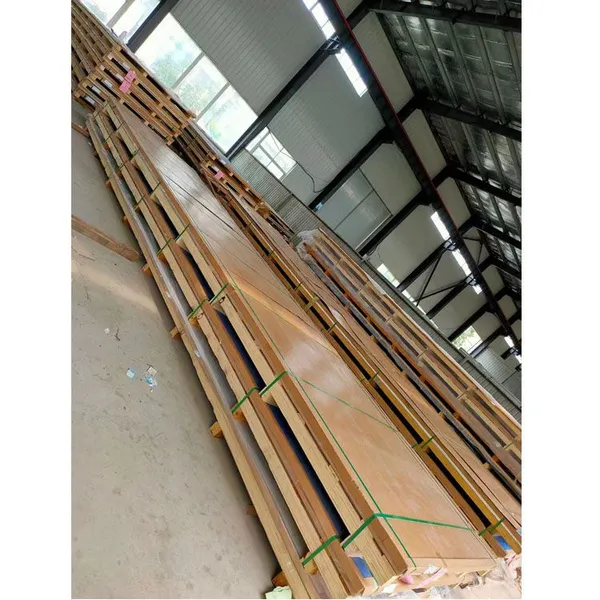

  36. Package:

  37. Wooden tray, iron wrapper, waterproof paper.


  40. Shipping:


  42. FAQ:

  43. Q:Can you send samples?

  44. A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.

  45.

  46. Q:What product information do I need to provide?

  47. A:You need to provide the grade/temper, width, thickness, surface treatment and the number of tons you need to purchase.

  48.

  49. Q:What are the shipping ports?

  50. A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.

  51.

  52. Q:About product prices?

  53. A:Prices vary from period to period due to cyclical changes in the price of raw metal materials.

  54.

  55. Q:What are the certifications for your products?

  56. A:We have ISO 9001, SGS, EWC and other certifications.

  57.

  58. Q:How long does your delivery time take?

  59. A:In general, for stock business we delivery in about 7-10days, for production our delivery time is within 25-45 days, and may be delayed if the demand is extremely large or special circumstances occur.

  60.

  61. Q:Can I go to your factory to visit?

  62. A:Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.

  63.

  64. Q:Does the product have quality inspection before loading?

  65. A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.

  66.

  67. Q:How to pack the products?

  68. A:The inner layer has a waterproof paper outer layer with iron packaging and is fixed with standard export wooden pallet. It can effectively protect products from corrosion during ocean transportation.

  69.

  70. Q:What is your working time?

  71. A:In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry during the next working day.
