JT3600V is a most advanced 5G NSA/SA 5G NR Sub-6G indoor Wi-Fi & VoLTE/VoNR CPE product specially designed to enable quick and easy 5G/4G/3G fixed data service deployment for residential and SOHO customers. It provides high speed LAN, Wi-Fi and VoNR integrated services to end users who need both bandwidth and multi-media data service in residential homes or enterprises.
RELIABLE PERFORMANCE
JT3600V is an advanced multiport indoor Wi-Fi and VoLTE/VoIP CPE based on the standard implementation of 3GPP Release 15 specifications. With built-in high gain LTE antenna, it enables a longer reception range from the base station. This yields more efficient use of the network with a larger cell reach, guaranteed carrier class service, and customer service probability.

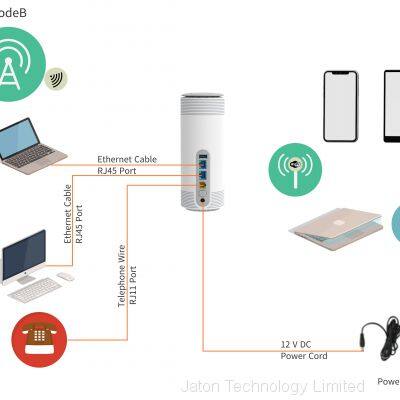

The device has 2 Gigabit LAN ports, 1 RJ11 analog phone port, high performance 4x4 MIMO and CA capabilities, 802.11b/g/n/ax multiband Wi-Fi, advanced routing and firewall software for security. It provides an effective all-in-one solution to SOHO or residential customers. It can deliver up to 1Gbps max data throughput which can be very competitive to wired broadband access service.
EASY USAGE & MANAGEMENT
JT3600V is a user-friendly 5G NSA/SA 5G NR Sub-6G CPE and very easy to configure and setup. Subscribers can just connect the device to their computer or home switch/router and the device is ready to offer an experience of surfing over Internet. The LEDs on the JT3600V have also been designed for user convenience, and offer a clear sign of what the device is doing. The compact design is well suited for enterprise and residential users.
JT3600V offers rich management features which facilitate the task of service provider. It supports local management access, Telnet, WEB, and centralized remote OTA configuration, upgrades management and device monitoring via standard TR-069 ACS system.
TECHNICAL FEATURES
JT3600V is fully compliant to the 3GPP release 16 specifications. It offers standard support for advanced features such as Carrier Aggregation, MIMO and AMC to maximize the system capacity and bandwidth throughput. The use of OFDM modulation enhances performance in non-line-of-sight conditions to ensure immunity to interference and multi-path conflicts typical of deployments in urban areas. Sophisticated QoS capabilities ensure true end-to-end QoS and support for high quality data services.
Peak Throughput
Sub-6G SA 2.4Gbps(DL),1Gbps(UL)
Sub-6G NSA 3.4Gbps(DL),600Mbps(UL)
LTE 1.6Gbps(DL),200Mbps(UL)
HSPA+ 42Mbps(DL),5.76Mbps(UL)
Technical Specifications | |
Physical | |
Dimensions |
133mm x 75mm x 200mm |
Weight |
|
Power consumptions |
|
Power Supply |
12V/1.5A DC Adapter |
Environmental | |
Operating Temperature |
-15℃ to 55℃ |
Storage Temperature |
-40℃ to 85℃ |
Humidity |
90% max Non-condensing |
Wireless Radio Interface | |
Radio Access |
3GPP Release 16 5G NSA/SA 5G NR Sub-6G LTE-TDD/LTE-FDD/WCDMA |
Operation Mode |
5G DL 4x4 MIMO |
Frequency Band |
5G NSA: N1/3/5/7/8/20/28/38/40/41/48/77/78/79 5G SA: N1/3/5/7/8/20/26/28/38/40/41/48/77/78/79 LTE: B1/3/5/7/8/18/19/20/26/28/32/38/39/40/41/42/43/46/48 WCDMA: B1/5/8 |
Modulations |
QPSK/QAM16/QAM64/QAM256 |
CA Support |
Up to 5CC |
Receive Sensitivity |
Compliance with 3GPP standard |
Output Power |
23dBm±2dB |
Antenna Gain |
2-6dBi |
Wi-Fi Interface | |
Radio Access |
IEEE802.11b/g/n/ax |
MIMO |
2 x 2 |
Output Power |
15dBm |
Antenna |
3-5dBi Built-in antenna |
Connected Users |
32 |
Security |
64/128-bit WEP, WPA/WPA2 |
User Interface | |

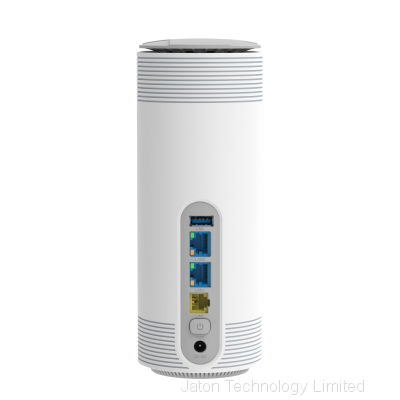

Data Interface |
1 RJ45 GE ETH Port,1 RJ45 2.5Gbps ETH Port, 1 USB3.0 |
Line Interface |
1 RJ11 Port |
LED Indicators |
SYS, MOD, RF, Wi-Fi, LINE |
SIM Support |
1.8V/3.0V USIM 2FF |
VoIP Processing & Services | |
Compression |
G.711 G.721 G.723 G.726 G.729 G.722 |
Comfort Noise |
Comfort Noise Generation & Control |
Echo Cancellation |
G.165/168-2000 |
Silence Handling |
Silence Detection/Suppression |
Fax Support |
T.30 and T.38 |
Delay/Jitter/Loss |
Jitter and Packet Loss Compensation |
DTMF Relay |
In band DTMF, RFC2833, SIP signal |
Call Duration |
24+ hours Uninterrupted Call |
Basic Voices |
Local, Domestic & International Calling |
Complementary Services |
Caller ID, Caller ID suppression, Call Screening, Speed dial, Call Tracing, Hotline, Unconditional call forwarding, Call Forwarding No Answer, Call Forwarding on Busy, Call Waiting, Call Back, Call Blocking, No Disturbance, Alarm, Network and Local 3-way Call, Data Call, etc. |
VoLTE Support | |
Basic Call |
AMR-NB & AMR-WB, Caller ID Name & Number display |
Supplementary Call Features |
Communication Forwarding Barring of Incoming/Outgoing Calls Communication Hold & Waiting Ad-Hoc 3-Party Conference Message Waiting Indication Communication Diversion/Forward |
DSP Processing |
Adaptive Multi-Rate speech codec (AMR) AMR wideband codec Narrowband 8KHz & Wideband 16KHz Support DTMF Tone Generation and Detection Call Progress Tone Generation |
