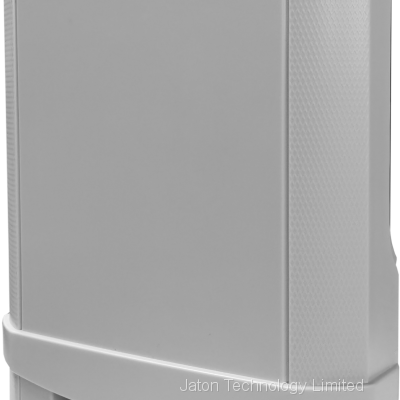

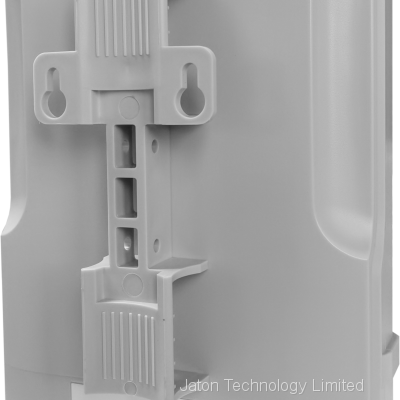

JT4500P is the LTE-A Pro CAT12/15 outdoor data unit specially designed to meet the high speed wireless backhaul and fixed wireless access deployments by the 4G service operators. JT4500P can provide Gigabit PoE connection to connect user terminal device such as indoor router or Wi-Fi AP products, They are used for the customer's home or office to provide a larger wireless range and enhance mobility of usage.
JT4500P MTBF time is expected to be above 80,000 hours, It can provideup to 600Mbps max throughput over the air. The typical coverage should be more than 15km with reasonable good throughput performance.
JT4500P FDD frequency is CAT12
JT4500P TDD frequency is CAT15
Radio Access |
3GPP Release 12, Category 12 |
Operation Mode |
FDD/TDD 4Rx, 2Tx, DL 4*4 MIMO |
CA |
DL CA (2CC & 4CC); UL MIMO and CA; UL QAM64; |
MIMO |
DL 2x2 MIMO (4CA); DL 4x4 MIMO(2CA); UL 2x2 MIMO; |
Output Power |
23dBm per Tx |
Frequency Bands |
All Bands |
Antenna |
RF |
Gain |
Band Option |
|
Option 1 Full Band |
0.6-0.9GHz |
3 dBi |
Max option 3 of them |
1-2.2GHz |
5 dBi |
Max option 3 of them |
|
2.3-3.8GHz |
6 dBi |
Support all of them |
|
|
Option 2 Narrow Band |
2.3-2.6GHz |
13 dBi |
B38/B40/B41 |
3.4-3.8GHz |
13 dBi |
B42/B43/B48 (4x4) |
|
15 dBi |
B42/B43/B48 (2X2) |
