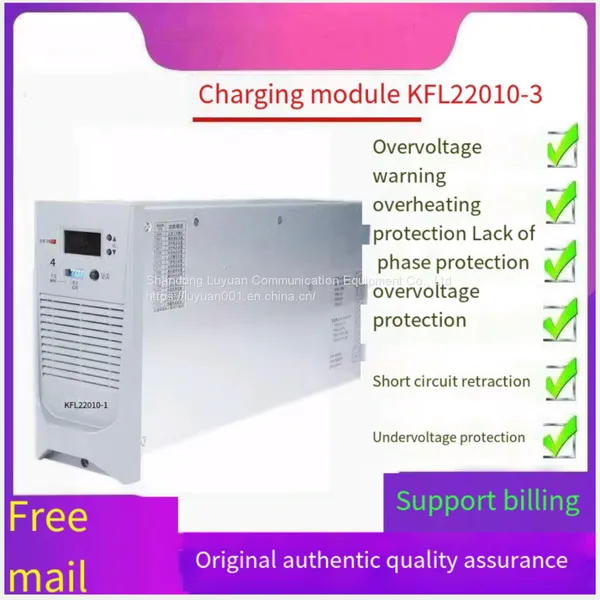

Help CenterDc Screen Charging Module KFL22010-3 Air Cooled Power Module Power Intelligent Rectifier
Related Products
-
Dc Screen POWERS Main Monitoring Module New Original Charging Module Monitoring SystemUS$ 890 - 930MOQ: 1 Piece -
Power Monitoring Module New Spot Free Shipping PMU-S10 DC Screen System Monitoring ModuleUS$ 690 - 720MOQ: 1 Piece
-
FB230D10ZZ High Frequency Switch Rectifier for DC Screen Charging ModuleUS$ 630 - 650MOQ: 1 Piece
-
KM-BU01 KM-BU01S Battery Management Device Battery Inspection InstrumentUS$ 500 - 600MOQ: 1 Piece
-
Watt DC Screen Charging Module WEPR-22010C WEPR-11040CFUS$ 1400 - 1450MOQ: 1 Piece
Overall introduction:
The design of the rectifier module is beautiful and generous. The design of the rectifier module fully considers the installation, use and maintenance factors. Can realize live plug, independent operation and operation.
Product features:
Super wide AC input voltage range, can adapt to harsh power grid
Software calibration technology: no potentiometer inside the module, full digital control
Autonomous current sharing technology, multiple modules can work simultaneously, current sharing deviation is less than 3%
With LCD Chinese character display, power supply working state and working parameters at a glance
Built-in CPU and LCD display, independent operation and control from the main monitor
With perfect protection, alarm and four remote functions
Using resonant soft switching technology, high efficiency and good electromagnetic compatibility
With live plug, online maintenance, convenient and fast
Technical parameters:
Ac input voltage: 380V±15%
Frequency range: 50HZ±10%
Dc output voltage: 180V-286V
Output current limit range: 5%-105% x rated current
Stability accuracy: ≤0.5%
Steady flow accuracy: ≤0.5%
Ripple coefficient: ≤0.1%
Conversion efficiency: ≥94% (full load output)
Dynamic response: Recovery time ≤200 in 20pc load jump to 80% load, overshoot ≤±2%
Audible noise: ≤55dB
Working environment temperature: -5℃ -- +45℃
