Power monitoring module New spot free shipping PMU-S10 DC screen system monitoring module

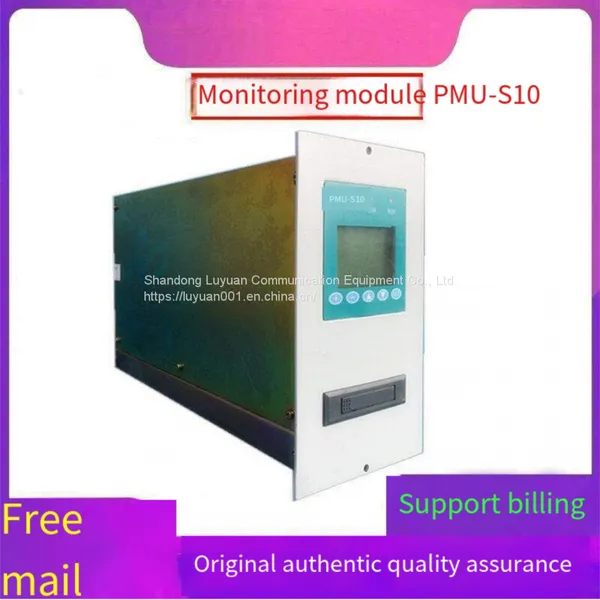

Product name: PMU-S10 Monitor module

I. Parameter characteristics of DC screen monitoring module:

PMU-S10 monitoring module is mainly provided to cooperate manufacturers to form DC system, which can be used in various substations and various users and other occasions requiring DC power supply. Combined with our high-frequency rectifier module and acquisition module, the PMU-S10 monitoring module can complete intelligent battery management and DC system monitoring and alarm. The PMU-S10 monitoring module has the remote management function and can be used in unattended power stations with high automation requirements. Two, the main performance parameters

1. Product model: PMU-S10

2. Working power supply: 85 ~ 320VDC

3, working temperature: 5℃ ~ 40℃

4. Internal communication port: RS485

5. Background communication ports: serial ports RS485 and RS232

6, battery management: automatic equalized float charging conversion, charging current limiting, timing equalized charging, temperature compensation

Four, weight:

Secondary weight of this machine: 5KG
