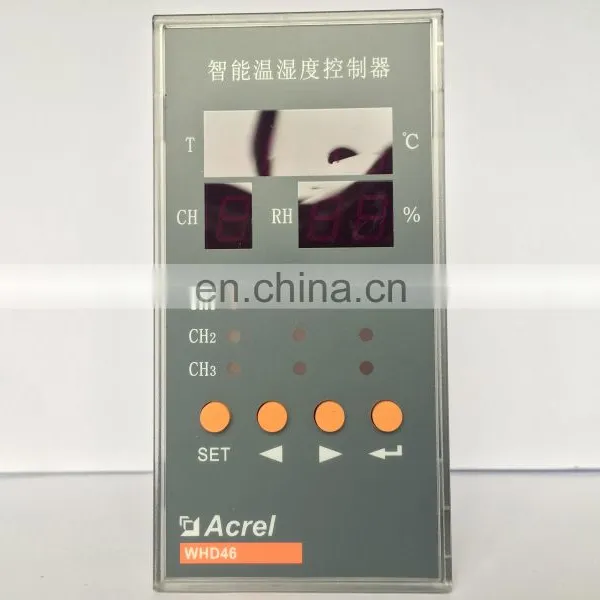

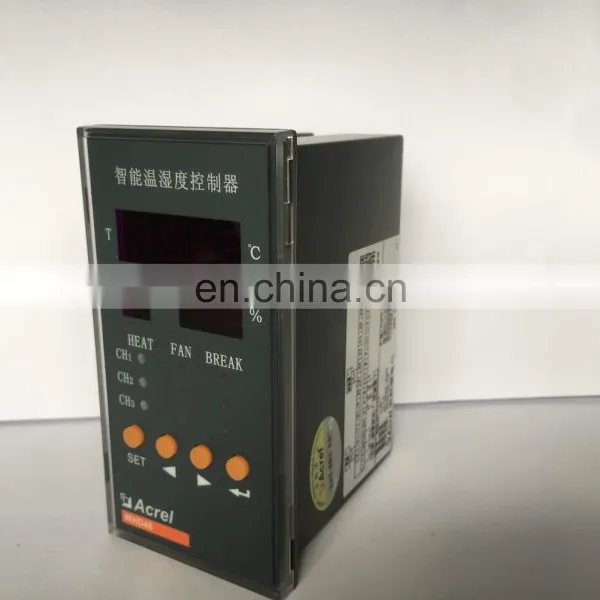

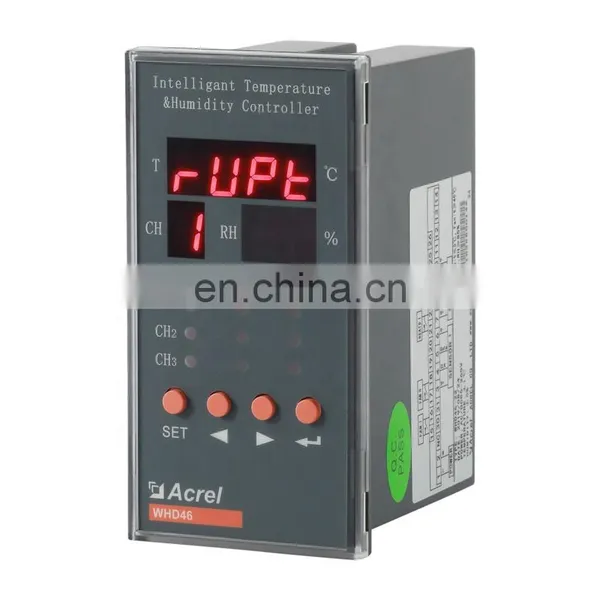

Acrel WHD46-33/C Measuring Temperature and Humidity With Sensors With RS-485 Communication Interface, Modbus Protocol
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel WHD46-22/J Series Temperature & Humidity Controller With Sensors for Terminal Box & Alarm of Lower TemperatureNegotiableMOQ: 1 -
Acrel WHD46-22/M Temperature & Humidity Controller With 4-20mADC Output for PLC SystemNegotiableMOQ: 1
-
Acrel WHD46-22/C Temperature & Humidity Controller for Terminal Box With RS485 Terminal Port,modbus-rtu ProtocalNegotiableMOQ: 1
-
Acrel WHD48-11/C Switchgear Humidity & Temperature Controller RS485 Communication Temperature Data CollectionNegotiableMOQ: 1
-
High Temperature Alarm Deviecs Acrel WHD20R-11/JC Temperature & Humidity Controller for Switch CabinetNegotiableMOQ: 1
Product Description
The controller for temperature and humidity is suitable for adjustment and control of temperature and humidity in equipments of high voltage switchgear, terminal box, ring network panel, box transformer substation etc. It can effectively protect relevant equipment from faults resulting from excessive low or high temperature, creepage or
flashover etc.from humidity or condensation.
These products meet the requirements of GB/T 15309-1994.
flashover etc.from humidity or condensation.
These products meet the requirements of GB/T 15309-1994.
Details
Type |
Function |
Sensor (Pcs) |
Mounting mode |
WHD46-33/C |
three channels temperature, humidity control |
WH-3(3) |
Embedded Catout:116x56 |

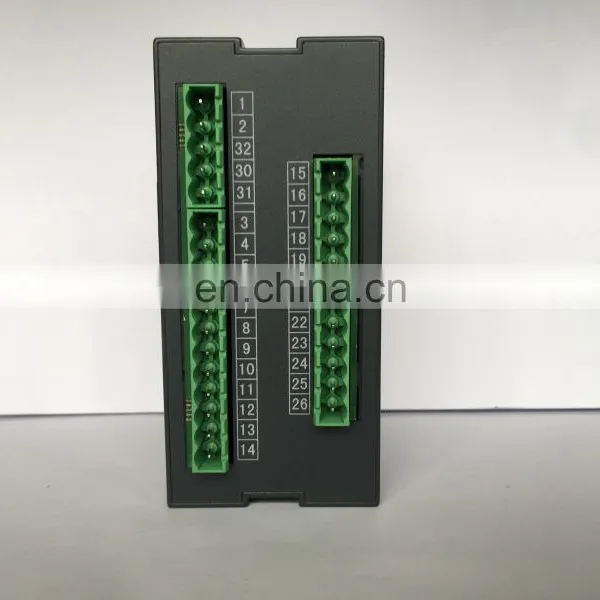

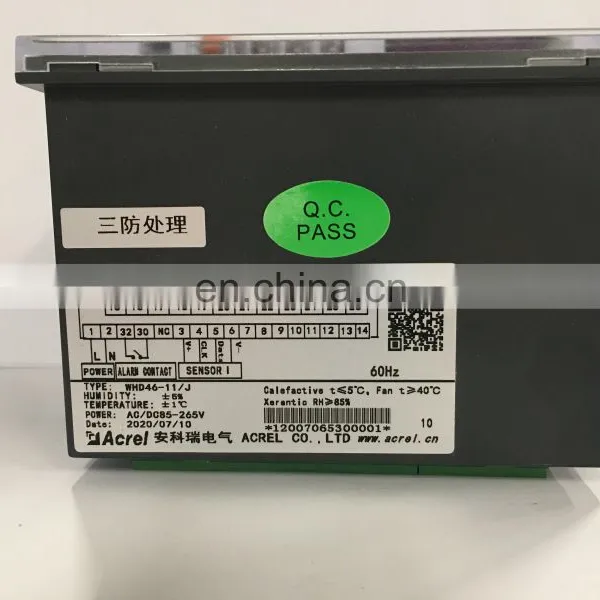

1-2 port：power supply ( AC/DC85-265v)
30-31 port: rs485 communication
15-16 port: the first Heating control(passive contact,connect with Heat equipment)
30-31 port: rs485 communication
15-16 port: the first Heating control(passive contact,connect with Heat equipment)
17-18 port: the second Heating control(passive contact,connect with Heat equipment)Fan control(passive contact,connect with Fan)
19-20 port:the third Heating control(passive contact,connect with Heat equipment)
19-20 port:the third Heating control(passive contact,connect with Heat equipment)
21-22 port:the first Fan control(passive contact,connect with Fan)
23-24 port:the second Fan control(passive contact,connect with Fan)
25-26 port:the third Fan control(passive contact,connect with Fan)
3-4-5-6 port:the first sensor (connect with temperature&humidity sensor. 3 connect to V+ ;4 connect to Clk;5 connect to Data;6 connect to V-)
7-8-9-10 port:the second sensor (connect with temperature&humidity sensor. 7 connect to V+ ;8 connect to Clk;9 connect to Data;10 connect to V-)
7-8-9-10 port:the second sensor (connect with temperature&humidity sensor. 7 connect to V+ ;8 connect to Clk;9 connect to Data;10 connect to V-)
11-12-13-14 port:the second sensor (connect with temperature&humidity sensor. 11 connect to V+ ;12 connect to Clk;13 connect to Data;14 connect to V-)
Dimension
