Home > Instruments & Meters > Meter for Liquid & Gas > Thermometer & Hygrometer > Acrel WHD20R-22 Smart Digital Incubator Humidity Mold Pid Temperature Controller
Acrel WHD20R-22 Smart Digital Incubator Humidity Mold Pid Temperature Controller
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ATE Series Wireless Temperature Sensor ATE200 ,installed in Circuit Breaker Contacts and Bus BarNegotiableMOQ: 1 -
ATE Series Wireless Temperature Sensor ATE100P Passive Wireless Temperature Sensor Magnetic Type Powered by BatteryNegotiableMOQ: 1
-
ATE Series Wireless Temperature Sensor ATE100M ,passive Wireless Temperature SensorNegotiableMOQ: 1
-
NTC PT100 PT1000 Input Temperature Monitoring Controller ARTM-24 Switchgear Smart 24 Channels Temperature Monitoring ControllerNegotiableMOQ: 1
-
Acrel Switchgear Smart 24 Channels Temperature Monitoring Device Controller ARTM-24/JC for Distribution BoxNegotiableMOQ: 1
Product Description
The controller for temperature and humidity is suitable for adjustment and control of temperature and humidity in equipments of high voltage switchgear, terminal box, ring network panel, box transformer substation etc. It can effectively protect relevant equipment from faults resulting from excessive low or high temperature, creepage or
flashover etc.from humidity or condensation.
These products meet the requirements of GB/T 15309-1994.
flashover etc.from humidity or condensation.
These products meet the requirements of GB/T 15309-1994.
Details
Type | Function | Sensor (Pcs) | Mounting mode |
WHD20R-22 | Two channels temperature, humidity control | WH-3(2) | guide rail type:DIN35mm |
1-2 port：power supply ( AC/DC85-265v)
41-41 port: Alarm contact(When the heater is failure,working without as per the normal working condition, the corresponding indicator for heating-fault lights to give alarming.when the temperature exceeds the set value,the data of corresponding channel flashes. Reset when the meter itself fails).
17-18 port: the second Fan control(passive contact,connect with Fan)
15-16 port: the first Fan control(passive contact,connect with Fan)
21-22 port:the second Heating control(passive contact,connect with Heat equipment)
19-20 port:the first Heating control(passive contact,connect with Heat equipment)
30-31 port:RS485 communication port(modbus-rtu protocol)

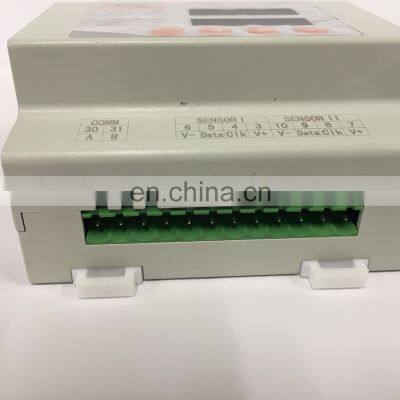

3-4-5-6 port:the first sensor (connect with temperature&humidity sensor. 3 connect to V+ ;4 connect to Clk;5 connect to Data;6 connect to V-)
7-8-9-10 port:the second sensor (connect with temperature&humidity sensor. 7 connect to V+ ;8 connect to Clk;9 connect to Data;10 connect to V-)
