Products Description

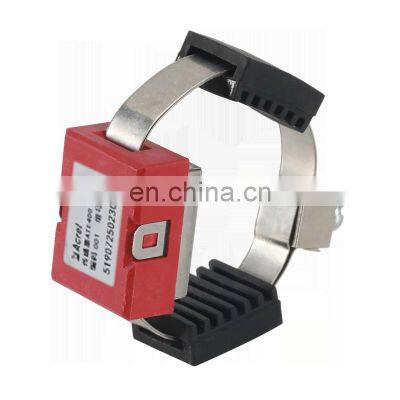

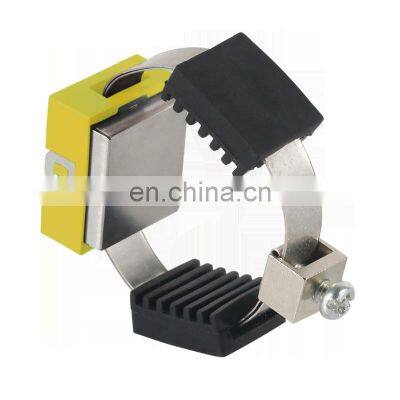

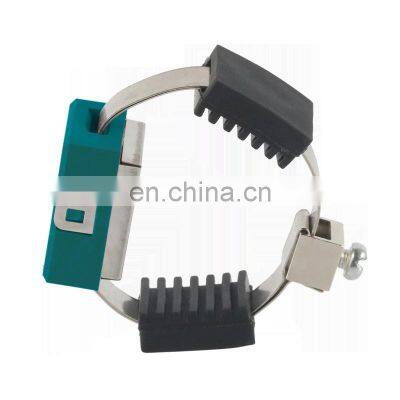

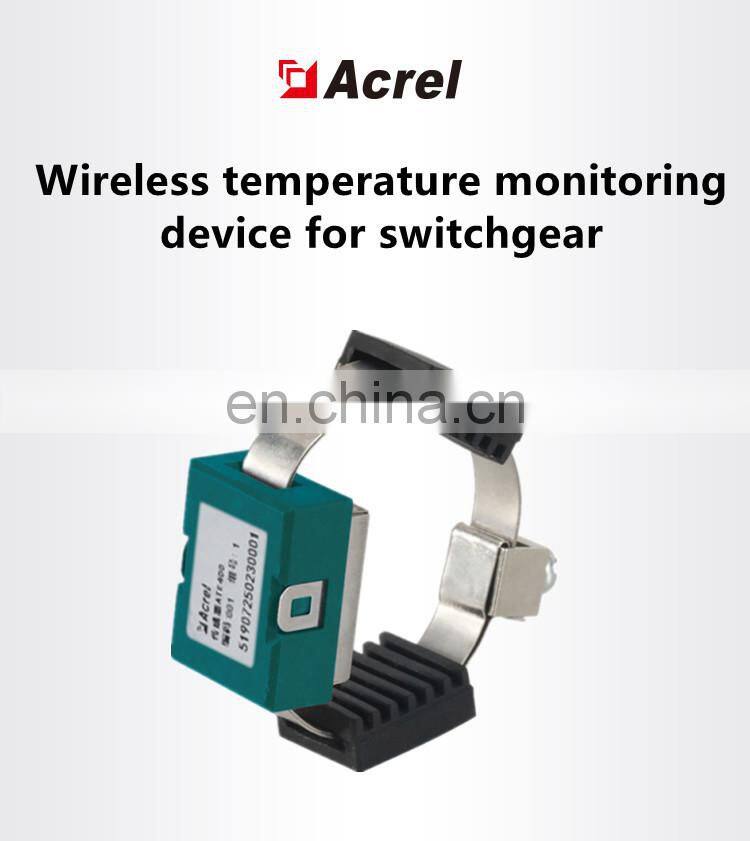

ATE400 passive 433Mhz wireless temperature sensor ATE series wireless temperature measuring sensor has been developed in compliance with Specification for Wireless Temperature.
Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart
switchgears, fixed switchgears and loop-net switchgears. It is also suitable for 0.4kV low-voltage switchgears such as fixed
switchgears and drawer switchgears. The wireless temperature sensors can be installed at any heating point in switchgears, the
device utilizes the wireless data transmission technology for real-time transmission of monitored temperature data. In addition,it
can be transmitted to display device or remote intelligent monitoring system.
Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart
switchgears, fixed switchgears and loop-net switchgears. It is also suitable for 0.4kV low-voltage switchgears such as fixed
switchgears and drawer switchgears. The wireless temperature sensors can be installed at any heating point in switchgears, the
device utilizes the wireless data transmission technology for real-time transmission of monitored temperature data. In addition,it
can be transmitted to display device or remote intelligent monitoring system.
● Wireless frequency: 470MHz; ● Dimension: 25.82*20.42*12.8mm
● Wireless transmission distance: 150m; ● Installation: Belt
● Fast sampling frequency: 15s; ● Accuracy: ±1℃
● CT-powered, starting current≥5A ● Temperature measuring range, -40℃~+125℃.
● Wireless transmission distance: 150m; ● Installation: Belt
● Fast sampling frequency: 15s; ● Accuracy: ±1℃
● CT-powered, starting current≥5A ● Temperature measuring range, -40℃~+125℃.
Firstly, take 2 pieces of alloy chips through the mounting hole of metal hasp, meanwhile fold the alloy chips and fix the metal hasp in the middle of alloy chips. Secondly, take the folded alloy chips through one silicone gasket, the core of ATE400 and another silicone gasket in turn.Thirdly, circle the whole alloy chips around the mounting position and tension the alloy chips, then tighten the screw on the metal hasp. Finally, subtract the excess alloy chips. The complete installation process is shown in Figures 1 to 4.
Technical Parameter
Details

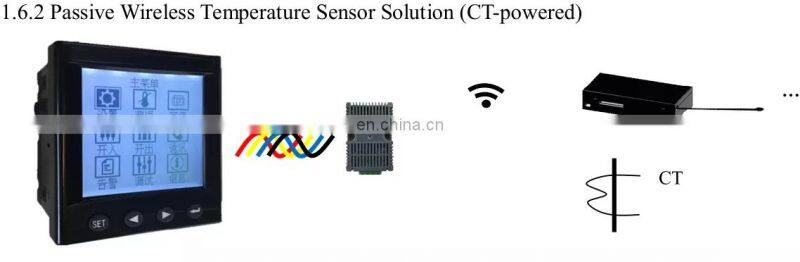

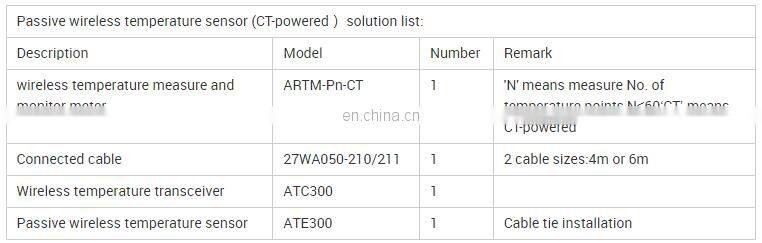

Solution Structure
Customized service
If you have any special requirements, for example another bandwidth and communication solution or special power supply and size ,please feel free to Contact Us.
