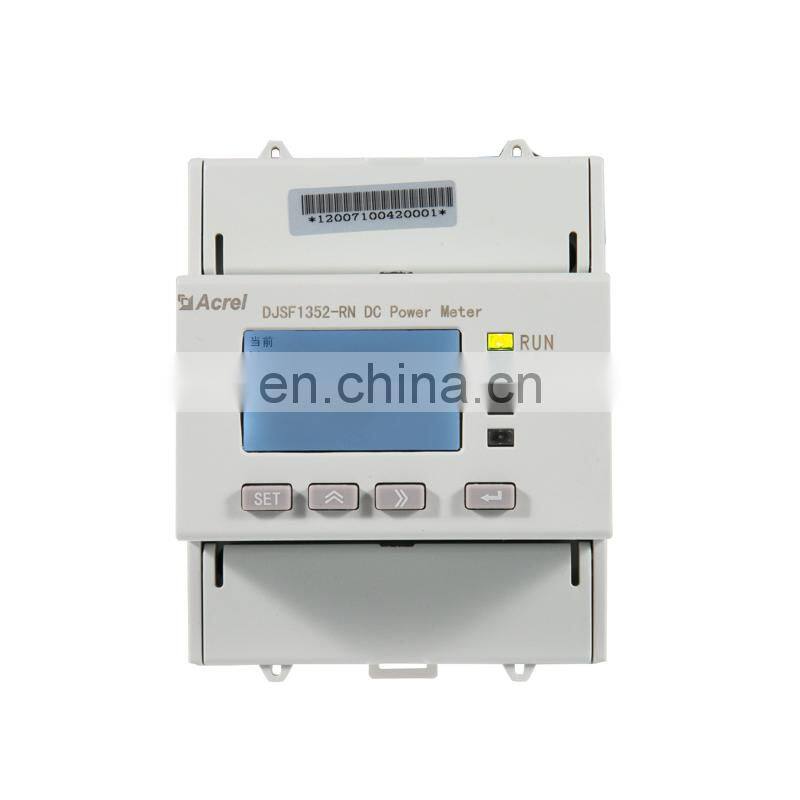

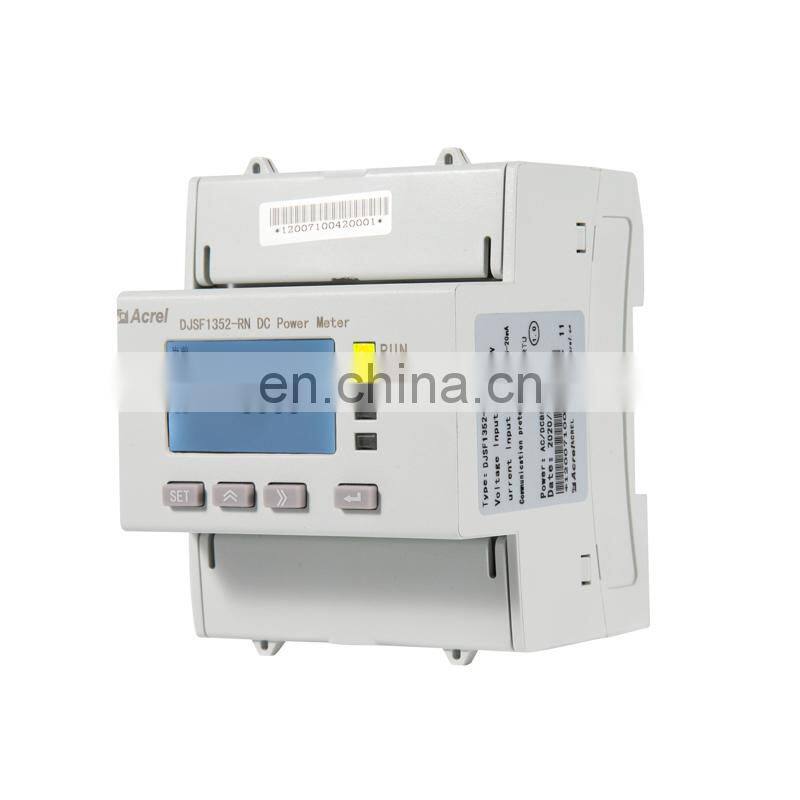

Solar DC Energy Meter for PV Plant Monitoring Acrel DJSF1352-RN DC Multifunctional Meter Used in PV Distribution System.
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Solar pv Monitor Metering Acrel DJSF1352-RN DC Multifunctional Meter With RS485 CommunicationNegotiableMOQ: 1 -
Photovoltaic PV Kwh Meter Monitor DJSF1352-RN DC Multifunction Digital 8 Digits LCD DC Energy Power MeterNegotiableMOQ: 1
-
Backlit LCD Generation Meter for Solar pv Two-way Measurement PZ72L-DENegotiableMOQ: 1
-
DC 300V 50A 100A 200A 400A Battery Monitor Digital Volt Meter Ammeter Battery Capacity Coulometer Power Watt-hour + Hall SensorNegotiableMOQ: 1
-
AC 20A 100A Ammeter Voltage Meter Digital Indicator Power Energy Voltmeter Ammeter Current Amps Volt Wattmeter Tester DetectorNegotiableMOQ: 1
Product Description
● Measurement: DC kWh, kVarh, Power, Current, Voltage and etc
● Current Rating: -/75mV (with Shunt); -/4~20mA (with Hall Sensor)
● Voltage Rating: 0~1000V DC

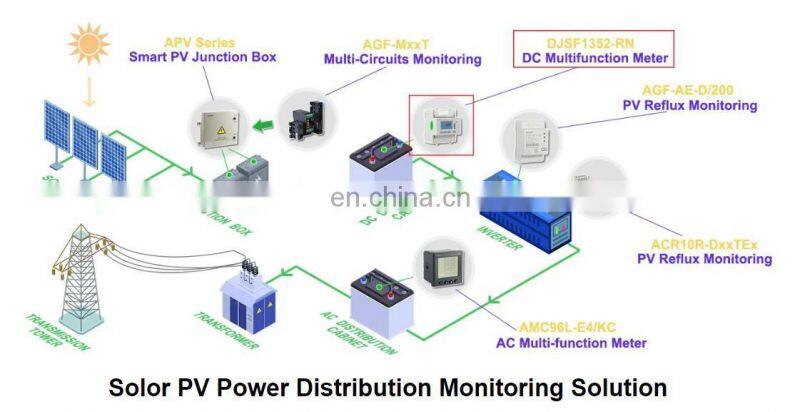

● Application: DC Battery; Charging Pile; Solar PV and etc
● Communication: RS485 (MODBUS-RTU)
● Extra Function: Dual DC Circuits Monitoring; Secondary RS485 (MODBUS-RTU);
● Display: LCD Display
● Dimension: 72*71*87.8mm (L*W*H)
● Installation: 35mm DIN Rail
● Power Supply: 85~265V AC/DC; 24V(±10%) DC; 48V(±10%) DC
● Standard&Certificate: CE
● Current Rating: -/75mV (with Shunt); -/4~20mA (with Hall Sensor)
● Voltage Rating: 0~1000V DC
● Application: DC Battery; Charging Pile; Solar PV and etc
● Communication: RS485 (MODBUS-RTU)
● Extra Function: Dual DC Circuits Monitoring; Secondary RS485 (MODBUS-RTU);
Built-in Bipolar Power Source (for Hall Sensors);
DO/DI Function
DO/DI Function
● Display: LCD Display
● Dimension: 72*71*87.8mm (L*W*H)
● Installation: 35mm DIN Rail
● Power Supply: 85~265V AC/DC; 24V(±10%) DC; 48V(±10%) DC
● Standard&Certificate: CE
Details

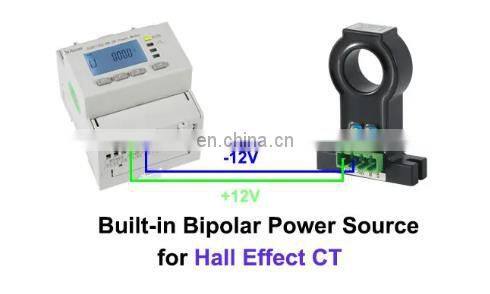

Built-in Bipolar Power Source
● Power Supply for Hall Effect CT

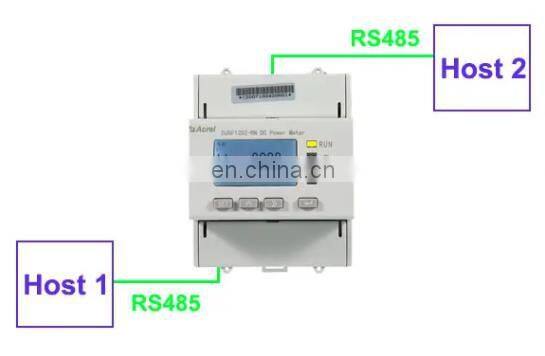

● Range: DC -12V ~ DC +12VOptional Dual RS485 Communication
● Protocol: MODBUS-RTU
● 1 RS485 (standard)
● 1 RS485 (standard)

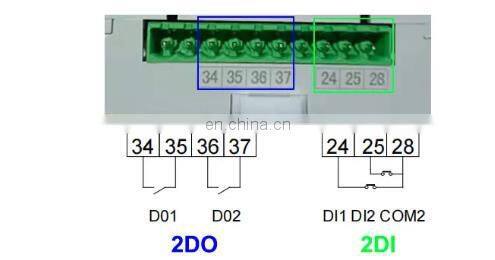

DO/DI Function
● 2 DO (2A/30V DC; 2A/250V AC)
● 2 DI (dry contact)
● 2 DI (dry contact)

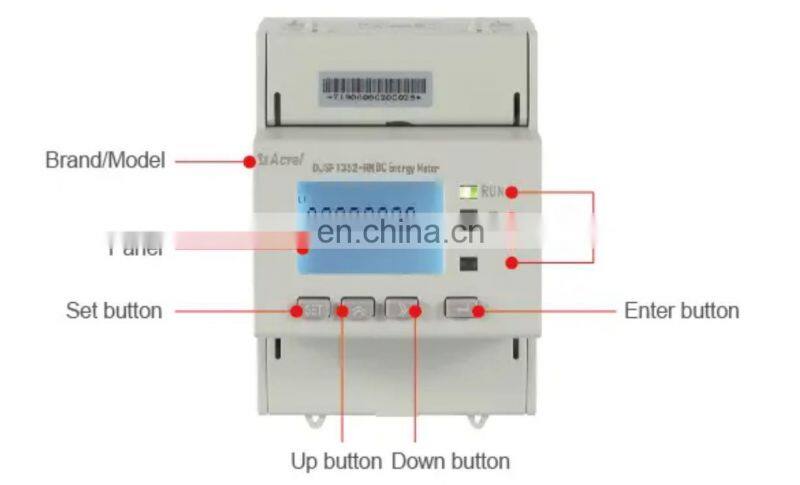

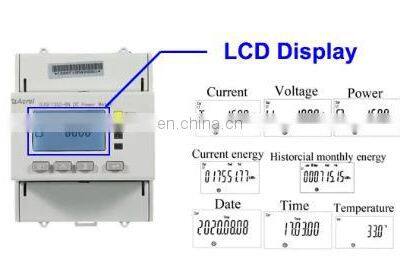

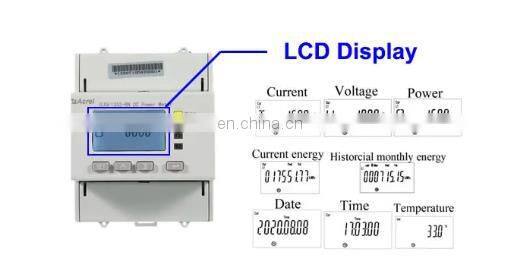

● Parameter Display
● Programming Interface
● Programming Interface

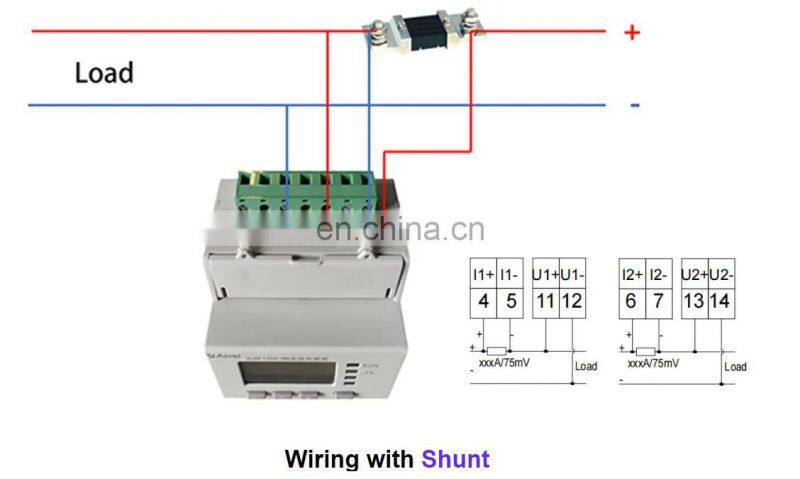

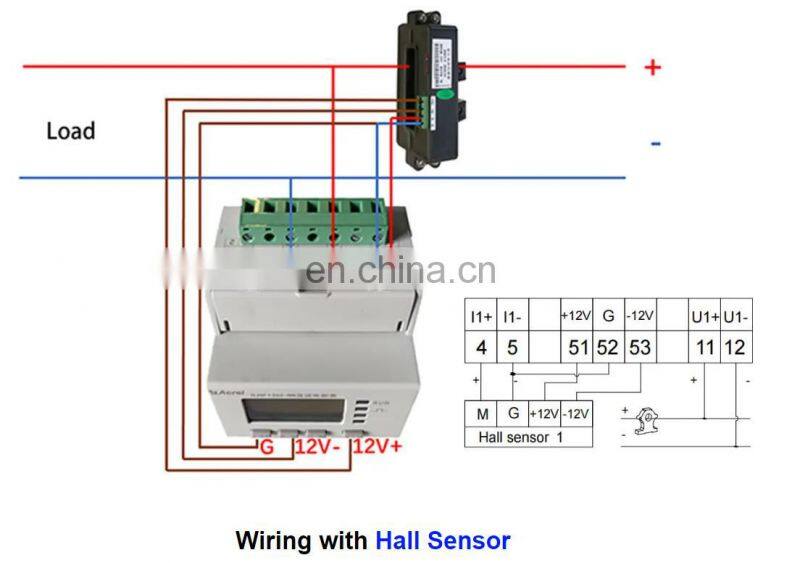

Wiring Illustration
